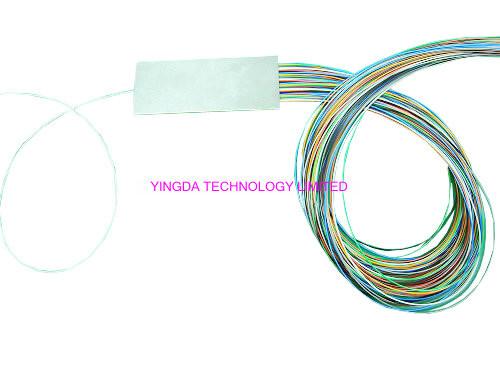

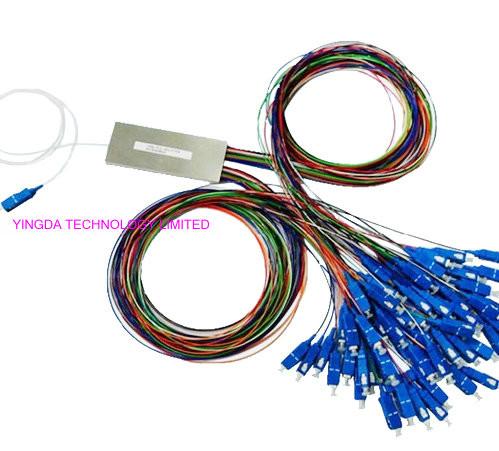

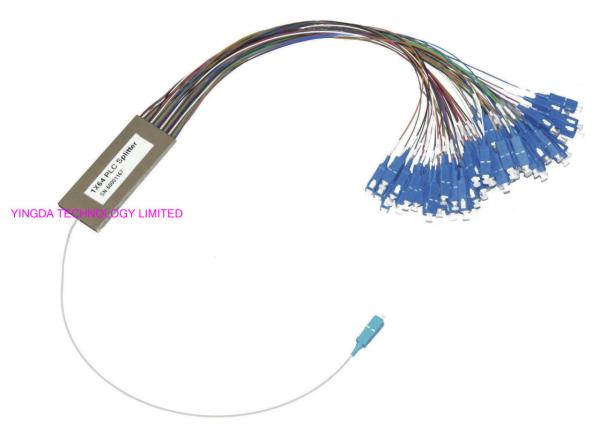

Mini Module Steel Tube 1X64 Fiber Optic PLC Splitter SC Blue Connectors
Mini Module Steel Tube 1X64 Fiber Optic PLC Splitter SC Blue Connectors
Mini Module Steel Tube 1X64 Fiber Optic PLC Splitter SC Blue Connectors
Mini Module Steel Tube 1X64 Fiber Optic PLC Splitter SC Blue Connectors
Mini Module Steel Tube 1X64 Fiber Optic PLC Splitter SC Blue Connectors
Mini Module Steel Tube 1X64 Fiber Optic PLC Splitter SC Blue Connectors
Mini Module Steel Tube 1X64 Fiber Optic PLC Splitter SC Blue Connectors
Mini Module Steel Tube 1X64 Fiber Optic PLC Splitter SC Blue Connectors
Specifications
Brand Name :
YINGDA
Model Number :
1x64 PLC Splitter
Certification :
ISO
Place of Origin :
china
MOQ :
100 pcs
Price :
1.1USD-4.58USD
Supply Ability :
10,000 pcs per month
Delivery Time :
5-8days after payment
Packaging Details :
2pc/ box, 20pcs/carton box
Standard :
Telcordia GR-1221 and GR-1209
split ratio :
1X64 mini splitter

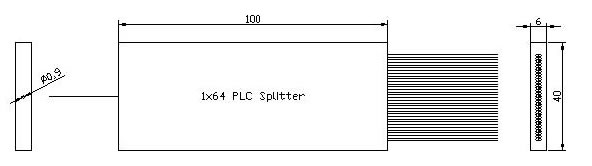

tube dimension :
100*40*6mm
cable diameter :
0.9mm
connector :
SC/UPC coupler
cable color :
input white, output: colorful
fiber type :
single mode G657A1
insertion loss :
20.8dB
Uniformity (Max.) :
2.odB
wavelength :
1260 - 1650 nm
PDL(Max.) :
0.4dB
Description

High Density 1 to 64 Mini Splitter PLC Mini Module Steel Tube, 1X64 Fiber Optic PLC Splitter SC Blue Connectors

Planar lightwave circuit (PLC) splitter is a type of optical power management device
that is fabricated using silica optical waveguide technology. It features small size,
high reliability, wide operating wavelength range and good channel-to-channel uniformity,
and is widely used in PON networks to realize optical signal power splitting.

YINGDA provides whole series of 1xN and 2xN splitter products that are tailored for
specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-
1999 requirements.

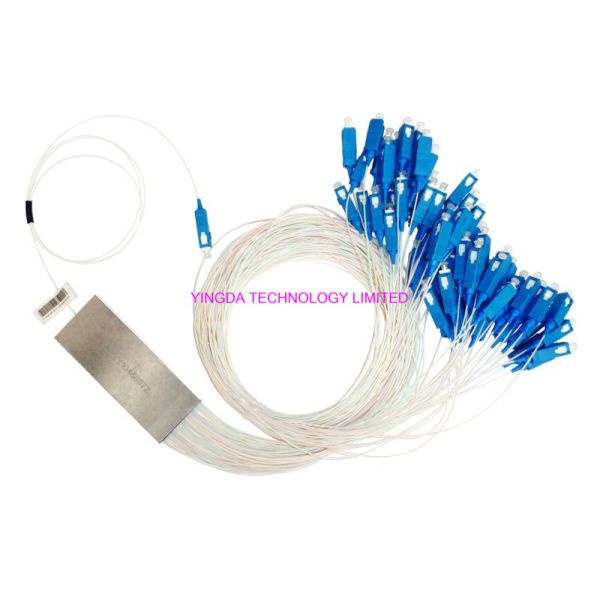

Mini Module Steel Tube 1X64 Fiber Optic PLC Splitter SC Blue Connectors

Features

  1. Bidirectional, Compact size
  2. Wide wavelength range
  3. Low insertion loss, Low PDL and High reliability
  4. High return loss and Good repeatability
  5. Excellent channel-to-channel uniformity
  6. Telcordia GR-1221-Core Compliant
  7. 1x2 ,1X4,1X8,..,1X128 configurations


Applications

  • LAN, WAN and Metro Networks
  • FTTH project & FTTX Deployments
  • GPON, EPON,CATV System
  • Fiber Optic Test Equipment
  • Data-base Transmit Broadband Net


Technical Specs for PLC Splitter with Fiber Optic Connectors


1xN splitter

Item 1x2 1x4 1x8 1x16 1x32 1x64 1x128
Fiber Type G.657A
Working Wavelength 1260nm~1650nm
Standard Insertion Loss(dB) ≤4.2 ≤7.6 ≤10.7 ≤14.0 ≤17.2 ≤20.8 ≤24.0
P-Grade Insertion Loss(dB) ≤4.0 ≤7.4 ≤10.5 ≤13.8 ≤17.0 ≤20.4 ≤23.7
Uniformity(dB) ≤0.6 ≤0.8 ≤0.8 ≤1.0 ≤1.5 ≤2.0 ≤2.0
PDL(dB) ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.4 ≤0.5
Wavelength Dependent Loss(dB) ≤0.6 ≤0.8 ≤0.8 ≤1.0 ≤1.5 ≤2.0 ≤2.0
Return Loss(dB) ≥50
Directivity(dB) ≥55
Operating Temp.Gange -40℃~+85℃
Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB.

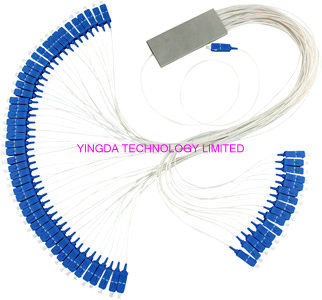

Mini Module Steel Tube 1X64 Fiber Optic PLC Splitter SC Blue ConnectorsMini Module Steel Tube 1X64 Fiber Optic PLC Splitter SC Blue Connectors

Ordering Information

PLCS - - - - - - -
Structure

Fiber

Type

 Package Input Output Length Connector
Structure 0101=1x1, 0202=2x2, ..., 0164=1x64, 0264=2x64
Fiber Type 1=G652D, 2=G657A1, 3=G657A2
Package Dimension A1, A2,...A12, D, E, F, K, U, G, C, T, R, X
Input Type

B=250μm Bare Fiber ,L=900µm Loose tube,

S=2.0mm, R=3.0mm, 0=Adapter
Output Type

B=250μm Bare Fiber ,

L=900µm Loose tube,

S=2.0mm,

R=3.0mm,

F=splitter, 0=Adapter
Pigtail Length

05=0.5m, 10=1.0m, 100=100m, 0=Adapter,

15/10=1.5m input/1.0m output,

X=Others
Connector Type

FU=FC/UPC, FA=FC/APC,

SU=SC/UPC, SA=SC/APC,

ST=ST/UPC,

LU=LC/UPC, LA=LC/APC,
MPO=MPO/UPC,

MPA=MPO/APC,

FU/FA=FC/UPC input / FC/APC output,

00=None,

X=Others

YINGDA WORKSHOP

Mini Module Steel Tube 1X64 Fiber Optic PLC Splitter SC Blue ConnectorsMini Module Steel Tube 1X64 Fiber Optic PLC Splitter SC Blue ConnectorsMini Module Steel Tube 1X64 Fiber Optic PLC Splitter SC Blue ConnectorsMini Module Steel Tube 1X64 Fiber Optic PLC Splitter SC Blue Connectors
