288 Cores Dome Fiber Optic Fusion Splice Closure Box 1Oval 6 Round Ports Aerial Manhole Duct
288 Cores Dome Fiber Optic Fusion Splice Closure Box 1Oval 6 Round Ports Aerial Manhole Duct
288 Cores Dome Fiber Optic Fusion Splice Closure Box 1Oval 6 Round Ports Aerial Manhole Duct
288 Cores Dome Fiber Optic Fusion Splice Closure Box 1Oval 6 Round Ports Aerial Manhole Duct
288 Cores Dome Fiber Optic Fusion Splice Closure Box 1Oval 6 Round Ports Aerial Manhole Duct
288 Cores Dome Fiber Optic Fusion Splice Closure Box 1Oval 6 Round Ports Aerial Manhole Duct
288 Cores Dome Fiber Optic Fusion Splice Closure Box 1Oval 6 Round Ports Aerial Manhole Duct
288 Cores Dome Fiber Optic Fusion Splice Closure Box 1Oval 6 Round Ports Aerial Manhole Duct
288 Cores Dome Fiber Optic Fusion Splice Closure Box 1Oval 6 Round Ports Aerial Manhole Duct
288 Cores Dome Fiber Optic Fusion Splice Closure Box 1Oval 6 Round Ports Aerial Manhole Duct
Specifications
Brand Name :
YINGDA
Model Number :
GJS-D023
Certification :
ISO,SGS
Place of Origin :
china
MOQ :
100 Pieces
Price :
16-40
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs per month
Packaging Details :
1pc /box, 4pcs /carton box
Delivery Time :
15 days
Material :
PP GF splice closure
Dimension :
Height: 515mm, Diamter:310mm
Max capacity :
288 fibers, ribbon 864 cores
Splice tray qty :
16 cores single layer, 32 cores dual fiber
splice tray material :
ABS gray

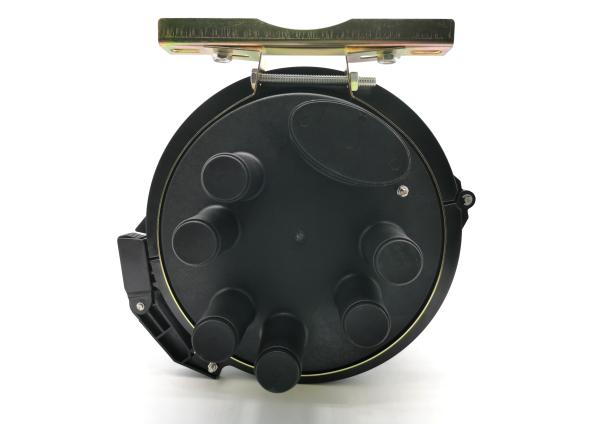

Cable port :
1 oval + 6 round ports
cable diameter :
5-38mm
box shape :
dome splice closure
splice tray qty :
12pcs
installation method :
aerial, pole, wall, duct, man hole
Description

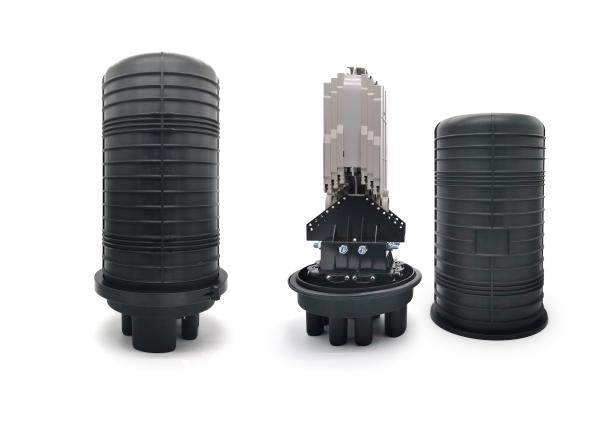

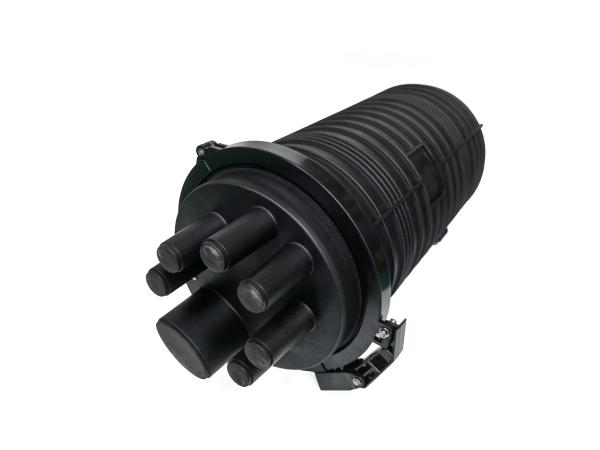

288 Cores Dome Fiber Optic Fusion Splice Closure Box 1Oval 6 Round Ports Aerial Manhole Duct

Fiber Optic Splice Closure ( FOSC GJS-D023 ) is large capcity of splice enclosures, which is widely used in fttx networks, it maximum can use 24pcs splice trays at both sides of the supporting plates in middle.

Feature:
1. For aerial,buried,wall and pipe wall people use wells
2. Ring using a special material that can be repeatedly opened,re-use
3. Splice tray easy to use page design
4. Quick way to make use of open sealed maintenance easier
5. Valve and grounding devices can be installed

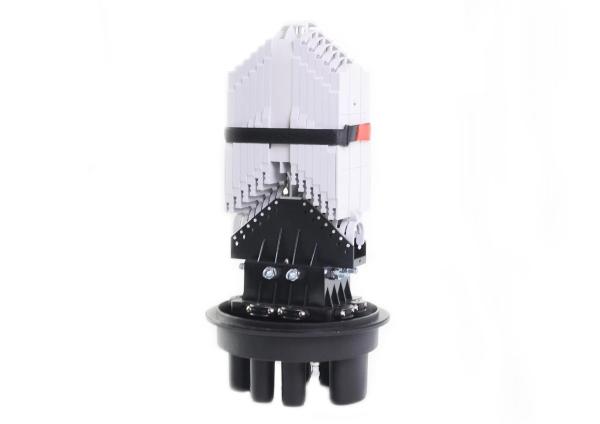

6. Advanced internal structure design
7. Easy to re-enter, it never requires re-entry tool it


Application

  • The Scope of application is :aerial,underground,duct, wall mounting, pipeline,hand hole, etc.
  • The ambient temperature ranges from -40 to 65℃.

Specification

Size (L×W×H) Cable ports Cable Diameter Max. Capacity Core capacity per tray

515×310mm

7pcs (1oval + 6round ports )

φ38mm×1

Bunchy: 288 cores

Ribbon: 864 cores

Bunch:24-288(cores)

Ribbon:up to 864(cores)

288 Cores Dome Fiber Optic Fusion Splice Closure Box 1Oval 6 Round Ports Aerial Manhole Duct

---------------------------------------------------------------------------------------------------------------------------------------------------

288 Cores Dome Fiber Optic Fusion Splice Closure Box 1Oval 6 Round Ports Aerial Manhole Duct

--------------------------------------------------------------------------------------------------------------------------------------------------

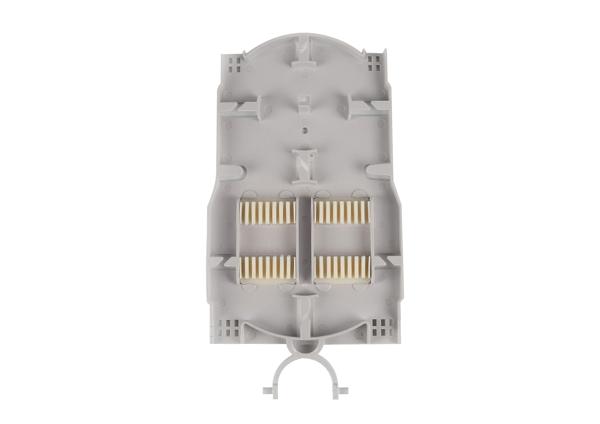

Fusion Splice Trays

Model No. Capacity Size( L×W×H)

FOST003

 Bunchy single: 24 cores

120×196×10mm
Ribbon

in normal:6 pieces

max.:12 pieces

288 Cores Dome Fiber Optic Fusion Splice Closure Box 1Oval 6 Round Ports Aerial Manhole Duct

----------------------------------------------------------------------------------------------------------------------------------------------------

Main Component
No. Name of components Quantity Usage
1 FOSC(cover) 1 set Protecting fiber cable splices in whole
2

Fiber optic

splice tray(FOST)

Fixing heat shrinkable protective

sleeve and holding fibers
3 Fiber holding tray 1 pcs

Holding fibers with protective

coat
4 Base 1 set Fixing internal and external structure
5 Plastic hoop 1 set Fixing between FOSC cover and base
6 Seal fitting 1 set Sealing between FOSC cover and FOSC bottom

288 Cores Dome Fiber Optic Fusion Splice Closure Box 1Oval 6 Round Ports Aerial Manhole Duct

Main accessories and special tools
7 Heat shrinkable protective sleeve(single)and Branching clip Protecting fiber splices Configuration as per capacity
8 Heat shrinkable protective sleeve Protecting fiber splices Configuration as per capacity
9 Nylon tie Fixing fiber with protective coat Configuration as per capacity
10 Earthing wire 1 piece Putting through between earthing device
11 Abrasive cloth 1 piece Scratching fiber calbes
12 Labeling paper 1 piece Labeling fiber
13 Metal hoop 1 set For wall mounting and pole hugging
14 Heat shrinkable fixing sleeve(mass) Fixing and sealing mass of fiber cable Configuration as per requirement
15 Aluminum-foil paper 1 piece Protect the bottom of FOSC

Pack information

4PCS/ CARTON BOX, CARTON SIZE:58×58×54.5CM, 15.6KG/CARTON
