8 Ports outdoor FTTH Fiber Optic Splitter Box for 1x8 Mini Module PLC splitter FDB0208B
8 Ports outdoor FTTH Fiber Optic Splitter Box for 1x8 Mini Module PLC splitter FDB0208B
8 Ports outdoor FTTH Fiber Optic Splitter Box for 1x8 Mini Module PLC splitter FDB0208B
8 Ports outdoor FTTH Fiber Optic Splitter Box for 1x8 Mini Module PLC splitter FDB0208B
8 Ports outdoor FTTH Fiber Optic Splitter Box for 1x8 Mini Module PLC splitter FDB0208B
8 Ports outdoor FTTH Fiber Optic Splitter Box for 1x8 Mini Module PLC splitter FDB0208B
8 Ports outdoor FTTH Fiber Optic Splitter Box for 1x8 Mini Module PLC splitter FDB0208B
8 Ports outdoor FTTH Fiber Optic Splitter Box for 1x8 Mini Module PLC splitter FDB0208B
Specifications
Brand Name :
YINGDA
Model Number :
FDB0208B
Certification :
ISO
Place of Origin :
china
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
Western Union, T/T, MoneyGram
Supply Ability :
5000pcs/month
Delivery Time :
5-8working days
Packaging Details :
1 pc / box, 20 pcs/ carton box
Material :
ABS+PC
Capacity: :
8Cores, FTTH Drop Cable 8pcs
Cable Ports: :
2in(Φ12mm), 8out(Φ2*3mm)
Dimension: :
205mm(W)×215mm(H) ×55mm(D)
Color: :
white or black
Adapter: :
8 pcs SC
Installation Method: :
Outdoor Wall Mount, Pole Mount
Splitter: :
PLC 1x4 (2pc); PLC 1x8(1pc)
Description

8 Ports outdoor FTTH Splitter box for 1x8 Mini Module PLC splitter FDB0208B

FDB0208B is designed to connect feeder / distribution cable to subscriber's drop cable using PLC splitter in FTTx networks. The rear tray is for splicing a fiber of feeder cable with PLC splitter and the front tray is for connecting subscriber's drop cable through adaptor plate on the tray. It is excellent sealing performance, reusable. Protection grade is IP 65. It can use SC or LC duplex adapter, and maximum micro splitter 1x8.

Features

  • 2inputs, 8outputs
  • Industrial standard user interface max. 8pcs SC/LC duplex
  • Made of high impact engineering plastic
  • Can accommodate 1x4, 1x8 PLC blockless splitter
  • Anti-UV, Ultra violet resistant and rainfall resistant
  • Outdoor wall mount or pole mount
  • Up to 8FTTH drops

Specification

Model FDB0208B
Dimension (W*D*H)mm 205*215*55
Max.Capacity PLC 1x4 (2pc); PLC 1x8(1pc)
Cable ports 2inputs (1more optional), 8outputs
Cable diameter(mm) In:Φ12, out:Φ2*3
Adapter Max. 8pcs SC

More pictures

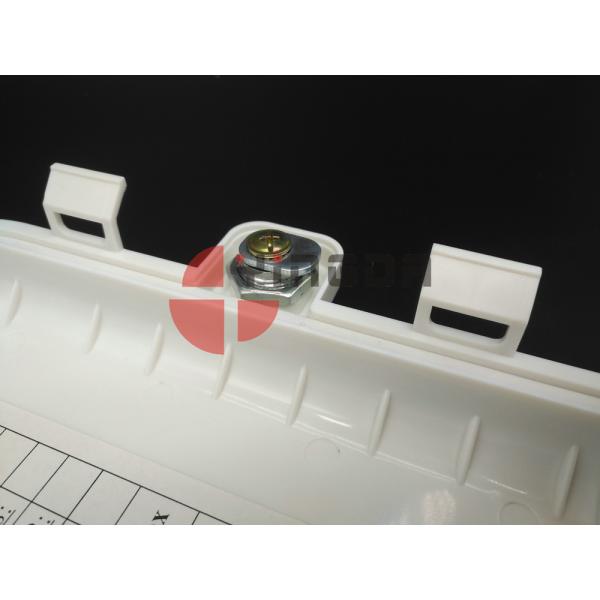

The box use a key and two buckles to close.

8 Ports outdoor FTTH Fiber Optic Splitter Box for 1x8 Mini Module PLC splitter FDB0208B8 Ports outdoor FTTH Fiber Optic Splitter Box for 1x8 Mini Module PLC splitter FDB0208B

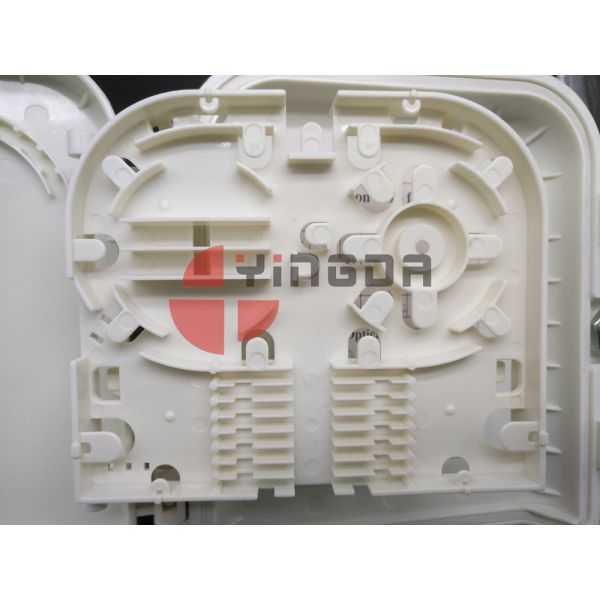

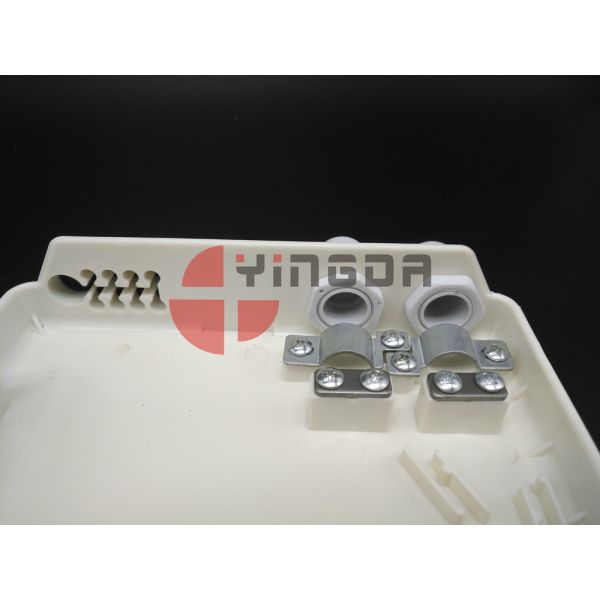

The splice panel, inputs and outlets show.

8 Ports outdoor FTTH Fiber Optic Splitter Box for 1x8 Mini Module PLC splitter FDB0208B8 Ports outdoor FTTH Fiber Optic Splitter Box for 1x8 Mini Module PLC splitter FDB0208B
