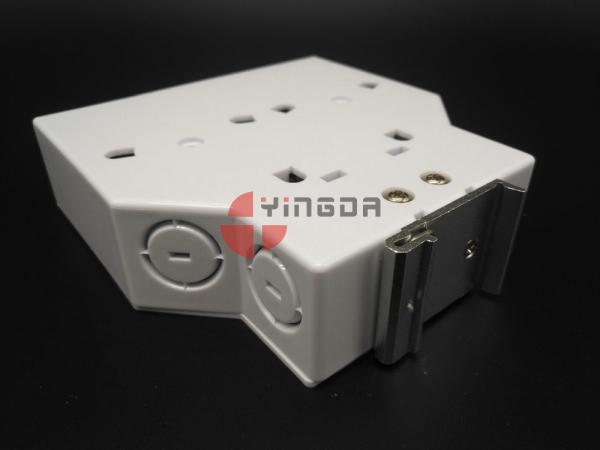

DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails
DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails
DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails
DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails
DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails
DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails
DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails
DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails
Specifications
Brand Name :
YINGDA
Model Number :
DIN-P
Certification :
ISO
Place of Origin :
china
MOQ :
100pcs
Price :
0.18USD-4.29USD
Payment Terms :
T/T, Western Union, L/C
Delivery Time :
5-8 working days
Material :
ABS+PC
Dimension :
130*133*35mm
Color :
White
Output :
12 SC simplex ports
Adapter plate :
cold rolled steel
Splice tray :
1 pcs
Flame rating :
UL94-V0
Application :
Indoor
Description

DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails

Fiber optic Din terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected.

Features:

  • Standard size, light weight and reasonable structure
  • Material: PC+ABS, adapter plate: cold rolled steel, it can be replace
  • Flame Rating: UL94-V0
  • Cable tray can be overturn, easy to manage.
  • Optional adapter and adapter plate.
  • Din guide rail, easy to install on rack panel in cabinet.

Specification

Model Adapter Adapter Quantity Max. Capacity
DIN-P12-SCS SC simplex 12 12
DIN-P6-SCS SC simplex/LC duplex 6/12 6
DIN-P6-SCD SC duplex 6 12
DIN-P6-STS ST simplex 6 6

Size

DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails

DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails

Product Pictures

DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and PigtailsDIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails

DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and PigtailsDIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails

  • The box consists of cover, 1pc of splice tray, box body, 1 pc of adapter plate.
  • Adapter plate is made of cold rolled steel, which can accomodate max. 12pcs SC simplex adapters.

DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and PigtailsDIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails

  • The splice tray can coil and splicing fibers.

DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and PigtailsDIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails

  • Insert the connector of pigtails into adapters, then splicing the pigtails and other cables on the splice tray.

DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and PigtailsDIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails

  • The cold steel rolled adapter panel can be taken out.

DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and PigtailsDIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails

  • Like the red circle marked, cable gland can be installed here.

DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and PigtailsDIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails

  • Actual measurement data.

More details

DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and PigtailsDIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails

DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and PigtailsDIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails

Application:

  • Telecommunications subscriber loop
  • Fiber to the home (FTTH)
  • LAN/WAN
  • CATV

Cable Manage:

DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and PigtailsDIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails

Packing informations

　 Carton Size G.W Remark
Inner box 16.5*15.5*4.5cm 0.4KG(around) With bubble pack
External box 48.5*47*35cm 24KG(around) 60sets/carton

Rack Frame spec(optional):

Name Model Size Capacity
Rack frame DRB-002 482.6*88*180mm 12set
