72 Port Fiber Optic ODF Optical fiber patch panel , Rack Mount Fiber Distribution Unit SC
72 Port Fiber Optic ODF Optical fiber patch panel , Rack Mount Fiber Distribution Unit SC
72 Port Fiber Optic ODF Optical fiber patch panel , Rack Mount Fiber Distribution Unit SC
72 Port Fiber Optic ODF Optical fiber patch panel , Rack Mount Fiber Distribution Unit SC
72 Port Fiber Optic ODF Optical fiber patch panel , Rack Mount Fiber Distribution Unit SC
72 Port Fiber Optic ODF Optical fiber patch panel , Rack Mount Fiber Distribution Unit SC
72 Port Fiber Optic ODF Optical fiber patch panel , Rack Mount Fiber Distribution Unit SC
72 Port Fiber Optic ODF Optical fiber patch panel , Rack Mount Fiber Distribution Unit SC
Specifications
Brand Name :
YINGDA
Model Number :
GB-A-72
Certification :
ISO
Place of Origin :
china
MOQ :
100PC
Price :
negotiable
Payment Terms :
T/T, Western Union
Delivery Time :
7days
Packaging Details :
1pc per box, 3pcs/carton box
material :
cold rolled steel
size :
480*250*1U
color :
white
output :
72pcs SC adapter
OEM :
ok
steel thickness :
1.2mm
Description

72 Port Fiber Optic ODF Optical fiber patch panel, Rack Mount Fiber Distribution Unit SC


Compliance

ISO/IEC11801:2008

ANSI/TIA/EIA 568-C.3

Features

19 “standard installation, suitable for a variety of rack, cabinet installation

Pull-out design, set field welding, welding wiring module integration

Each tray can be tabbed to install 12pcs of FC, LC duplex, SC, and ST adapters

Wide working space, Individual distribution panel for efficient work

OEM, customer logo can be print or with stickers

Fully load with adapter and pigtails is available at factory

Specification

Material Cold rolled steel with electrostatic spraying
Distribution Board Material ABS

Item Dimension (mm)

(length*width*height)

 1U 480*250*1U
2U 480*250*2U
3U 480*250*3U
4U 480*250*4U
Maximum bending space (mm) ≥30
Max Fibre Count 192
Adapter SC,FC,ST,LC duplex

Optical Performance

Insertion loss ≤0.3
Return loss ≥35

Product details

72 Port Fiber Optic ODF Optical fiber patch panel , Rack Mount Fiber Distribution Unit SC72 Port Fiber Optic ODF Optical fiber patch panel , Rack Mount Fiber Distribution Unit SC

welding tray is sliding out, can take by hand, there is plasic truck at both sides of the box internal.

each tray can do 12fibers fusion and storagem there is enough fusio plate and storage place.

72 Port Fiber Optic ODF Optical fiber patch panel , Rack Mount Fiber Distribution Unit SC72 Port Fiber Optic ODF Optical fiber patch panel , Rack Mount Fiber Distribution Unit SC

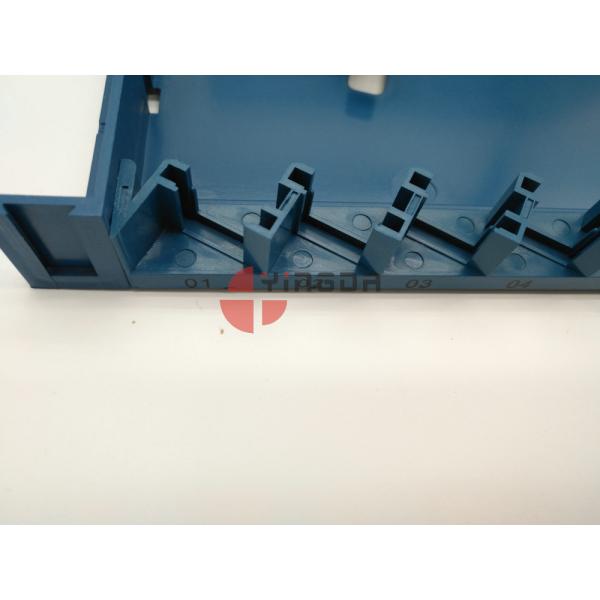

adapter outports, SC FC ST LC.E2000 connectors available.

there is figure mark to show the fiber channel, easy to operate and reuse

The welding tray is made of high quality ABS, long life time, brand new material

72 Port Fiber Optic ODF Optical fiber patch panel , Rack Mount Fiber Distribution Unit SC72 Port Fiber Optic ODF Optical fiber patch panel , Rack Mount Fiber Distribution Unit SC

plastic tray for pull in and out, front, back or side all with cable manangement places,easy to operate.

Front cover can add if need
