Specifications
Brand Name :
YINGDA
Model Number :
GJXFH-02B7
Certification :
ISO
Place of Origin :
china
MOQ :
10 km
Price :
Negotiable
Payment Terms :
T/T or western Union
Supply Ability :
500km / month
Delivery Time :
5 working days
Packaging Details :
2km / reel or cusotmized
fiber count :
2 Cores
strength member :
FRP non-metallic

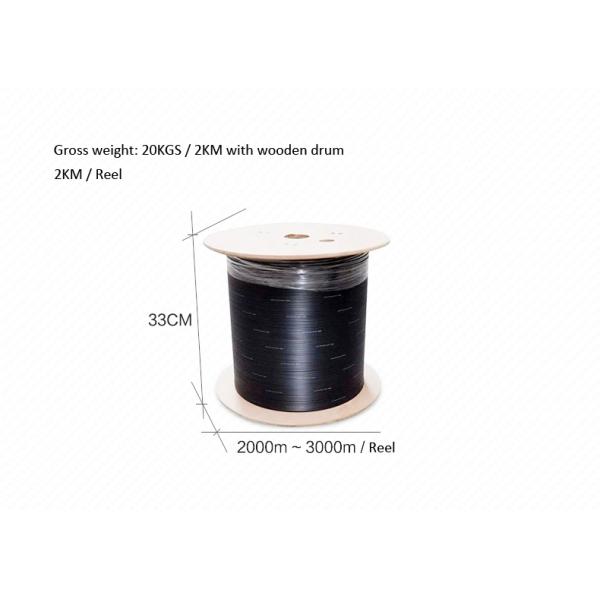

pack :
2KM / drum(reel) or 3km/ drum, 4km/drum
Name: :
butterfly indoor drop cable
cable color :
black
cable shape :
figure 8
Fiber type: :
G657A1 G657A2 G652D
Package: :
wooden drum and carton box
outer jacket :
LSZH
Description

Bow-type FRP Glass Fiber Optic FTTH Drop Cable G657A SM 2Fibers GJXFH Black


Description

Figure 8 fiber optic drop cable is a cable designed specifically for FTTH. It adopts double reinforcement
figure 8 structure, the optical fiber unit is positioned in the centre ,two parallel fiber reinforced plastics
FRP are placed at the two sides ,then the cable is completed with a black or color LSZH Sheath. This
drop cable can directly drop into the building household from the fiber optic splice closure. Particularly
it suitable to use together with fast connector(field installation connector), mechanical splice; also it
can be separate the suspended fiber core and then splice with others.

Features

  1. Special high bending radius fiber, provides wider bandwidth, enhance network transmission
  2. characteristics, easily reached 100M /S, realize broadband, television and telephone triple
  3. play.
  4. Two parallel reinforcement members ensure fiber optic cable with good compression perform
  5. ance, protect the fiber.
  6. Simple structure, light weight, strong practicability.
  7. The unique groove design, easy separation, convenient connection, simplify the installation
  8. and maintenance.
  9. Low smoke halogen-free flame retardant sheath, environmental protection


Application:
◆ Used as access building cable
◆ Used in indoor cabling especially used for FTTH

Cable structure:
FRP Glass Fiber Optic FTTH Drop Wire Cable G657A SM 2 Fibers GJXFH Black
Technical parameters

Cable code

Fiber
count

Cable
size
(mm)

Cable
weight
(kg/km)

Tensile(N)

Crush
(N/100mm)

Crush
resistance

Temperature
(°C)

Long
term

Short
term

Long
term

Short
term

Dynamic

Static

GJXFH-01

1

1.6*2.0

5

40

80

500

1000

30D

15D

-20~+60

GJXFH-01

1

2.0*3.0

8

40

80

500

1000

30D

15D

GJXFH-02

2

2.0*3.0

8.5

40

0

500

1000

30D

15D

GJXFH-04

4

2.0*3.0

9

40

80

500

1000

30D

15D

GJXFH-06

6

3.0*4.0

14

45

85

500

1000

30D

15D

GJXFH-08

8

3.0*4.0

16

50

90

500

1000

30D

15D

GJXFH-12

12

3.0*4.0

19

55

95

500

1000

30D

15D

Fiber type

G652D

50/125

62.5/125

G657A1

G657A2

OM3-150

OM3-300

OM4

Jacket material

PE

LSZH

Features:

Special low beng sensitivity fiber provodes high bandwidth

Two parallel FRP strength member ensures good performance
of crush resistance to protect the fiber

Simplex structure, light weight,high practicability

Low smoke zero halogen and flame retardant sheath



FRP Glass Fiber Optic FTTH Drop Wire Cable G657A SM 2 Fibers GJXFH BlackFRP Glass Fiber Optic FTTH Drop Wire Cable G657A SM 2 Fibers GJXFH BlackFRP Glass Fiber Optic FTTH Drop Wire Cable G657A SM 2 Fibers GJXFH BlackFRP Glass Fiber Optic FTTH Drop Wire Cable G657A SM 2 Fibers GJXFH Black
