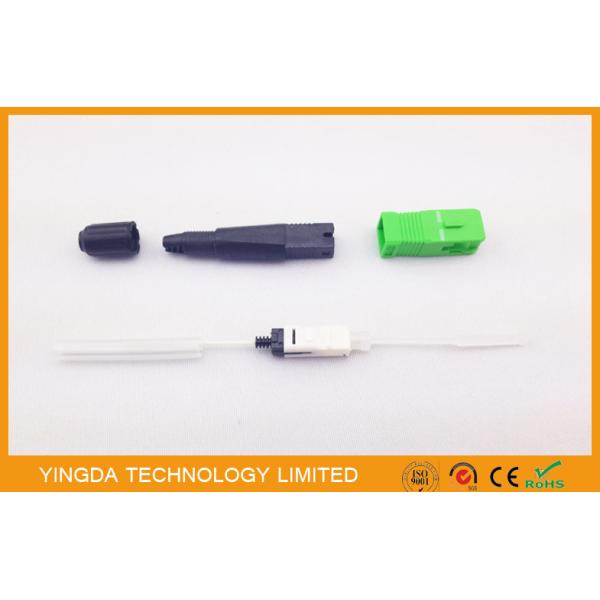

FTTH SC FC LC ST Fast Field Installable Connector, Fusion Splice-on Connector SC / APC
FTTH SC FC LC ST Fast Field Installable Connector, Fusion Splice-on Connector SC / APC
FTTH SC FC LC ST Fast Field Installable Connector, Fusion Splice-on Connector SC / APC
FTTH SC FC LC ST Fast Field Installable Connector, Fusion Splice-on Connector SC / APC
FTTH SC FC LC ST Fast Field Installable Connector, Fusion Splice-on Connector SC / APC
FTTH SC FC LC ST Fast Field Installable Connector, Fusion Splice-on Connector SC / APC
FTTH SC FC LC ST Fast Field Installable Connector, Fusion Splice-on Connector SC / APC
FTTH SC FC LC ST Fast Field Installable Connector, Fusion Splice-on Connector SC / APC
FTTH SC FC LC ST Fast Field Installable Connector, Fusion Splice-on Connector SC / APC
FTTH SC FC LC ST Fast Field Installable Connector, Fusion Splice-on Connector SC / APC
FTTH SC FC LC ST Fast Field Installable Connector, Fusion Splice-on Connector SC / APC
FTTH SC FC LC ST Fast Field Installable Connector, Fusion Splice-on Connector SC / APC
FTTH SC FC LC ST Fast Field Installable Connector, Fusion Splice-on Connector SC / APC
FTTH SC FC LC ST Fast Field Installable Connector, Fusion Splice-on Connector SC / APC
Specifications
Brand Name :
YINGDA
Model Number :
YD-FS-SCA-09
Certification :
ISO
Place of Origin :
china
MOQ :
500PCS
Price :
Negotiable
Payment Terms :
T/T or western Union
Supply Ability :
10,000pcs per day
Delivery Time :
3-5 working days after get payment
Packaging Details :
5pcs / blister box,1000pcs / carton box
fiber type :
SMF-28e corning fiber
cable type :
0.9,2.0,3.0mm cable
connector :
SC / APC, LC FC ST available
cable mode :
single mode OS1
Connector house :
green
insertion loss :
<0.3dB
Tools :
fusion splicer machine, cotton, alcohol,fiber cleaver
application :
FTTH
product name :
sc fiber connector,sc fiber optic connector,fiber cable connectors,field installable connector
Description

FTTH SC FC LC ST Fast Field Installable Connector, Fusion Splice-on Connector SC / APC

Advantage:

1. 1000% test in house before delivery

2. 0.9,2.0,3.0mm suitable

3. 5pcs/set in bliseter box

4. each box with english user manual

5. house color: blue, green

6. SC/APC,SC/UPC,FC/UPC can be choosed

6. Productivity:10,000 pcs / day

Description

SC/APC Fusion splice-on connector is is optical fiber type quick connector, but its splicing point

inside the connector end, equivalently eliminate the pigtails when splicing.The advantage is no

need additional protection after splice, such as splice tray,splice closure,distribution box.In contract

to the design of mechanical splice connector, it save V-groove mechanical connector maintenance

and operation cost and durable, which overturns the concept that high cost of splice machine

and do not apply to FTTH construction.

Application

  • FTTH optic fiber terminal connection

Features

  1. Low operation cost, high efficiency
  2. Quickly achieve the on-site termination connection
  3. Easy operation or use
  4. Pressure welding parts adopt new unique structure design, installation without glue injectino, no grinding, no consumables
  5. High installation quality, high success rate and installation fast, etc
  6. Easy to carry
  7. Accurate mechanical dimensions
  8. All materials conforms to ROHS

Specification

Item

Parameter

Cable

3.1*2.0mm drop cable

Fiber diameter

125um(G657A2 bare fiber)

Tight buffer diameter

250um

Fiber type

Single mode OS1 9/125um

Insertion loss

≤0.3dB

Return loss

≤-50dB

Bare fiber solid tightness

＞250g

Working temperature

-40℃-+80℃

Tensible strength

60N(5kgs for 2mins)

Drop test

4 meters high cement floor direction at a time,in total 3times

Order information:

1. fiber inside: 0.9mm, bare fiber 250um

2. application cable diameter: 0.9mm, 2.0mm, 3.0mm

Package information

FTTH SC FC LC ST Fast Field Installable Connector, Fusion Splice-on Connector SC / APCFTTH SC FC LC ST Fast Field Installable Connector, Fusion Splice-on Connector SC / APCFTTH SC FC LC ST Fast Field Installable Connector, Fusion Splice-on Connector SC / APCFTTH SC FC LC ST Fast Field Installable Connector, Fusion Splice-on Connector SC / APC
