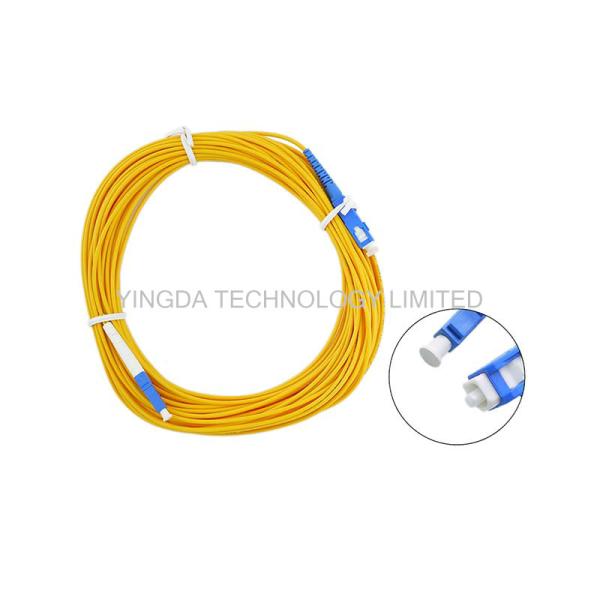

LC / SC CATV Fiber Optic Patch Cord Cable SM SX 15 Meter / Fiber Optic Assemblies
LC / SC CATV Fiber Optic Patch Cord Cable SM SX 15 Meter / Fiber Optic Assemblies
LC / SC CATV Fiber Optic Patch Cord Cable SM SX 15 Meter / Fiber Optic Assemblies
LC / SC CATV Fiber Optic Patch Cord Cable SM SX 15 Meter / Fiber Optic Assemblies
LC / SC CATV Fiber Optic Patch Cord Cable SM SX 15 Meter / Fiber Optic Assemblies
LC / SC CATV Fiber Optic Patch Cord Cable SM SX 15 Meter / Fiber Optic Assemblies
LC / SC CATV Fiber Optic Patch Cord Cable SM SX 15 Meter / Fiber Optic Assemblies
LC / SC CATV Fiber Optic Patch Cord Cable SM SX 15 Meter / Fiber Optic Assemblies
Specifications
Brand Name :
YINGDA
Model Number :
LCSC-SMSX-15-1.8mm
Certification :
ISO SGS ROHS
Place of Origin :
china
MOQ :
500 pcs
Price :
0.36USD-30USD
Supply Ability :
15,000 pcs / day
Delivery Time :
5-8days after payment

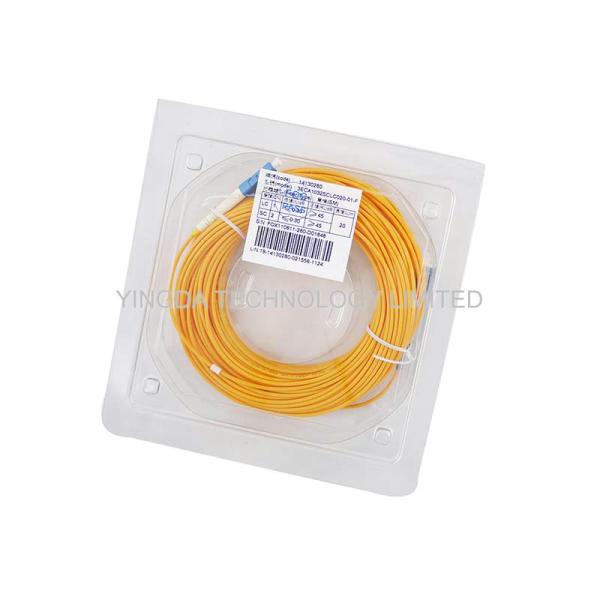

Packaging Details :
1 pc / plastic bag
connector :
LC to SC
fiber count :
Simplex
insertion loss :
< 0.2 dB
return loss :
>55dB
Fiber length :
15meter
cable diameter :
1.8 mm
cable color :
yellow
connector color :
blue
product name :
fiber cable,fiber optic patch cables,fiber optics patch cords,fiber optic jumpers,fiber optic jumper cables,fiber optik patch cord
Description

LC / SC Fiber Optic Patch Cord SM SX 15Meter, LSZH, SC / LC Optic Fiber Cable Assembly

Fiber optic patch cord is one of most commonly used components in fiber optic network. fiber optic

patch cords sometimes is also called fiber optic jumper or fiber optic patch cables. generally there

are two types of fiber optic patch cords: single mode fiber optic patch cords and multimode fiber optic

patch cords. here the word mode means the transmitting mode of the fiber optic light in the fiber optic

cable core. usually single mode fiber optic patch cord are with 9/125 fiber glass and is yellow jacket

color, multi mode fiber optic patch cord are with 50/125 or 62.5/125 fiber glass and is orange color.

LC is the short form of Lucent Connector, LC fiber patch cord connector is a push and latch structure,

with plastic housing and accurate 1.25mm ceramic ferrule. LC type is a popular kind of small form fiber

optic patch cord which reduce the space and it is widely used for densely installation.

SC fiber optic patch cord was invented by the Japanese company NTT. It is one of the most widely

used fiber optic patch cords. SC fiber optic patch cord features low cost , simplicity as well as good

durability, SC fiber optic patch cords is with a locking tab on the cable termination, it is a push and pull

type fiber optic connector.

Features

  • Low insertion loss
  • Repeat ability
  • High return loss
  • Mutual Insert performance
  • Good temperature stability
  • Strong tensile property
  • Cheap multimode fiber price,short distance transmission
  • Wide transmission bandwidth

Specification

Item

Standard,Master

Connector type

LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,

FC/APC,LC/APC.MU/APC

Duplex MTRJ/Female, MTRJ/Male

Fiber Type

9/125 SMF-28 or equivalent (Singlemade) OS1

50/125, 62.5/125 (Multimode) OM2&OM1

50/125, 10G (Multimode) OM3

Cable Type

Simplex, Duplex (Zipcord)

Φ3.0mm, Φ2.0mm, Φ1.8mm

Φ1.6mm PVC or LSZH

Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH

Polishing Manner

UPC,SPC,APC (8°& 6°)

Insertion Loss

≤ 0.1dB (For Singlemode Master)

≤ 0.25dB (For Singlemode Standard)

≤ 0.25dB (For Multimode)

Tested by JDS RM 3750


Return Loss (For Singlemode)

UPC ≥ 50dB

SPC ≥ 55dB

APC ≥ 60dB (typ.65dB)

Tested by JDS RM3750

Repeatability

±0.1dB

Operating temperature

-400C to 850C


Geometry Requirement

(For Singlemode)

Ferrule Endface Radius

7mm ≤ R ≤ 12mm (For APC)

10mm ≤ R ≤ 25mm (For Standard)

Apex Offset ≤ 30 μm (For Master)

Apex Offset ≤ 50 μm (For Standard)

Undercut -50nm ≤ U ≤ 50nm

Tested by DORC ZX-1

Application

  1. Fiber communication system
  2. Fiber access network
  3. Data transmission
  4. CATV
  5. LAN
  6. Test equipment
  7. Optical fiber sensor

Order information

1. Connector type: FC, ST, SC, LC, MU, MPO, E2000, MTRJ, SMA,

2. End face: UPC PC APC

3. Cable diameter: Ф0.9mm, Ф1.6mm,Ф1.8mm, Ф2mm, Ф2.4mm, Ф3mm.

4. Fiber count: simplex, duplex, 4 core, 6 core, 8 core, 12 core or customer specified

5. Fiber types: G652B, G652D, G655, G657A1, G657A2, 50/125,um 62.5/125um,

OM3 (50/125-150), OM4 (50/125-300) etc.

6. Connector housing color: Blue (single mode PC, UPC connector), beige, grey (multimode connector),

green (APC connector), aqua (OM3)

7. Boot color : grey,blue, green, white, red, black, green

8. Cable jacket: PVC, LSZH

9. Cable length: customized
