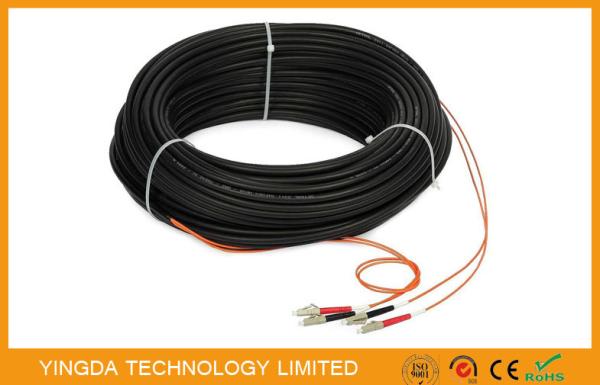

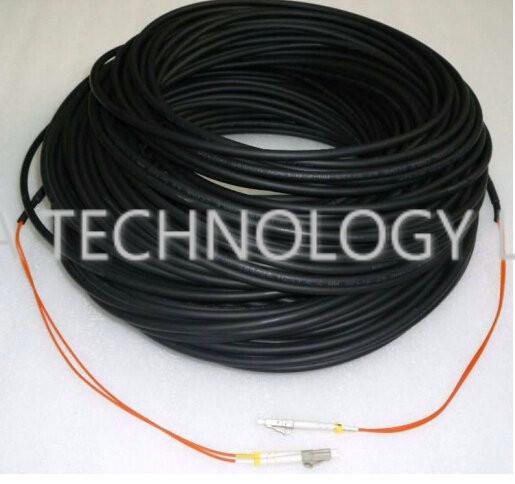

Outdoor DLC / PC Fiber Optic Patch Cord MM 7.0mm Non - armored BBU Base Station
Outdoor DLC / PC Fiber Optic Patch Cord MM 7.0mm Non - armored BBU Base Station
Outdoor DLC / PC Fiber Optic Patch Cord MM 7.0mm Non - armored BBU Base Station
Outdoor DLC / PC Fiber Optic Patch Cord MM 7.0mm Non - armored BBU Base Station
Outdoor DLC / PC Fiber Optic Patch Cord MM 7.0mm Non - armored BBU Base Station
Outdoor DLC / PC Fiber Optic Patch Cord MM 7.0mm Non - armored BBU Base Station
Specifications
Brand Name :
YINGDA
Model Number :
FPCLC-MMDX-20-15
Certification :
ISO SGS ROHS
Place of Origin :
china
MOQ :
500 pcs
Price :
0.36USD-30USD
Payment Terms :
Western Union, T/T
Supply Ability :
60,000 pcs per month
Delivery Time :
7days after payment
Packaging Details :
1 pc/ box, 200pcs / carton box
connector :
LC/PC
fiber count :
2 cores
insertion loss :
<0.3dB
Cable length :
customized
Cable diameter :
7.0 mm
fiber type :
MM OM2
package :
wooden drum
cable color :
black / Orange
Appliatoin :
base station
product name :
fiber cable,fiber optic patch cables,fiber optics patch cords,fiber optic jumpers,fiber optic jumper cables,fiber optik patch cord
Description

Outdoor DLC / PC 2 Fibers MM 7.0mm Non-armored BBU Base Station

Patch Cord Waterproof Cable

Duplex Base Station Far Transmission Fiber Optic Patch Cable is kind of Indoor/Outdoor

patch cord, built on LSZH cables with 7.0mm or 4.8mm diameter, with water blocking

aramid yarns and UV resistant black out jacket.

Features

  • Easy,reliable and cost-effective installation
  • The connectors of Slide-A is Duplex LC and Side B can be LC, SC or FC
  • Thread structure guarantees the trusted connection
  • IP65 protection,salt-mist proof

Fiber Connector Performance

Test item

A

B

Operating wavelength//nm

1310/550nm

Connector

LC

LC

FC

SC

IL

≤0.3dB

≤0.2dB

≤0.2dB

≤0.2dB

Durability

≤0.2dB

RL

≥40dB

Operating temperature

-40 ~+80°C

Tensile strength

≥300N

Base Sation outdoor cable specification

Fiber

count

Cable

diameter

(mm)

Cable

weight

(kg/km)

Tensile(N)

Crush

(N/100mm)

Mini Bend

radius(mm)

Temperature

range(°C)

Long

term

Short

term

Long

term

Short

term

Dynamic

Static

2

7.0

42.3

200

400

1100

2200

20D

10D

-40 ~+80°C

Note:

1. All the values in the table,which are for reference only,are subject to charge without notice.

2. D is the outer diameter of the round cable

3. The tensile and crush values in the table are minimum.

4. Outer cable jacket and inner cable jacket are all LSZH material

Application

Withe the development of optical communication technology,optical connector is used from

indoor to outdoor. Especially in 3G/4G communication network,base-station is applied

more and more, building Base Band Unit (BBU) connects Radio Remote Unit (RRU)

is used for duplex outdoor cable. Our outdoor cable connector is the leading solution

for harsh environment.

Order information

Common type no armoured for BBU

Optical Cable Assembly, DLC/PC,DLC/PC,Single mode 9/125um (multimode 62.5/125 50/125um),

GYFJH 2A1a(LSZH),7.0mm, 2 Cores, 0.03m/0.34m,2mm, Outdoor protected branch cable

(armored type) Length= 10m, 20m xxx Meters

Outdoor DLC / PC Fiber Optic Patch Cord MM 7.0mm Non - armored BBU Base Station
