12 Core Plastic Optical Terminal Box, 12 Port Optical Fiber Termination box
12 Core Plastic Optical Terminal Box, 12 Port Optical Fiber Termination box
12 Core Plastic Optical Terminal Box, 12 Port Optical Fiber Termination box
12 Core Plastic Optical Terminal Box, 12 Port Optical Fiber Termination box
12 Core Plastic Optical Terminal Box, 12 Port Optical Fiber Termination box
12 Core Plastic Optical Terminal Box, 12 Port Optical Fiber Termination box
12 Core Plastic Optical Terminal Box, 12 Port Optical Fiber Termination box
12 Core Plastic Optical Terminal Box, 12 Port Optical Fiber Termination box
Specifications
Brand Name :
YINGDA
Model Number :
FTB-308L
Certification :
ISO
Place of Origin :
china
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
T/T or western Union
Supply Ability :
50,000pcs per month
Delivery Time :
3-5 days
Packaging Details :
1 pc / box,10 pc/carton box
material :
plastic ABS PC
dimension :
25*23*7cm
capacity :
12 fibers
adapter :
SC FC LC ST E2000
Working temperature: :
-40～+85 (℃)
Fiber optic type :
single-mode, multimode
outport :
12pcs drop cable output
inport :
3cable ports
Description

12 Core Plastic Optical Terminal Box, 12 Port Optical Fiber Termination box

Sell point:

  1. Plastic material, light save cost

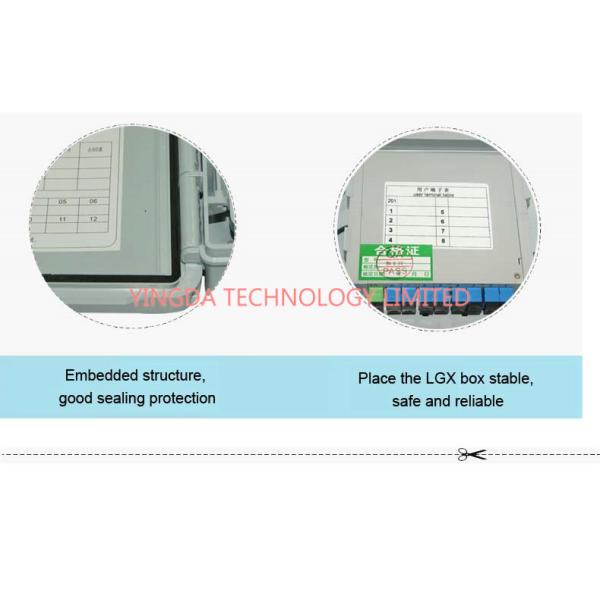

  2. 1 x LGX cassette can be install, inside use 1x8 PLC splitter
  3. 1layer to split light, the downwords is cable distribution box function
  4. By sea or by air shipment available
  5. fully load with splitter and pigtails, adaptors available on request
  6. MOQ: 50 PCS

Fiber Optic Termination Box is used at the junction point where armored cable and indoor

FTTH drop cable in optical fiber access network. The box can be wall mounting or pole

mounting, indoor and outdoor use; connect and adjust the armored and drop cable by

the SC fast field installation connector and SC fiber optic adapters.

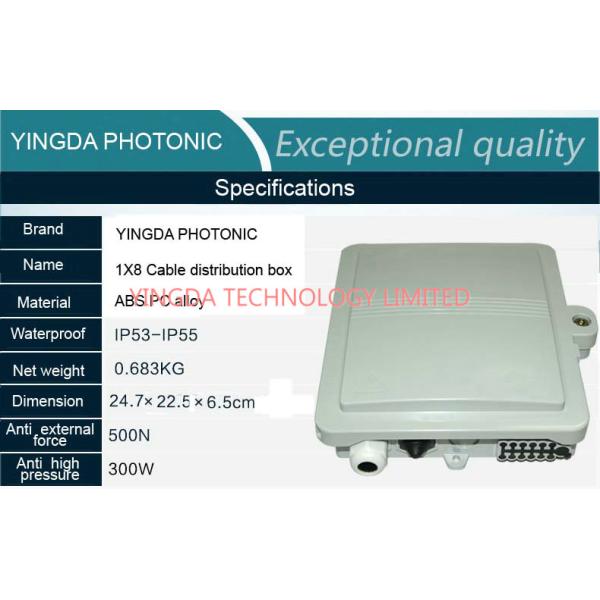

Specification

Working temperature

-40℃~+70℃

storage temperature

-40℃~+70℃

humidity

≤90%(+30℃)

atmospheric pressure

62Kpa -106Kpa

insulation resistance between the

grounding device and the box metal parts

≥2X104MΩ/500V (DC)

withstand voltage between the grounding

device and the box metal parts

≥3000V DC /1min

insertion loss

IL = 0.3dB (PC); IL = 0.3dB (APC type)

return loss

RL = 40dB (PC type); RL = 50dB (UPC);

RL = 60dB (APC type)

interchangeability

< 0.2dB

Cable port

3in, 12 out

Size

25*23*7cm

Material

ABS PC alloy

;

Sales and insertion loss: IL = 0.3dB (PC); IL = 0.3dB (APC type);

Sales return loss: RL = 40dB (PC type); RL = 50dB (UPC); RL = 60dB (APC type);

Features

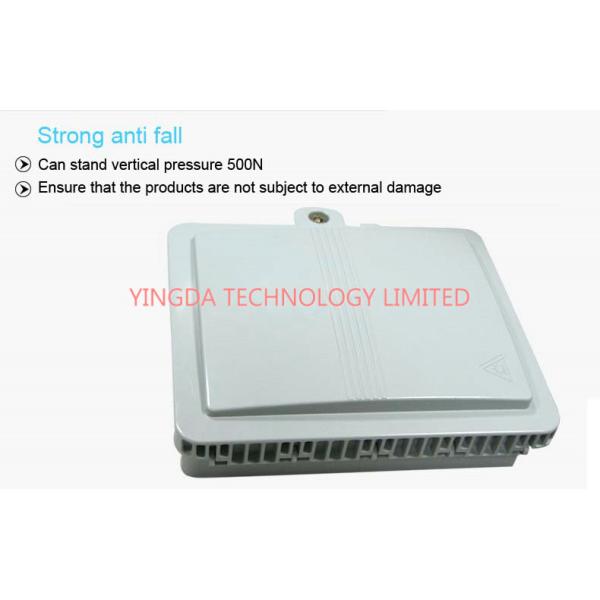

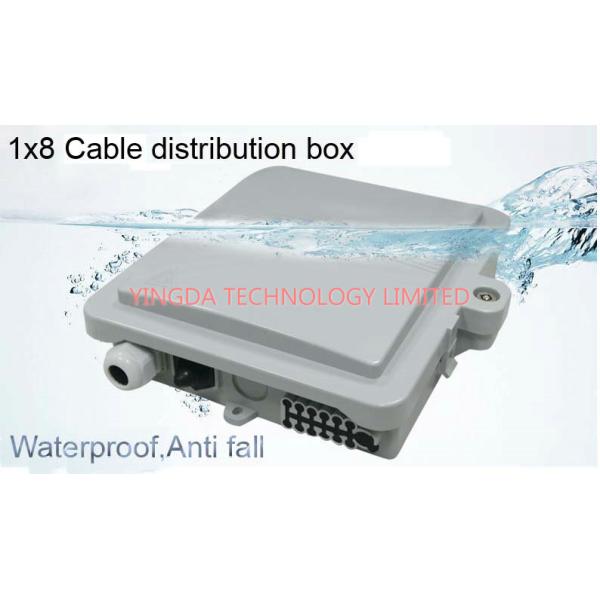

1. Made of high-quality flame- retardant engineering plastics, good sealing performance and

weather resistance, suitable for indoor and outdoor wall mount, pole mount, protection

grade reaches IP55;

2. Special drop cable fixing position, ensure drop cabled fixed pulling out force ≥ 20N;

3. Dedicated passing hole for fast field installation connector(quick connector) , drop calbe

termination with quick connector can be carried out outside of the box, more convenient;

4. Reliable armored cable introduced, fixed, stripping and grounding protection device, max.

Fix 4pcs outdoor armored cable, equivalent to 2 in 2 out fiber optic cable joint box;

5. Multi-functional welding protective base, can satisfy 48 core welding protective sleeve or

24 core mechanical splicer.

6. Plate turning structure design, fully and rationally utilizing the space of the box, make sure

sufficient bending radius, and appropriate and reasonable space for routing redundant optical fiber;

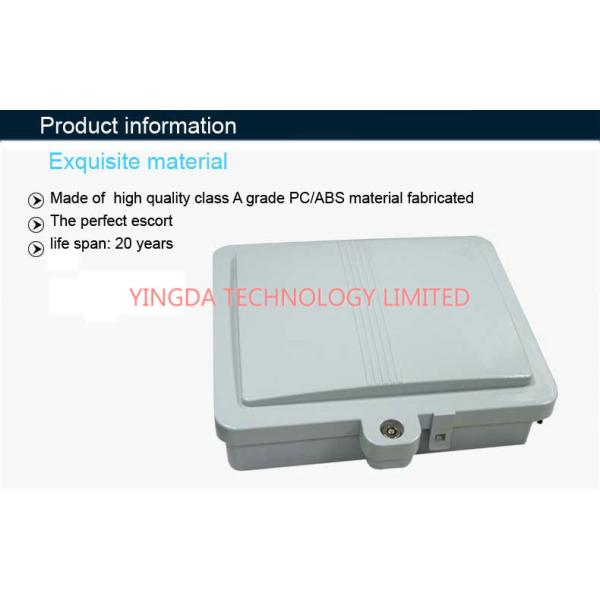

7. ABS and PC alloy, service life: 25years

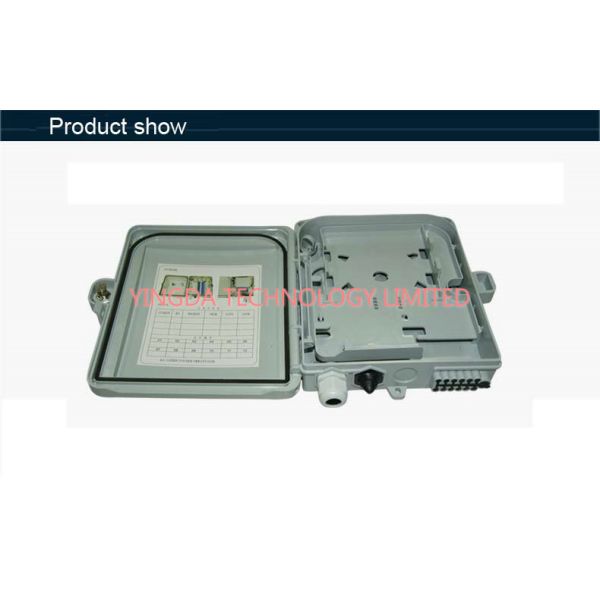

8. Dual layer design, upper layer for distribution, downward layer for splicing tray.

Application

  1. FTTH
  2. Fiber access network
  3. CATV
  4. LAN

12 Core Plastic Optical Terminal Box, 12 Port Optical Fiber Termination box12 Core Plastic Optical Terminal Box, 12 Port Optical Fiber Termination box12 Core Plastic Optical Terminal Box, 12 Port Optical Fiber Termination box12 Core Plastic Optical Terminal Box, 12 Port Optical Fiber Termination box12 Core Plastic Optical Terminal Box, 12 Port Optical Fiber Termination box12 Core Plastic Optical Terminal Box, 12 Port Optical Fiber Termination box12 Core Plastic Optical Terminal Box, 12 Port Optical Fiber Termination box12 Core Plastic Optical Terminal Box, 12 Port Optical Fiber Termination box12 Core Plastic Optical Terminal Box, 12 Port Optical Fiber Termination box
