Specifications
Brand Name :
YINGDA
Model Number :
FTB001
Certification :
ISO,CE, ROHS
Place of Origin :
china
MOQ :
100PCS
Price :
0.18USD-4.29USD
Payment Terms :
T/T,Western Union, MoneyGram
Delivery Time :
5-8 working days
Packaging Details :
1 pc per box, 32 pcs per carton shipping box
Capacity :
2splice tray, max. 24cores

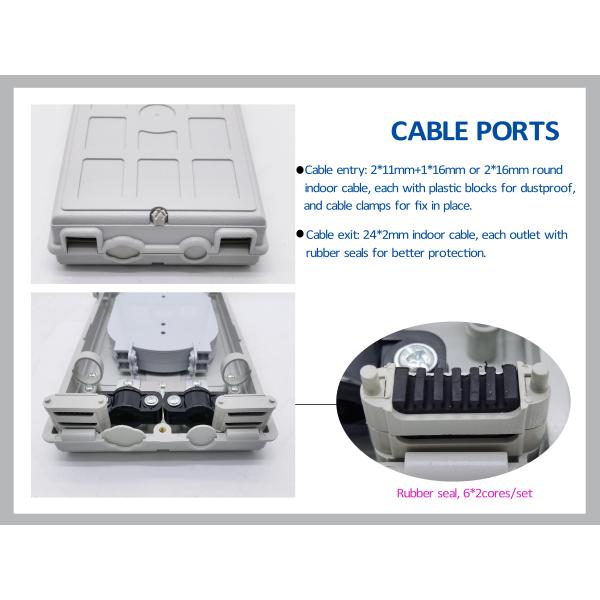

Cable inport :
2 PCS with blocks
Dimension :
264x154x56mm
cable entry :
16mm or 11mm diameter
Material :
high strength plastic PC
Color :
grey
Application :
FTTH indoor wall mount
adapter :
8pcs SC coupler, if need
special :
un-cut cable go through the box
output diameter :
24 small ports for pigtails 2mm 0.9mm
Description

FTTH EPON Network Fiber Optic Distribution Boxes, Plastic 24 Ports Fiber Optic Splice Box

FTB001 Fiber Optic Termination Box is suitable for jointing fiber cable and pigtail, and it protects fiber optic splices and helps to distribute.

The termination box is either a wall-Mounting type or a desktop type, which is mainly used in telecommunication equipment room and network equipment room.

Specification:

Model

Q'ty. of entry/exit ports

Splice

trays

Max capacity

SC adapter

Dimension

(LxWxH)

FTB-001-8SC

2 cable ports + 24

small ports for pigtails

1

12

8

264x154x56mm

FTB-001

2

24

no

FTTH EPON Network Fiber Optic Distribution Boxes, Plastic 24 Ports Fiber Optic Splice Box

FTTH EPON Network Fiber Optic Distribution Boxes, Plastic 24 Ports Fiber Optic Splice Box

Features

Light weight, small size, large capacity to 24 cores

Provide splice connection protection of fiber cable and pigtail.

Made of PC high strength engineering plastic material, good mechanical strength, reliable and long lasting.

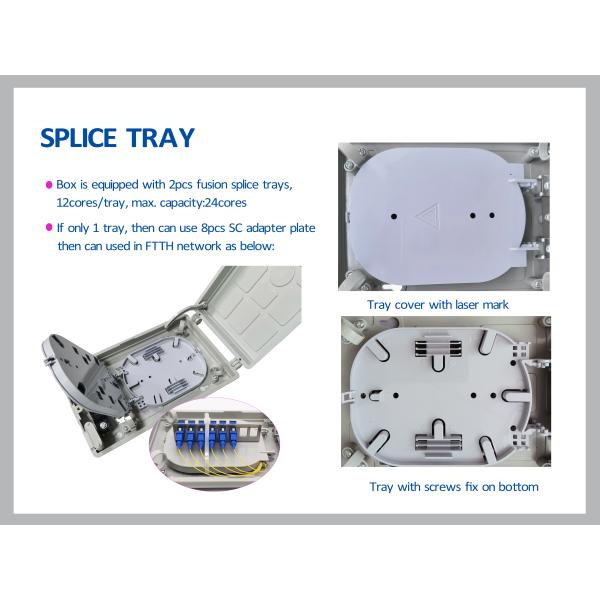

Slide N Lock fiber optic splice tray with its opening angle above 90 degree, easy for installation and maintenance.

FTTH EPON Network Fiber Optic Distribution Boxes, Plastic 24 Ports Fiber Optic Splice Box

FTTH EPON Network Fiber Optic Distribution Boxes, Plastic 24 Ports Fiber Optic Splice Box FTTH EPON Network Fiber Optic Distribution Boxes, Plastic 24 Ports Fiber Optic Splice Box

Application

Suitable to connect the drop (or pigtails) to the raiser fibers splices.

Indoor wall Mount IP54

FTTx, FTTH, FTTB, FTTO, Telecom network, CATV.

FTTH EPON Network Fiber Optic Distribution Boxes, Plastic 24 Ports Fiber Optic Splice Box

Model CTN qty CTN size/cm GW.W./kg
FTB-001-8SC 32 65*30*56.5 24
FTB-001 32 65*30*56.5 24

Empty closure box including:

Cover, Base, splice tray, Heat shrink protective sleeves, Strength member fixtures, Cable Clamps, Strain relief combs, PVC tape, Cable ties, Labeling paper, Wall mounting kits, Tray cover

If you need smaller box, suggest FTB002 as below:

https://www.fibreopticbox.com/buy-FTB002.html?keyword=FTB002
