Specifications
Brand Name :
YINGDA
Model Number :
GPDB-S372D
Certification :
ISO SGS CE ROHS
Place of Origin :
china
MOQ :
100PCS
Price :
1.0USD-18.6USD
Payment Terms :
Western Union, T/T, L/C
Delivery Time :
5-8 working days
Packaging Details :
1 pc per box, 6 pcs per carton shipping box
Capacity :
72fibers
Cable ports :
12 pcs
Dimension :
350*340*120mm
Material :
high strength engineer plastic PC
Color :
white
Application :
FTTH FTTX ODN,PON network
adapter :
72 pcs SC
application :
outdoor wall mount, pole mount
splitter type :
1pc 1:64 or 2pcs 1:32 splitter module ABS plastic
Description

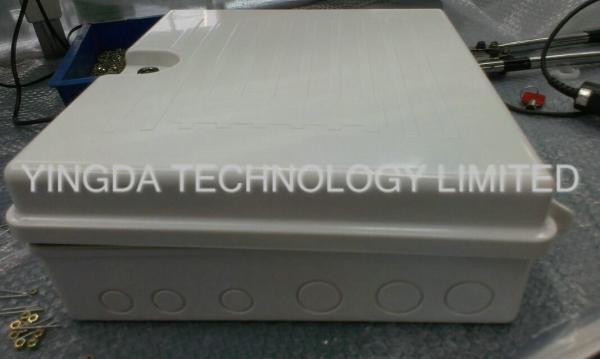

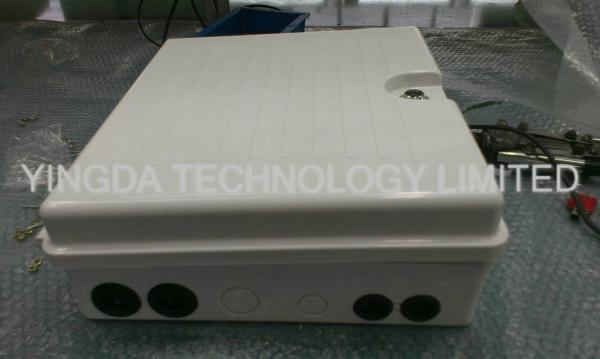

PC Material Pole / Wall Mount Fiber Optic Splitter Box 1x64 PLC Splitter

Description:

1x72 PLC splitter distribution box, wall mount splitter closure is plastic cable distribution

box,with insert-style splitters,suitable for outdoor,corridor or weak current silo, can be

used for local or drop cable end and sub-distribution; also it can be used for protective

connection of cable and layout pigtails, and fiber optic terminations of optic access network,

with the advantage of light, small, convenience of transportation and installation,and capacity

of 16core and 32cores. Max capacity can reach 1 or 2pcs 1:64 / 1:32 cassette splitter.

Features:

  1. The box is made of imported flame retardant material,with aging resistant and
  2. ultra violet resistant characters;
  3. Sealing with pressed strip,waterproof and dust-proof with IP65;
  4. Special screw and key for its door lock,can be installed on wall or mounted on pole;
  5. Temperature working:-40~+80℃, storage:-40~+80℃.
  6. Spare pigtails and drop cable can be save in the storage part,convenience for maintenance;
  7. Special lock device for outlet of drop cable,bilayer structure,bottom for splicing and upper layer for splitting and distribution. The installing plate can be turn over for convenience of installation and operation;
  8. With 2/4standard slot position for the installation of insert-style splitters of 1:8 or 1:32;
  9. Maximum 2pcs of splice tray for satisfying kinds of connection.

Specification

Model

Cable ports

Max splitting

Dimension/mm

GPDB-S64D/72D

12

1:32;2X1:32;2X1:16

350*340*120

Pack information

Model

Carnton quantity

Gross weight

carton size

GPDB-S64D/72D

6pcs

21.8kgs

430*380*460mm
