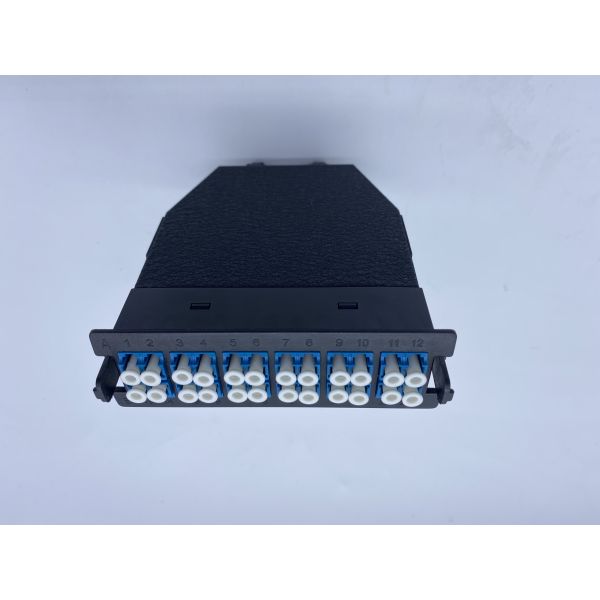

YINGDA Plastic 24fibers MPO To LC Breakout Cassettes Box With Elite Insertion Loss For Data Center
YINGDA Plastic 24fibers MPO To LC Breakout Cassettes Box With Elite Insertion Loss For Data Center
YINGDA Plastic 24fibers MPO To LC Breakout Cassettes Box With Elite Insertion Loss For Data Center
YINGDA Plastic 24fibers MPO To LC Breakout Cassettes Box With Elite Insertion Loss For Data Center
YINGDA Plastic 24fibers MPO To LC Breakout Cassettes Box With Elite Insertion Loss For Data Center
YINGDA Plastic 24fibers MPO To LC Breakout Cassettes Box With Elite Insertion Loss For Data Center
YINGDA Plastic 24fibers MPO To LC Breakout Cassettes Box With Elite Insertion Loss For Data Center
YINGDA Plastic 24fibers MPO To LC Breakout Cassettes Box With Elite Insertion Loss For Data Center
YINGDA Plastic 24fibers MPO To LC Breakout Cassettes Box With Elite Insertion Loss For Data Center
YINGDA Plastic 24fibers MPO To LC Breakout Cassettes Box With Elite Insertion Loss For Data Center
YINGDA Plastic 24fibers MPO To LC Breakout Cassettes Box With Elite Insertion Loss For Data Center
YINGDA Plastic 24fibers MPO To LC Breakout Cassettes Box With Elite Insertion Loss For Data Center
YINGDA Plastic 24fibers MPO To LC Breakout Cassettes Box With Elite Insertion Loss For Data Center
YINGDA Plastic 24fibers MPO To LC Breakout Cassettes Box With Elite Insertion Loss For Data Center
Specifications
Brand Name :
YINGDA
Model Number :
no
Certification :
ISO,CE
Place of Origin :
China
MOQ :
10pc
Price :
negotiate
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000/month
Delivery Time :
5-8days
Fiber type :
OM3,OM4,SM/MM/OM3,OM2,OM1
Connector :
MPO,SC,ST,FC
Product name :
MPO cassette
Fiber core :
8 core,12core,24core
Return loss (dB) :
Standard ≤0.7dB
Dimension :
120*102*34
Color :
Black
Description

Plastic 24fibers MPO To LC Breakout Cassettes Box With Elite Insertion Loss For Data Center

YINGDA Plastic 24fibers MPO To LC Breakout Cassettes Box With Elite Insertion Loss For Data CenterYINGDA Plastic 24fibers MPO To LC Breakout Cassettes Box With Elite Insertion Loss For Data Center

Features

Adopts high quality engineering plastics and Aluminum alloy material, with electrostatic plating

surface, outstanding in appearance and users friendly.

MPO face plate can be upgraded easily.

All the front ports are with mark no. , easy to identify.

Quick and easy installed, flexible in configuration and easy to management

How to insert cassette?

YINGDA Plastic 24fibers MPO To LC Breakout Cassettes Box With Elite Insertion Loss For Data Center

Product standard Configuration

YINGDA Plastic 24fibers MPO To LC Breakout Cassettes Box With Elite Insertion Loss For Data Center

MPO Connector Specification

Insertion loss (dB) SM standard SM Elite MM standard MM Elite
Return loss (dB) ≤0.7 ≤0.35 ≤0.7 ≤0.35
Durability (dB) ≥60 ≥60
Tensile strength (kgf) 10
Working temperature (°C) -20~+70
Measurement wavelength (nm) 1310 850
Geometry Parameters
Item X-axis Y-axis
Min Max Min Max
Radius of curvature (mm) 500 - 50 -
Polishing angle 0-0.2 0+0.2 8-0.2 8+0.2
Item Min Max
Fiber height (nm) 1000 3000
Max fiber height error (nm) 600
Adjancent fiber height error (nm) -300 +300
Avg. Fiber height error(nm) -300 +300
Central concave (nm) 300

LC SC FC fiber optic connector Specification

Fiber mode Single mode Multi mode
Connector polishing Pc Apc Pc
Insertion loss (dB) ≤0.3
Return loss (dB) ≥50 ≥60 ≥35
Repeatability ≤0.2 1000times mating
Working temperature (°C) -40 ~+85
Measurement wavelength (nm) 1310 850

Product Dimension

YINGDA Plastic 24fibers MPO To LC Breakout Cassettes Box With Elite Insertion Loss For Data Center

Order information

PART NO. NAME COLOR PACK
YDMPO-12-CM 12core MPO cassette (empty box) Black 1pc
YDMPO-24-CM 24core MPO cassette (empty box) Black 1pc

Packing

YINGDA Plastic 24fibers MPO To LC Breakout Cassettes Box With Elite Insertion Loss For Data Center
