Specifications
Brand Name :
yingda
Model Number :
FDB0216G
Certification :
ISO, CE, ROHS
Place of Origin :
china
MOQ :
100 pcs
Price :
negotiable
Payment Terms :
T/T, L/C, Western Union
Delivery Time :
7-15days
Packaging Details :
1pc/box, 10pcs/carton box
Material :
PC ABS
waterproof :
IP65 protection level
installation :
wall mount, pole mount, aerial mount
Cable ports :

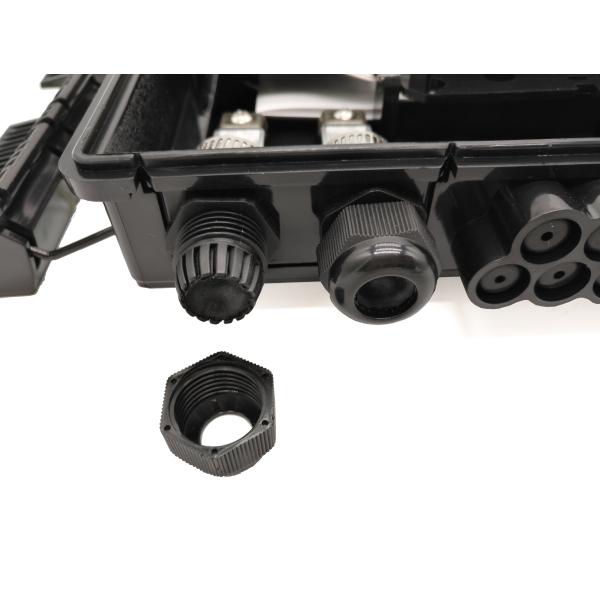

2 cable glands PG13.5 or uncut ports
Dimension :
292*218*83 mm
Box type :
ftth access terminal box
plc splitter :
2pc 1x8 mini splitters
Color :
black, white, gray
Cable exit :
16 pcs 2*3mm ftth flat drop cable box
Adapter qty :
16 pcs SC adapters
Description

FTTH IP65 16 Ports 2pcs 1x8 Fiber Optic Splitter Box Aerial Pole Wall Mounting Black

FDB0216G is access terminal box for FTTH network. It connect feeder cable or distribution cable to subscriber’s drop cable with PLC splitter. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

16 Port Optical Distribution Box Features

  • Total enclosed structure with key and buckles
  • High strength engineer plastic, wet-proof, water-proof, dust-proof, anti-aging, Resistance to chemical and U.V attack.

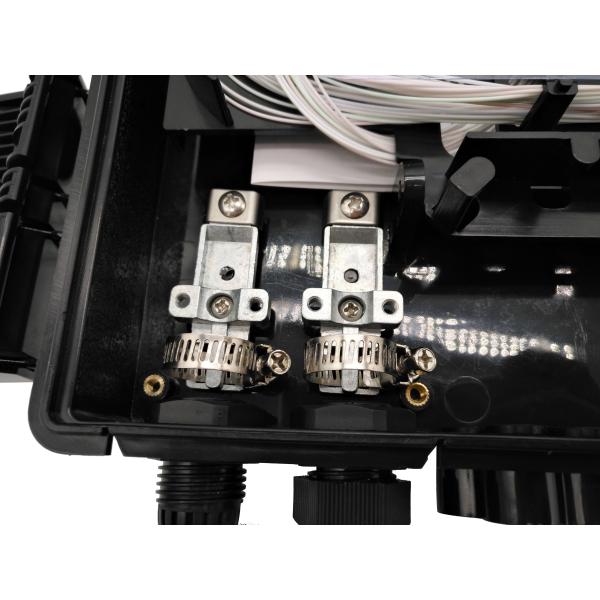

  • Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution,etc all in one.
  • Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.

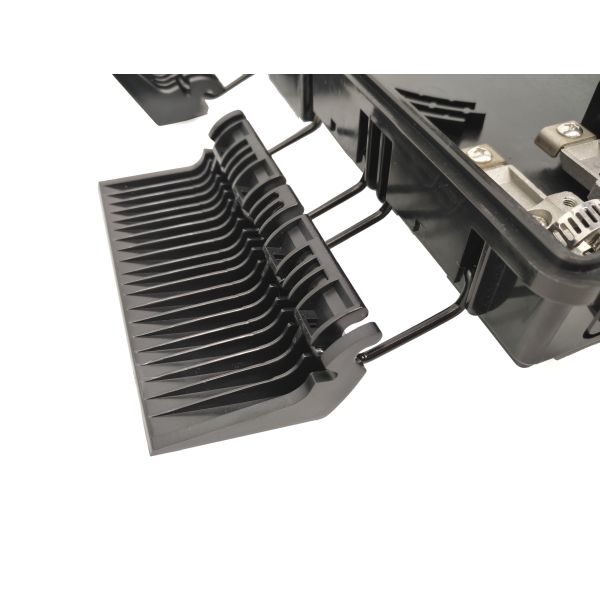

  • Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
  • Outdoor Wall mount or pole mount, IP65

16 Port Optical Distribution Box Specification

Model FDB0216G-A FDB0216G-B
Dimension (A*B*C) 292*218*83mm (D*E:80*155m)
Max.Capacity 16 cores (single fiber)
Cable ports 2cable gland, 16out 1mid span, 16out
Cable diameter In:Φ7-12mm, out:2*φ3mm In:φ20mm; out:2*φ3mm
Splitter quantity 1x16 or 2pc 1x8 steel tube 1x16 or 2pc 1x8 LGX module
Adapter quantity 16SC --
Color Grey / black /white

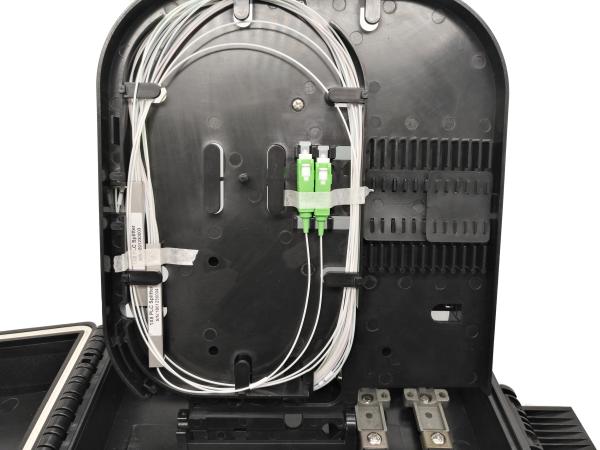

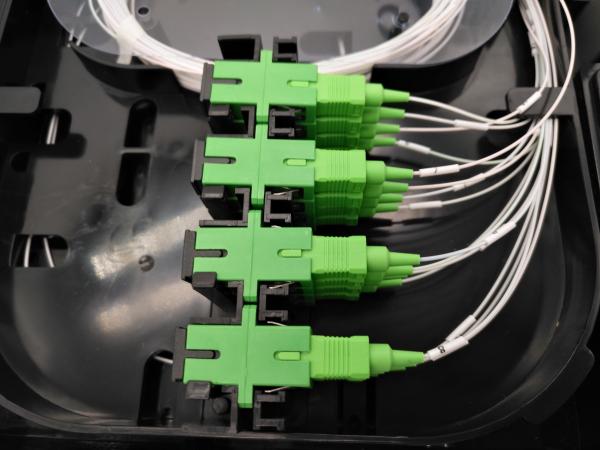

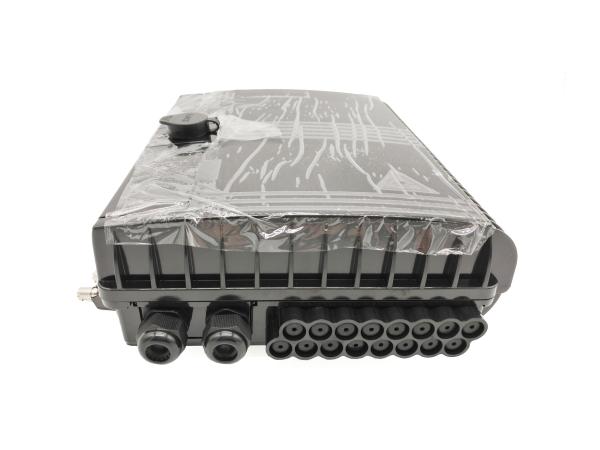

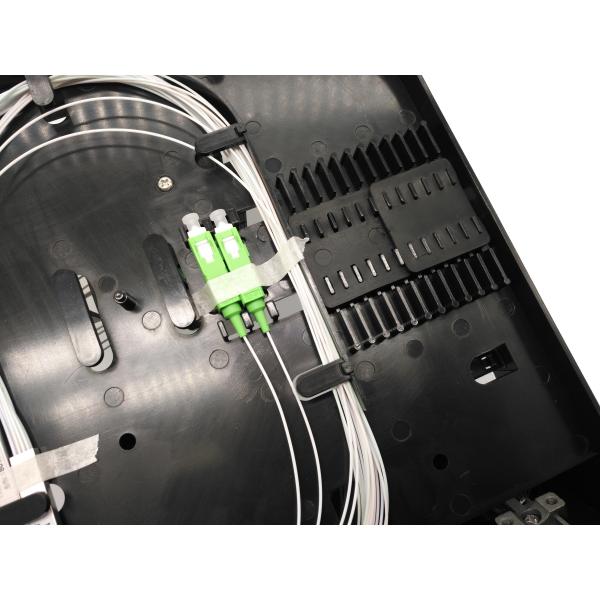

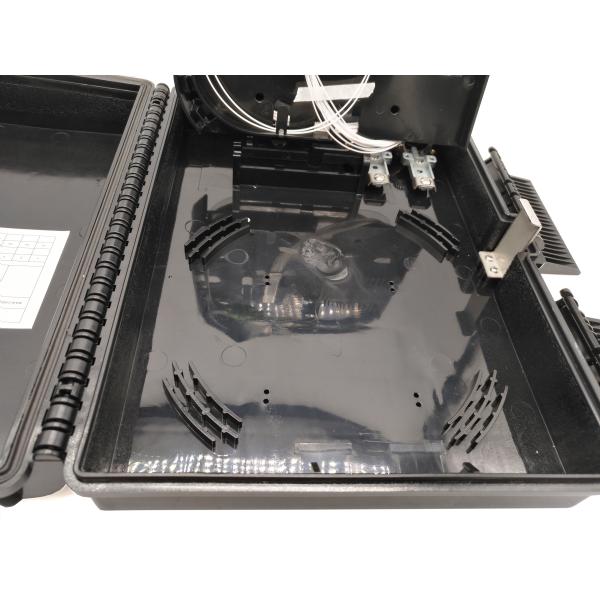

16 Port Optical Distribution Box Product Details

FTTH IP65 16 Ports 2pcs 1x8 Fiber Optic Splitter Box Aerial Pole Wall Mounting Black

FTTH IP65 16 Ports 2pcs 1x8 Fiber Optic Splitter Box Aerial Pole Wall Mounting BlackFTTH IP65 16 Ports 2pcs 1x8 Fiber Optic Splitter Box Aerial Pole Wall Mounting BlackFTTH IP65 16 Ports 2pcs 1x8 Fiber Optic Splitter Box Aerial Pole Wall Mounting BlackFTTH IP65 16 Ports 2pcs 1x8 Fiber Optic Splitter Box Aerial Pole Wall Mounting Black

16 Port Optical Distribution Box Standard Accessory:

expansion screws, key, nylon tie, sleeve, buffer tube, uncut ports, user manual

FTTH IP65 16 Ports 2pcs 1x8 Fiber Optic Splitter Box Aerial Pole Wall Mounting Black

16 Port Optical Distribution Box Pack information

Net weight Inner box Quantity / carton box Carton box size Gross weight/carton box
1.5Kg cm 10pcs 60*34*51cm 17.5kg
