Mpo Patch Cord Indoor Patch Cord Ftth Fiber Optic Patch Cord
Mpo Patch Cord Indoor Patch Cord Ftth Fiber Optic Patch Cord
Mpo Patch Cord Indoor Patch Cord Ftth Fiber Optic Patch Cord
Mpo Patch Cord Indoor Patch Cord Ftth Fiber Optic Patch Cord
Mpo Patch Cord Indoor Patch Cord Ftth Fiber Optic Patch Cord
Mpo Patch Cord Indoor Patch Cord Ftth Fiber Optic Patch Cord
Specifications
Brand Name :
no
Model Number :
no
Certification :
ISO CE
Place of Origin :
China
MOQ :
10pc
Price :
0.18USD-4.29USD
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000/month
Delivery Time :
5-8days
Adapter Type :
MPO
Application :
Indoor
Fiber Count :
12/16/24/32/48/64
Fiber Type :
Single-mode/Multi-mode
Description

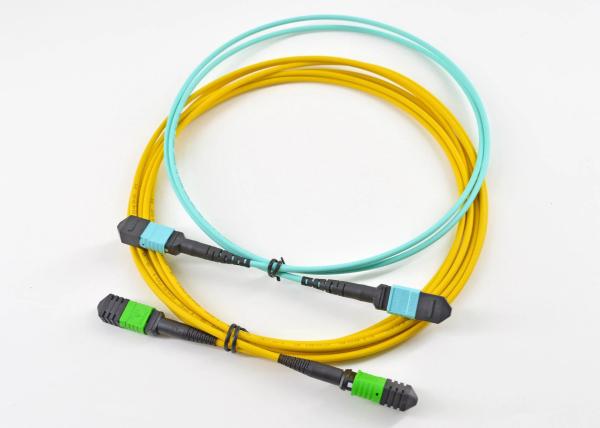

MPO / MTP Fiber Optic Patch Cable

MPO/MTP fiber optic patch cable consists of multi core fiber optic cable and corresponding 4/8/12/24 core high density MPO MTP connector. The connector might be female or male with guide pin. The cable from 4-144core, single mode or multi mode, the single mode fiber including G652D G657A G657A2, the multi mode fiber including 62.5/125um. 10G OM2/OM3/OM4, OR BENDING INSENSITIVE 10G multi mode cable.

Yingda is with strong MPO MTP product design and manufacturing ability, we can provide products with pigtails to customer requirements. All products delivered with excellent performance and reliability.Most of our products are SENKO brand, or USCONEC brand. If not customized, will use MADE IN CHINA connectors parts, please kindly note.

Features

Customized, high adaptability

Different fiber cores and cable structure for different installation

Improved and simplified cabling, reduce cabling spacing

Complied with IEC61754-7, Telcodia GR-1435- CORE, RoHS

Application

Data Center and 40Gb/s Applications

Fiber to the home ( FTTH )

High density fiber optic cable management

MPO Connector Specification

Insertion loss (dB) SM standard SM Elite MM standard MM Elite
Return loss (dB) ≤0.7 ≤0.35 ≤0.7 ≤0.35
Durability (dB) ≥60 ≥60
Tensile strength (kgf) 10
Working temperature (°C) -20~+70
Measurement wavelength (nm) 1310 850
Geometry Parameters
Item X-axis Y-axis
Min Max Min Max
Radius of curvature (mm) 500 - 50 -
Polishing angle 0-0.2 0+0.2 8-0.2 8+0.2
Item Min Max
Fiber height (nm) 1000 3000
Max fiber height error (nm) 600
Adjancent fiber height error (nm) -300 +300
Avg. Fiber height error(nm) -300 +300
Central concave (nm) 300

LC SC FC fiber optic connector Specification

Fiber mode Single mode Multi mode
Connector polishing PC APC PC
Insertion loss (dB) ≤0.3
Return loss (dB) ≥50 ≥60 ≥35
Repeatability ≤0.2 1000times mating
Working temperature (°C) -40 ~+85
Measurement wavelength (nm) 1310 850
