2 Port SC ABS G657B3 LSZH Fiber Optic Termination Box

2 Port SC Indoor ABS Wall Fiber Optic Termination Box Outlet G657B3 LSZH Faceplate White

The optical rosette acts as a termination point of the optical network, it use direct connection or fusion splice in a pre-termination pigtails. It can be installed on the wall, and adapt variety of optical connection styles LC/SC, maximum 2cores.

Specification

Features

• The box is made of high quality engineeringplastic ABS, brand new materials, not have second hand, white color.
• It can be installed on any vertical flat surface on wall;
• Compact size, light weight, special design;
• According to the internal wiring and structural requirements, the surface adopts gradient design, non planar;
• Capacity to store 2m of optical cord or pigtails with 0.9mm diameter;
• Cable entry from bottom hole, not side or front, this hidden wiring design, more beautiful and safe, to prevent man-made damage to the optical fiber fracture and affect the optical fiber transmission performance;
• There are 2 card-type designs on the left and right sides, which open and close firmly, and the lid is not easy to fall off. It is easy to handle, no other tools are needed during construction;
• The front panel adopts the universal SC adapter, which is convenient and quick, and the construction is simple.

The box is special deisn, bottom entry cable, front exit cable,is made of ABS high quality engineering plastic, high strength, long stability, dust proof, flame retartant material available on request.

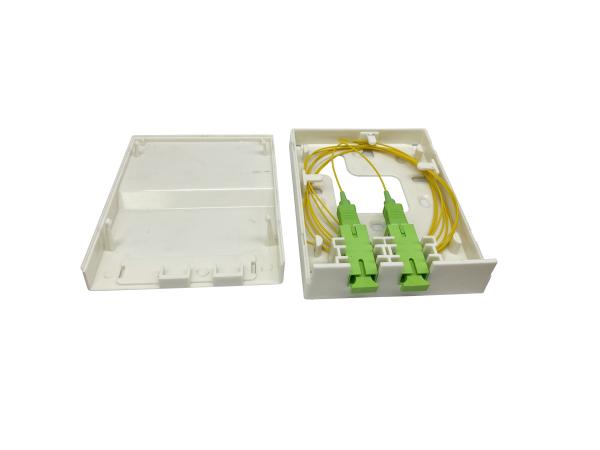

FTB86Y ftth nap box fully load with 2pcs SC/APC optical fiber pigtails G657B3 LSZH0.9mm 9/125um yellow 1.5meter loose tube, and 2pcs SC/APC adapters without flange.

The box use brand new ABS plastic, white color, total enclosed box with clips at both sides, easy to open and close, no need speical tools.

At top of the box, there is logo print reserved position with paper block if no need, and we can open 2 screws to fix the cover and bottom to make it more safe, then without screw driver, can not open the box by hand. details pls see above picture.

The box front is for adapters exit, only insert the pigtails or patch cord in, then can connected. standard type or shutter type both ok.

The cable enter the box from the bottom middle hole or small square holes at the corners, there is special space for cable routing. Which make it more clean after installation, no cable will be seen by human eye.

if on field installation use mechanical splicer, we can fix a holder at the 4 holes around the big hole in the middle. There are many wall mounting holes design at the bottom plate to make installation easier.

Application

FTTH internal environment wall mount

Standard accessories

2pcs fixing screws, 2pcs screws for closing the cover, 2sleeve, heat shrink sleeve slot(optional), adapter(optional), pigtail(optional)

Any more questions, please call us at:

TEL/Whatsapp:+86 18688982406

E-mail:sales@yingdapc.com

We will be back to you at first sight.

Welcome inquir!

There is cable ports at both sides and at back of the box, which ensure flexible fiber distribution and management. when use, please use tools to cut off the block, then can use.
