18 Colors Fiber Optic Pigtail 3Mts Fanout Tight Buffer SC G657A1 LSZH 0.9mm
18 Colors Fiber Optic Pigtail 3Mts Fanout Tight Buffer SC G657A1 LSZH 0.9mm
18 Colors Fiber Optic Pigtail 3Mts Fanout Tight Buffer SC G657A1 LSZH 0.9mm
18 Colors Fiber Optic Pigtail 3Mts Fanout Tight Buffer SC G657A1 LSZH 0.9mm
18 Colors Fiber Optic Pigtail 3Mts Fanout Tight Buffer SC G657A1 LSZH 0.9mm
18 Colors Fiber Optic Pigtail 3Mts Fanout Tight Buffer SC G657A1 LSZH 0.9mm
18 Colors Fiber Optic Pigtail 3Mts Fanout Tight Buffer SC G657A1 LSZH 0.9mm
18 Colors Fiber Optic Pigtail 3Mts Fanout Tight Buffer SC G657A1 LSZH 0.9mm
Specifications
Brand Name :
YINGDA
Model Number :
YDPG-18SA-030901
Certification :
ISO SGS ROHS
Place of Origin :
china
MOQ :
100pcs
Price :
0.16USD-19.9USD
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
100,000 pcs per month
Delivery Time :
7days after payment
Packaging Details :
1 pc/ box, 220pcs / carton box
connector :
SC/APC connector
fiber count :
18 Cores
insertion loss :
<0.3 dB
fiber type :
single mode 9/125um
cable color :
blue,pink,purple,orange,yellow,black,red,brown,aqua,etc
fanout diameter :
0.9mm
jacket :
LSZH
connector color :
green
temperature :
-40~+85°C
type :
breakout pigtails
application :
ODF, patch panel, terminal box, cabinet, FOSC
product name :
fiber optical pigtall，fibre optic pigtail， fo pigtall，fiber optik pigtail
Customer Logo: :
yes
Description

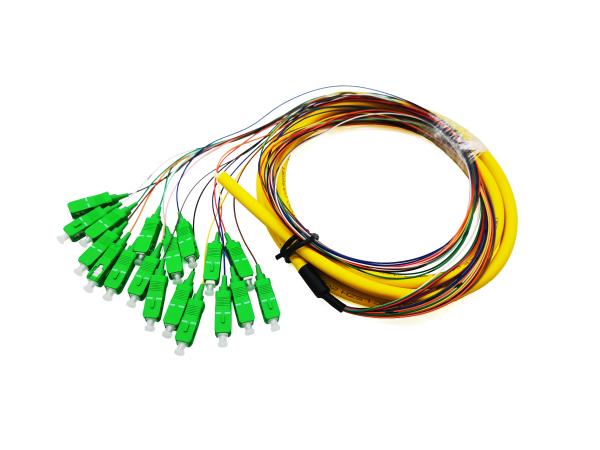

18 Colors Fiber Optic Pigtail 3Mts Fanout Tight Buffer SC G657A1 LSZH 0.9mm

18 Colors Optical Fiber Pigtails 3Mts Fanout Tight Buffer SC G657A1 LSZH 0.9mm 1M Ftth GPON

Optical fiber pigtails only one end has a connector, the other end is a bulkhead end of an optical fiber core, which is used for the connection between the optical cable terminal box and the equipment. One end of the pigtail is fused with the optical fiber connector, and the other end is connected with the optical fiber transceiver or optical module through the LC SC FC st connector, forming the data transmission channel.

18Cores Pigtials can end terminate or distribute fiber to 18subscribers in ftth networks, widely used in FTTH terminal box, distribution box or patch panel or cabinets.

Optical Characteristics

Cable diameter φ0.9mm, φ2.0mm, φ3.0mm
Insertion loss ≤0.2dB
Return loss PC≥40dB,UPC≥50dB,APC≥60dB
Interchange ability test ≤0.2dB
Mating times >1000 times
Repeat ability ≤0.1dB
Vibration test ≤0.1dB(10-60Hz,1.5mm Full amplitude)
Tensile strength: 0~15Kg
temperature cycling test ≤0.2dB (-40℃~+85℃,after 5times recycle)
Low temperature test ≤0.2dB(-40℃,last 100 hours)
High temperature test ≤0.2dB (+85℃,last 100 hours)
Tensile test ≤0.1dB(0-15Hg tensile,φ0.9mm fiber exception)
Temperature test ≤0.2dB(+25℃~+65℃, relative humidity 93%, after 100hours)
Fiber count 4 core 6 core 8 core, 10 core, 12 core.
Can use connectors

FC / PC, FC / APC, SC / PC, SC / APC, ST / PC, etc

18 Colors Fanout Pigtails Features

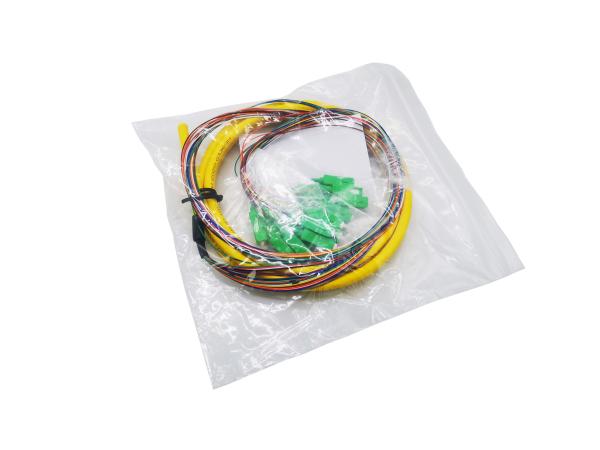

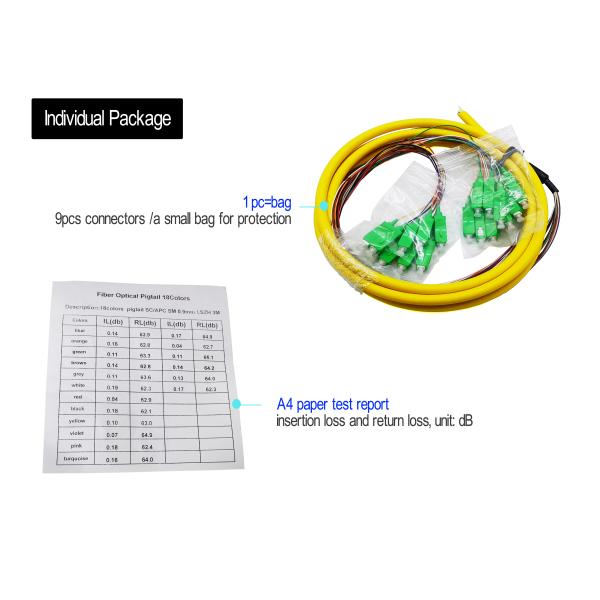

  • 1piece in a plastic bag with air vent, with 1 test report along;
  • All product will be 100% test in factory before delivery;
  • Conforms to ANSI, Bellcore,TIA/EIA,IEC,etc International and domestic standards
  • OEM customer logo or label is available.

18 Colors Fiber Optic Pigtail 3Mts Fanout Tight Buffer SC G657A1 LSZH 0.9mm

  • All connectors adopt Three-circle brand ceramic ferrule, angel -8 degree, Concentricity 0.5 or 1;
  • All kinds of connectors are available:SC LC ST FC E2000 MU MTRJ DIN D4 SMA MPO MTP, etc.
  • Endface:UPC APC PC or SPC

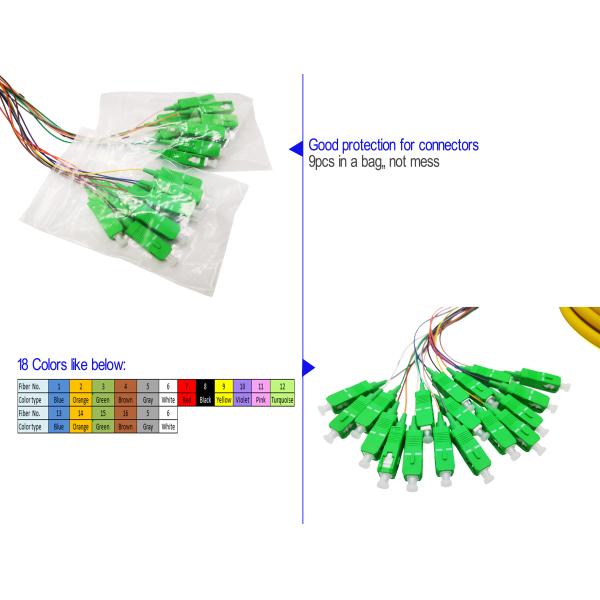

  • 18 Colors: blue, orange, green, brown, gray, white, red, black, yellow, purple, pink, light blue, blue, orange, green, brown, gray

18 Colors Fiber Optic Pigtail 3Mts Fanout Tight Buffer SC G657A1 LSZH 0.9mm

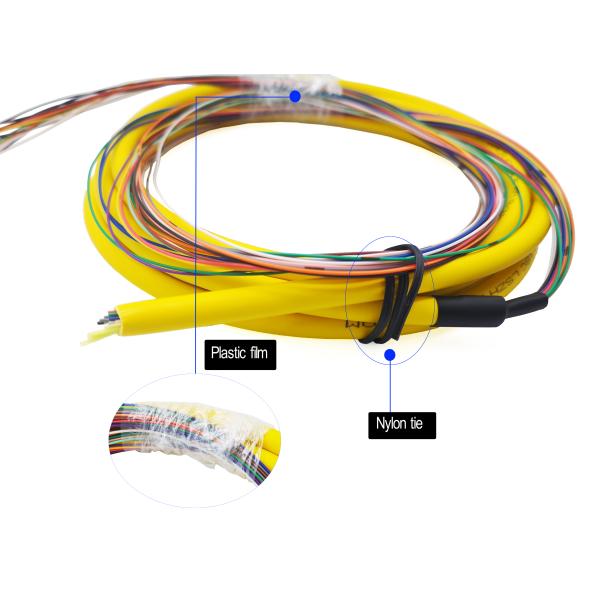

  • On aseembly, in order to make the fiber in place,in good bend radius, not mess or injury, will use a plastic film or nylon tie at opposite.

18 Colors Fiber Optic Pigtail 3Mts Fanout Tight Buffer SC G657A1 LSZH 0.9mm

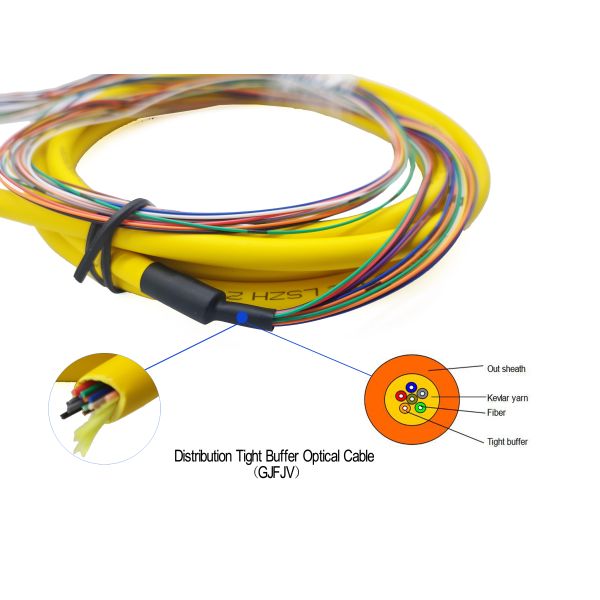

Distribution Tight Buffer Optical Cable(GJFJV) SPECIFICATION:

18 Colors Fiber Optic Pigtail 3Mts Fanout Tight Buffer SC G657A1 LSZH 0.9mm

Technical Parameters:
Cable Count Outside
Diameter		 Tight buffer
Diameter		 Weight Minimum allowable Tensile Strength
(N)		 minimum allowable Crush Load
(N/100mm)		 Minimum Bending Radius
(MM)		 Storage
temperature
(MM) (MM) (KG) short term long term short term long term short term long term (℃)
02 3.0 0.9 15.00 600 200 1000 200 20D 10D -20+60
04 4.0 0.9 22.00 600 200 1000 200 20D 10D -20+60
06 4.0 0.9 23.00 600 200 1000 200 20D 10D -20+60
08 5.0 0.9 27.00 600 200 1000 200 20D 10D -20+60
10 5.5 0.9 30.00 600 200 1000 200 20D 10D -20+60
12 6.0 0.9 35.00 600 200 1000 200 20D 10D -20+60

Application

  • Medical instruments
  • Industry and Army use
  • CATV network
  • LAN network
  • Fiber Access network
  • Telecommunications
  • Gigabit Data Network test

18 Colors Fiber Optic Pigtail 3Mts Fanout Tight Buffer SC G657A1 LSZH 0.9mm18 Colors Fiber Optic Pigtail 3Mts Fanout Tight Buffer SC G657A1 LSZH 0.9mm18 Colors Fiber Optic Pigtail 3Mts Fanout Tight Buffer SC G657A1 LSZH 0.9mm
