Nap Caja Terminal Fiber Optic Splitter Box Exterior Plastic Waterproof 2 Cable Glands
Nap Caja Terminal Fiber Optic Splitter Box Exterior Plastic Waterproof 2 Cable Glands
Nap Caja Terminal Fiber Optic Splitter Box Exterior Plastic Waterproof 2 Cable Glands
Nap Caja Terminal Fiber Optic Splitter Box Exterior Plastic Waterproof 2 Cable Glands
Nap Caja Terminal Fiber Optic Splitter Box Exterior Plastic Waterproof 2 Cable Glands
Nap Caja Terminal Fiber Optic Splitter Box Exterior Plastic Waterproof 2 Cable Glands
Nap Caja Terminal Fiber Optic Splitter Box Exterior Plastic Waterproof 2 Cable Glands
Nap Caja Terminal Fiber Optic Splitter Box Exterior Plastic Waterproof 2 Cable Glands
Nap Caja Terminal Fiber Optic Splitter Box Exterior Plastic Waterproof 2 Cable Glands
Nap Caja Terminal Fiber Optic Splitter Box Exterior Plastic Waterproof 2 Cable Glands
Specifications
Brand Name :
YINGDA
Model Number :
GP62DW-2 (FDB-6002)
Certification :
ISO SGS CE ROHS
Place of Origin :
china
MOQ :
10 PCS
Price :
1.0USD-18.6USD
Payment Terms :
Western Union, T/T, L/C
Delivery Time :
5working days
Packaging Details :
1 pc / box, 30 pcs/ carton shipping box
Capacity :
2 Cores
Cable ports :
2 cable glands
Dimension :
208×153×52mm
Material :
Polymer synthetic plastic
Color :
grey
adapter :
2 SC; 4 LC
installation method :
outdoor wall mount
splice tray :
1 pc
feature :
ftth customer end user box
splitter :
1x2 1x4 mini module plc splitter
Description

Nap Caja Terminal Box Exterior Plastic Waterproof Fiber Optic Splitter Distribution Box

GP62DW-2 is a new generation product for fiber to the home. The box is light and compact; it is especially for connecting and protection for fiber cable of FTTH.

Features

  • Max capacity: LC 4fiber, SC 2fiber.
  • Excellent sealing performance,reusable,protection class is IP 65.
  • Wall mount application
  • Built in swing out mini splice tray
  • Builk head panel with 2 SC/LC Duplex (SC footprint)
  • Built in weather tight grommets
  • Locking door with key
  • It is suitable for outdoor cable or indoor soft cable

Specification

Parameter Value
PLC splitter Mini module 0.9mm
Splitter installation position Splitter fixing bracket
Adapter SC,LC
Max ratio 1x2(SC);1X4(LC)
Splice tray 1 pc 18#
Cable outdoor cable, indoor soft cable
Optional PLC splitter,SC adapter,LC duplex adapter
Box dimension 460*335*590mm
Package 60pc/Carton

Product details

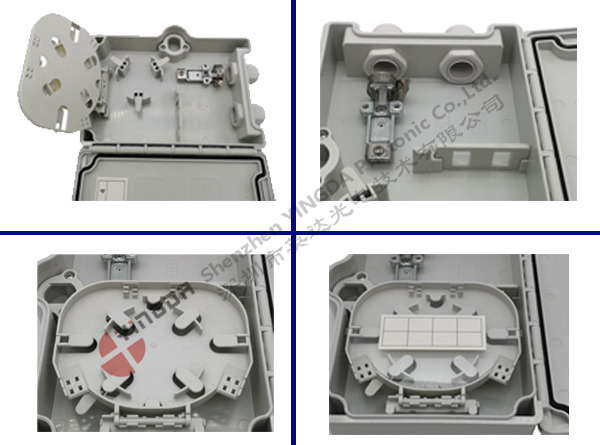

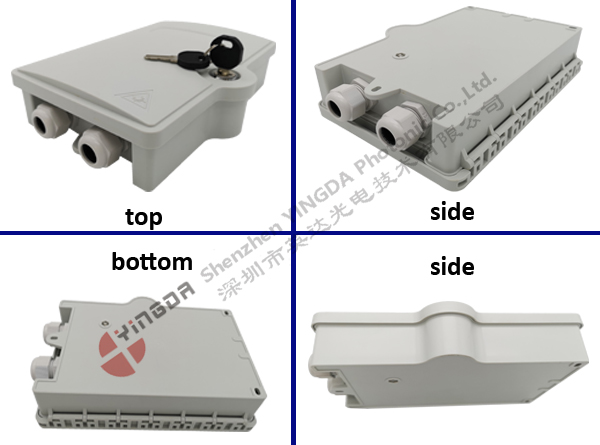

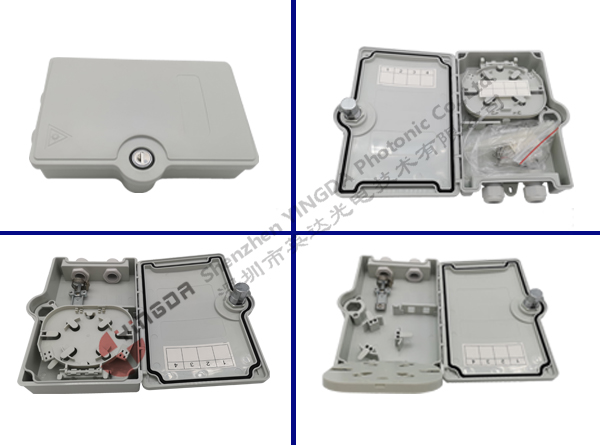

1. Outer apperance: 2cable glands, 1in 1out, wall mount holes on the back. It has strength hinge of the lid and cover.

Nap Caja Terminal Fiber Optic Splitter Box Exterior Plastic Waterproof 2 Cable Glands

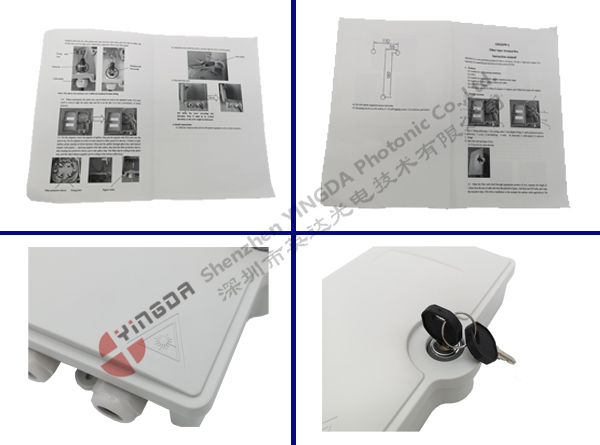

2. the box close with key, anti-thief. there is label mark for on-site construction, accessory bag in the box before delivery.

2pcs SC adapter panel on the bottom.

Nap Caja Terminal Fiber Optic Splitter Box Exterior Plastic Waterproof 2 Cable Glands

Nap Caja Terminal Fiber Optic Splitter Box Exterior Plastic Waterproof 2 Cable Glands

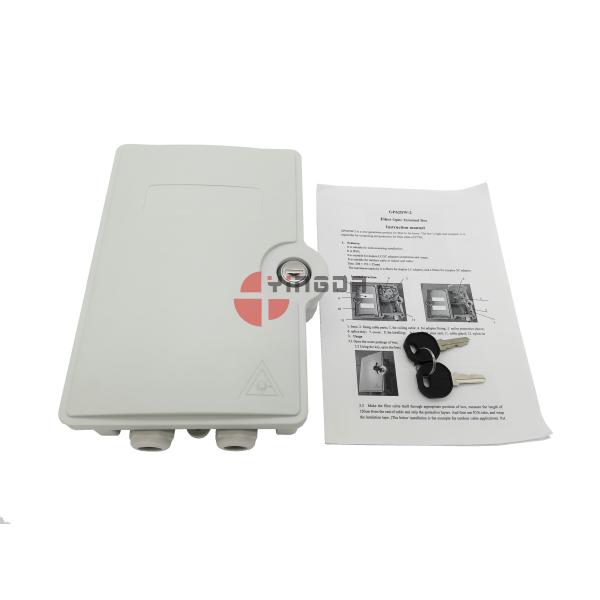

3. all the box will equipped with english user manual.

Nap Caja Terminal Fiber Optic Splitter Box Exterior Plastic Waterproof 2 Cable Glands

Standard accessory

Nap Caja Terminal Fiber Optic Splitter Box Exterior Plastic Waterproof 2 Cable Glands

Application

  • Outdoor wall mount or pole mount
  • FTTH distribution or splitting
