Specifications
Brand Name :
yingda
Model Number :
GJS-2016-116SA
Certification :
ISO
Place of Origin :
china
MOQ :
100 pcs
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Delivery Time :
10-15days
Packaging Details :
1pc / box, 4pcs / master box
Material :
PP+ GF (Glass fiber)
color :
black
ip grade :
IP65
mounting method :
wall mount / pole mount
cable port :
2 in 2 out, 16 ports with SC adapter
max fusion :
2 splice tray, max. 48cores single fiber
box type :
ftth splice closure
max. splitter :
1x16 mini splitter or 2pcs 1x8 steel tube splitter
feature :
insert fast connector with drop cable directly
Description

16 Ports SC Adapter Coupler Fiber Optic Drop Cable Joint Closure 2in 2out PP Black

It is used to splice cable with max. 12.5mm dia.and allow 16 pcs drop cable with fast connector exit, no need special tool or connectors, you can use ftth drop cable or soft indoor cable or outdoor cable. It adopt engineering plastic in scientific formula with excellent mechanical strength, can prevent aging effectively caused by cold, hot, oxygen, UV etc. It can splice and connect the optic fibers in aerial, pole mounting or wall mounting environment. It is reliable sealing performance, can meet IP65 grade, and convenient for repeated use or repair.

Box sturcture:

SC Adapter Coupler Fiber Cable Joint Box Closure 16 Ports 2 In 2 Out PP Black Color

Specification

MODEL Dia. (mm) Biggest point Max capacity No. Of Ports Available Splitter Max. Adapter
GJS-2016 359*277*120 48 fibers
24F/tray		 2 pcs round on both side: for 8-12mm;
16pcs fast connector ports for drop cable		 1pc 1*16 or 2pcs 1*8 micro PLC splitter 16SC
Mechanical sealing with Silicon rubber and Clip type lock.

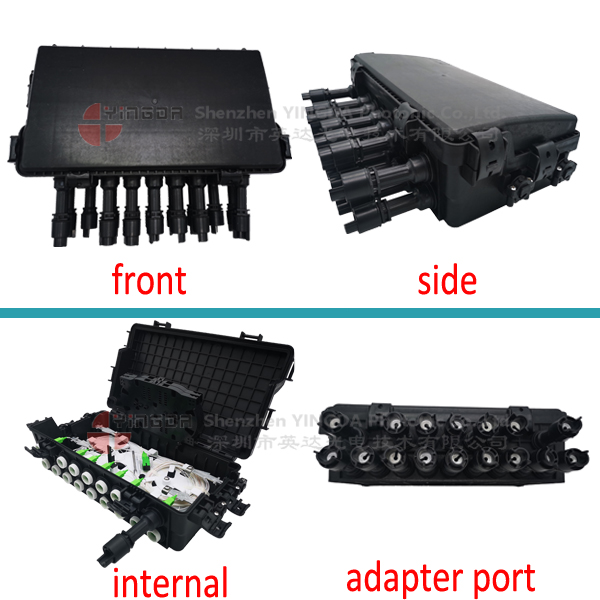

Product Details:

SC Adapter Coupler Fiber Cable Joint Box Closure 16 Ports 2 In 2 Out PP Black ColorSC Adapter Coupler Fiber Cable Joint Box Closure 16 Ports 2 In 2 Out PP Black ColorSC Adapter Coupler Fiber Cable Joint Box Closure 16 Ports 2 In 2 Out PP Black Color

Features

  • Ingress Protection: IP65 waterproof outdoor use
  • Seal with silicon rubber ring at the closure body and entry ports.
  • Adopt plastic clip type lock for easy reopen and maintenance.
  • Provide 4 pcs 12~24F entry port block and sealing tape for flexible application.
  • Guarantee a reliable and practical seal performance of the entry ports.
  • Adapter number: max hold 16pcs simplex SC installation sized adapters.
  • Splitter:avilable for 1pc 2:16 or 2 pcs 1:8 micro PLC splitter's adapters
  • All the metal part use Stainless Steel material.
  • Advantage of fast connector exit: No need to open the closure for adjusting the signal.
  • Only plug the fast connectors to adjust. More convenience.

Main Technical Index:

  • Available optic fiber bending radius :≥37.5mm
  • Excessive loss fiber length :≥1.6m
  • Max splice capacity:48F (single fiber)
  • Working Temperature:-40ºC~+70ºC
  • Lateral pressure resistance:≥2000N/10cm
  • Impact resistance :≥20N.m

How to use the box?

SC Adapter Coupler Fiber Cable Joint Box Closure 16 Ports 2 In 2 Out PP Black Color

SC Adapter Coupler Fiber Cable Joint Box Closure 16 Ports 2 In 2 Out PP Black Color

FAST CONNECTOR KITS outports series:

GJS-0208S

http://www.fibreopticbox.com/sale-12133852-ip65-pp-mini-1-8-plc-optical-fiber-splitter-box-for-uncut-cable-sc-quick-assembly-connector.html

GJS-2008

http://www.fibreopticbox.com/sale-12072104-inline-fiber-cable-joint-box-ip65-outdoor-pole-mount-36-cores-8-sc-fast-connector.html

GJS-2016

http://www.fibreopticbox.com/sale-12071701-ip65-16-ports-plc-splitter-fiber-cable-joint-box-fast-mechanical-connector-exit.html
