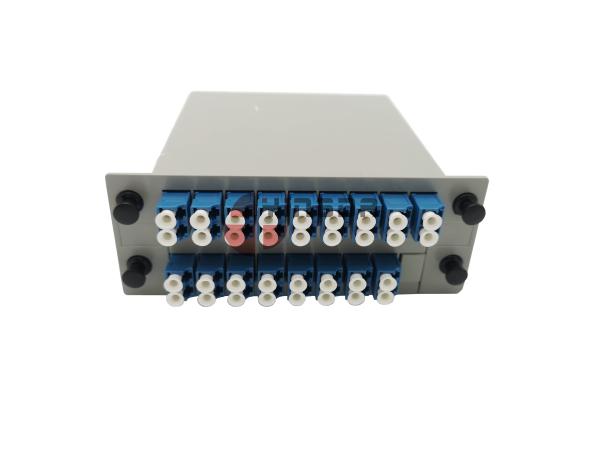

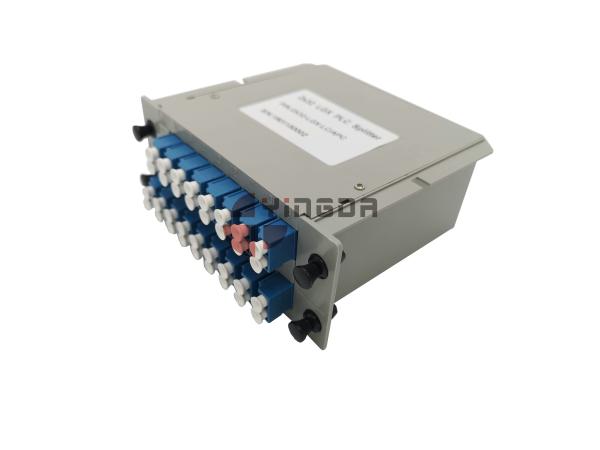

1x32 2x32 Lgx Plc Splitter Fiber Optic Cable Single Mode With LC SC Couplers
1x32 2x32 Lgx Plc Splitter Fiber Optic Cable Single Mode With LC SC Couplers
1x32 2x32 Lgx Plc Splitter Fiber Optic Cable Single Mode With LC SC Couplers
1x32 2x32 Lgx Plc Splitter Fiber Optic Cable Single Mode With LC SC Couplers
1x32 2x32 Lgx Plc Splitter Fiber Optic Cable Single Mode With LC SC Couplers
1x32 2x32 Lgx Plc Splitter Fiber Optic Cable Single Mode With LC SC Couplers
1x32 2x32 Lgx Plc Splitter Fiber Optic Cable Single Mode With LC SC Couplers
1x32 2x32 Lgx Plc Splitter Fiber Optic Cable Single Mode With LC SC Couplers
Specifications
Brand Name :
yingda
Model Number :
YDPLC-LGX-232LA
Certification :
ISO
Place of Origin :
china
MOQ :
1pc
Price :
1.1USD-4.58USD
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Delivery Time :
5DAYS
Packaging Details :
1PC/PLASTIC BAG, 40pcs/carton box
box size :
267×100×50mm
material :
flame-retardant ABS
color :
gray
cable port :
18 port: 2in ,16out
splitter type :
1x32 2x32 passive fiber optic splitter
fiber type :
single mode 9/125um
loose tube :
0.9mm diameter white
Connector :
SC LC
Description

1x32 2x32 lgx plc splitter for fiber optic cable Single mode with LC SC couplers

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using

silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise

locations. The standard LGX mental box housing provides a plug-and-play method for integration in the network,

which eliminates any risks during installation. It eliminates the need for splicing machines on the field and there

is no need for skilled personnel for deployement. Yingda provides whole series of 1xN and 2xN splitter products

that are tailored forspecific applications. All products meet GR-1209-CORE and GR-1221-CORErequirements.

These modules are compatible with all of our rack and wall mount enclosures & patch panels, available in all

connector types. Push/pull fasteners make plates easy to install and remove for service. All modules are made

of plastic. Cassette Face plates are standard LGX dimensions and compatible with most manufacturers.

LGX Box Dimension:

Splitting ratio Dimension (H×W×D)mm
1x2 / 2x2 (Inserts) 130×100×25
1x4 / 2x4 (inserts)
1x8 / 2x8(Inserts)
1x16 / 2x16 (Inserts) 130×100×50
1x32 / 2x32 (Inserts) 267×100×50

Product details:

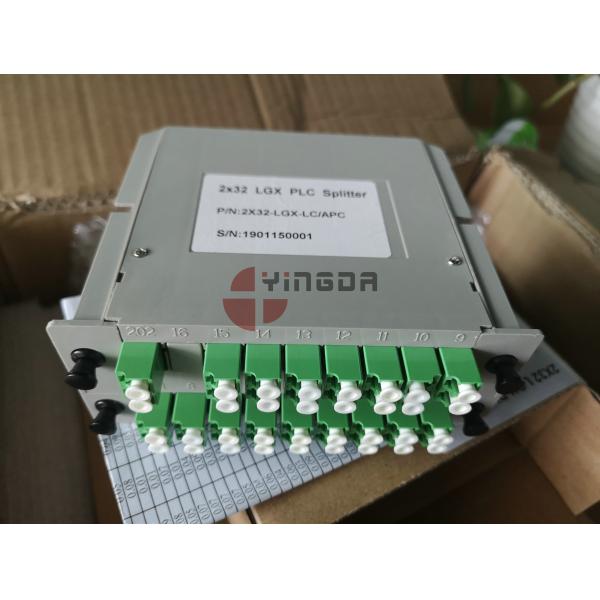

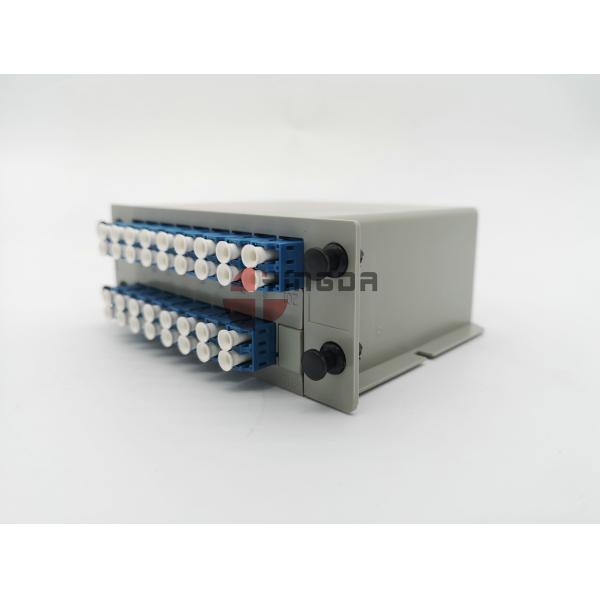

Box fully load with 2X32 LC UPC apdater and splitter as bleow:

1x32 2x32 Lgx Plc Splitter Fiber Optic Cable Single Mode With LC SC Couplers1x32 2x32 Lgx Plc Splitter Fiber Optic Cable Single Mode With LC SC Couplers

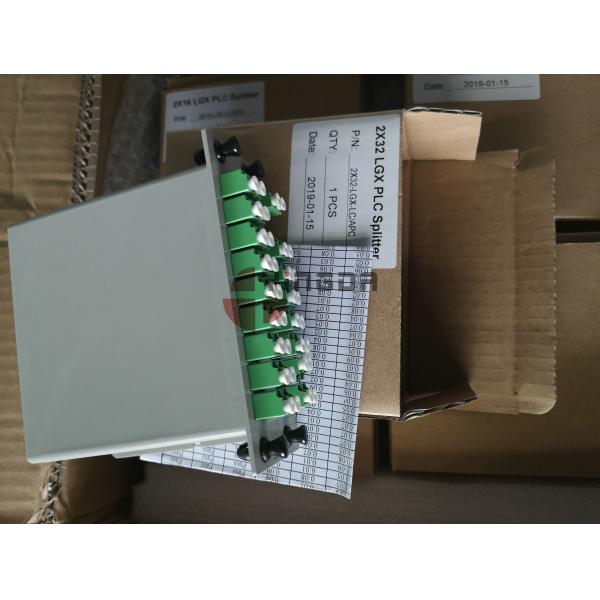

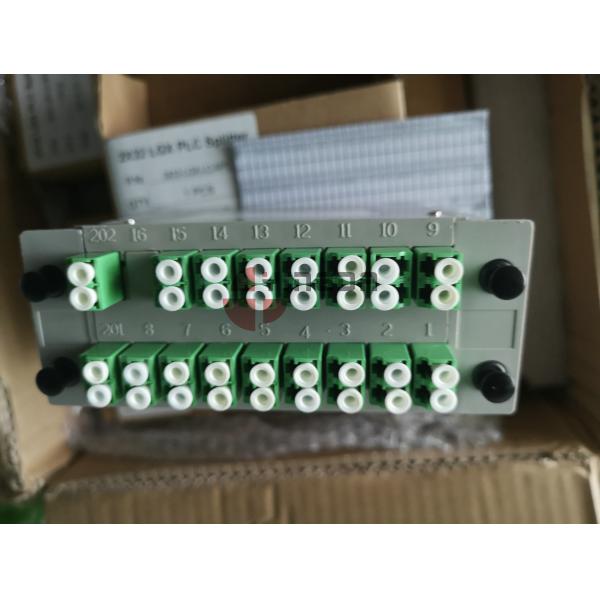

Box fully load with 2X32 LC APC apdater and splitter as bleow:

1x32 2x32 Lgx Plc Splitter Fiber Optic Cable Single Mode With LC SC Couplers1x32 2x32 Lgx Plc Splitter Fiber Optic Cable Single Mode With LC SC Couplers

1x32 2x32 Lgx Plc Splitter Fiber Optic Cable Single Mode With LC SC Couplers1x32 2x32 Lgx Plc Splitter Fiber Optic Cable Single Mode With LC SC Couplers

Application:

CATV/Telecom/LAN/WAN/Data Centers/Medical/Military/Wireless/Broadband

1x32 2x32 Lgx Plc Splitter Fiber Optic Cable Single Mode With LC SC Couplers

Order information:

PLC-LGX-XXX/XXX

- 1 / 2

PLC 1 Split ratio 2 connector in/out port
LGX Modular

102=1*2

104=1*4

...

SA=SC/APC

SU=SC/UPC

ST=ST

...
