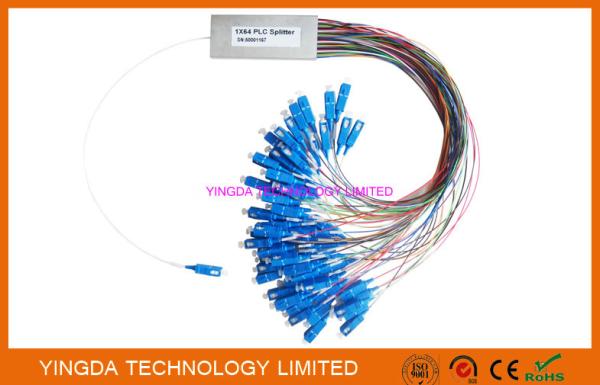

FTTH 1x64 PLC Splitter SC/APC Simiplex Connector Steel Tube LSZH G657A
FTTH 1x64 PLC Splitter SC/APC Simiplex Connector Steel Tube LSZH G657A
Specifications
Brand Name :
YINGDA
Model Number :
1x64 PLC Splitter
Certification :
ISO
Place of Origin :
china
MOQ :
100 pcs
Price :
1.1USD-4.58USD
Supply Ability :
10,000 pcs per month
Delivery Time :
5-8days after payment
Packaging Details :
2pc/ box, 20pcs/carton box
split ratio :
1X64 micro plc splitter
connector :
SC/APC simiplex
fiber type :
single mode G657A1
insertion loss :
20.4dB
Uniformity (Max.) :
2.0dB
wavelength :
1260 - 1650 nm
PDL(Max.) :
0.4dB
cable diameter :
0.9mm
cable color :
input white, output: colorful
Description

Fiber Optic Splitter PLC 1x64 Singlemode Steel Tube LSZH G657A,1:64 PLC Splitter SC Couplers

Description Of Fiber Optic PLC Splitter

PLC splitter is an optical power distribution device based on the integrated waveguide of quartz plate. With the features of small size, wide range of operating wavelength, stable reliability and good uniformity, It’s widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve the signal splitter.

Features

  • Bidirectional, Compact size
  • Low insertion loss, Low PDL and High reliability
  • High return loss and Good repeatability
  • Wide wavelength range
  • Excellent channel-to-channel uniformity
  • Telcordia GR-1221-Core Compliant
  • 1x2 through 1x64 Configurations

  • Good uniformity and low insertion loss

  • Low Polarization Dependent Loss

  • Excellent Environmental Stability


Applications

  • LAN, WAN and Metro Networks
  • FTTH project & FTTX Deployments
  • CATV System
  • GPON, EPON
  • Fiber Optic Test Equipment
  • Data-base Transmit Broadband Net


FTTH 1x64 PLC Splitter SC/APC Simiplex Connector Steel Tube LSZH G657AFTTH 1x64 PLC Splitter SC/APC Simiplex Connector Steel Tube LSZH G657A
Technical Specs for PLC Splitter with Fiber Optic Connectors
1xN splitter

Item 1x2 1x4 1x8 1x16 1x32 1x64 1x128
Fiber Type G.657A
Working Wavelength 1260nm~1650nm
Standard Insertion Loss(dB) ≤4.2 ≤7.6 ≤10.7 ≤14.0 ≤17.2 ≤20.8 ≤24.0
P-Grade Insertion Loss(dB) ≤4.0 ≤7.4 ≤10.5 ≤13.8 ≤17.0 ≤20.4 ≤23.7
Uniformity(dB) ≤0.6 ≤0.8 ≤0.8 ≤1.0 ≤1.5 ≤2.0 ≤2.0
PDL(dB) ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.4 ≤0.5
Wavelength Dependent Loss(dB) ≤0.6 ≤0.8 ≤0.8 ≤1.0 ≤1.5 ≤2.0 ≤2.0
Return Loss(dB) ≥50
Directivity(dB) ≥55
Operating Temp.Gange -40℃~+85℃
Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB.


2xN splitter

Item 2x2 2x4 2x8 2x16 2x32 2x64 2x128
Fiber Type G.657A
Working Wavelength 1260nm~1650nm
Standard Insertion Loss(dB) ≤4.4 ≤8.0 ≤11.0 ≤14.6 ≤17.8 ≤21.0 ≤24.4
P-Grade Insertion Loss(dB) ≤4.2 ≤7.7 ≤10.8 ≤14.1 ≤17.4 ≤20.7 ≤24.0
Uniformity(dB) ≤0.8 ≤1.0 ≤1.2 ≤1.5 ≤1.8 ≤2.0 ≤3.0
PDL(dB) ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.4 ≤0.5
Wavelength Dependent Loss(dB) ≤0.8 ≤1.0 ≤1.2 ≤1.5 ≤1.8 ≤2.0 ≤3.0
Return Loss(dB) ≥50
Directivity(dB) ≥55
Operating Temp.Gange -40℃~+85℃
Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB.


Encapsulation size

Item 1×2 1×4 1×8 1×16 1×32 1×64
Length*Width*Height(mm) 60×7×4 60×7×4 60×7×4 60×12×4 80×20×6 100×40×6
Item 2×2 2×4 2×8 2×16 2×32 2×64
Length*Width*Height(mm) 60×7×4 60×7×4 60×7×4 80×12×4 100×20×6 100×40×6


Order information


Port		 Fiber Input Pigtail Input Connector Input Pigtail
Length		 Output Pigtail Output
Connector		 OutputPigtail
Length
PLC 102=1x2
104=1x4
108=1x8
116=1x16
132=1x32
164=1x64
128=1x128
204=2x4
208=2x8
216=2x16
232=2x32
264=2x64		 1=G657A
2=G652D
SP=Special		 1=250um
Bare Fiber
2=900um
tight uffer
3=900um
loose tube
4=2.0mm
cable
5=3.0mm
cable
SP=Special		 NE=None
SU=SC/UPC
SA=SC/APC
LU=LC/UPC
LA=LC/APC
FU=FC/UPC
FA=FC/APC
SP=Special		 0=0.5m
1=1m
2=1.5m
3=2m
4=3m
SP=Special		 1=250um
Bare Fiber
2=900um
tight uffer
3=900um
loose tube
4=2.0mm
cable
5=3.0mm
cable
SP=Special		 NE=None
SU=SC/UPC
SA=SC/APC
LU=LC/UPC
LA=LC/APC
FU=FC/UPC
FA=FC/APC
SP=Special		 0=0.5m
1=1m
2=1.5m
3=2m
4=3m
SP=Speci

FAQ

Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Fiber Optic PLC Splitter.

Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.

Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.

Q1: How can I get your catalogue and price list?

A1: Please let us know your email or contact us from website directly for our catalogue and price list;
