FDB0224W is access terminal box for FTTH network. It connect feeder cable or distribution cable to subscriber’s drop cable with PLC splitter. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

FDB0224W Fiber Distribution Box Features

• Total enclosed with key and 2*buckles, square shape, light weight, compact size;
• High strength engineer plastic, wet-proof/water-proof/dust-proof, anti-aging, resistance to chemical and U.V attack;
• Clamp for feeder cable and drop cable, mix fiber splicing/ fixation/storage/distribution in one;
• Cable, pigtails are running through own path without disturbing each other;
• Distribution panel can be flipped up, 1X8,1x16 micro splitter with 24 SC adapter or pigtails are available;
• Fusion plate can be maximum 24cores splicing, large area for routing and storage;
• Feeder cable can be placed by expression port, easy for maintenance and installation;
• Outdoor Wall mount or pole mount, IP65 protection class
• Laser mark and logo print reserved on the lid

FDB0224W Fiber Distribution Box Specification

FDB0224W Fiber Distribution Box Standard Accessory: metal sheet +screws, key, nylon tie, cable clamps, sleeve,buffer tube

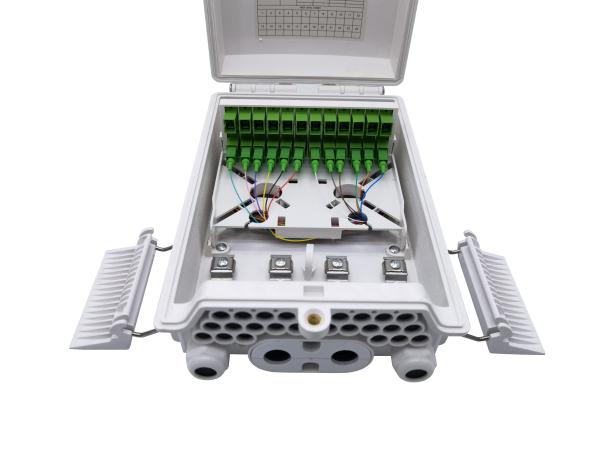

There are 24pc SC simplex adapter plates it can hold 24 sc adapters with flange, connected with 24 pcs Pigtails or ftth drop cable with fast connectors

At back of the tray, there is fusion splice and winding area for surplus fiber optic cables, it can hold max. 24 cores single fiber.

At the box bottom, there are cable winding fixtures around, and all items are fix on the box with screws, it is easy to do fiber management.

All cable inlets configure with metal cable fixtures and sealing kits,and cable outlets are with rubber seals with flat holes for 2x5mm drop cable, it is good choice for large capacity fiber distribution, splitting, splicing.
