Wall Mounting SC 2 Core Optical Fiber Terminal Connection Box with Waterproof Sealing and Rubber Seals
Wall Mounting SC 2 Core Optical Fiber Terminal Connection Box with Waterproof Sealing and Rubber Seals
Wall Mounting SC 2 Core Optical Fiber Terminal Connection Box with Waterproof Sealing and Rubber Seals
Wall Mounting SC 2 Core Optical Fiber Terminal Connection Box with Waterproof Sealing and Rubber Seals
Wall Mounting SC 2 Core Optical Fiber Terminal Connection Box with Waterproof Sealing and Rubber Seals
Wall Mounting SC 2 Core Optical Fiber Terminal Connection Box with Waterproof Sealing and Rubber Seals
Wall Mounting SC 2 Core Optical Fiber Terminal Connection Box with Waterproof Sealing and Rubber Seals
Wall Mounting SC 2 Core Optical Fiber Terminal Connection Box with Waterproof Sealing and Rubber Seals
Specifications
Brand Name :
YINGDA
Model Number :
FDB6001 (GP62DW-9)
Certification :
ISO SGS CE ROHS
Place of Origin :
china
MOQ :
10 PCS
Price :
NEGOTIABLE
Payment Terms :
Western Union, T/T, L/C
Delivery Time :
5-8 working days
Packaging Details :
1 pc per box, 30 pcs per carton shipping box
Capacity :
2 Cores
Cable ports :
3 pcs
Dimension :
150*120*37mm
Material :
ABS
Color :
white
Application :
FTTH FTTX ODN,PON network
adapter :
2 SC simplex adaptors
application :
outdoor wall mount, pole mount
feature :
waterproof
Sealing method :
rubber seals
Description

FDB6001 terminal box is a compact fiber terminal box for use at the final fiber termination point outside the wall of customer premises. It provides good fiber protection and convenient connectivity for the end users.

FDB6001 Fiber Terminal Box Features

  • This box could be used for outdoor wall mounted applications
  • Cable ener from bottom
  • Support field assembly or fusion splice
  • Box and key design is easy for operation with complete functions of small size
  • It could be used for adaptors such as SC(up to 2 pcs) or LC (up to 4 pcs)
  • It could load 1:2 mini type plc 1unit
  • Protect level:IP65

FDB6001 Fiber Terminal Box Specification

Model FDB6001
Dimension (W*D*H) 150*120*37mm
Max.Capacity 2 core (single fiber)
Cable ports 1in 2out
Cable diameter Φ12mm
Splitter quantity 1pc 1x2(SC) or 1x4(LC) steel tube

FDB6001 Fiber Terminal Box Component kits:

Item no. Description Qty
1 Box body 1pc
2 Box cover 1pc
3 Hasp 2pcs
4 Sealing ring 2pcs
5 Sealing plug 2pcs
6 Sc/apc adapter 1pc

Wall Mounting SC 2 Core Optical Fiber Terminal Connection Box with Waterproof Sealing and Rubber Seals

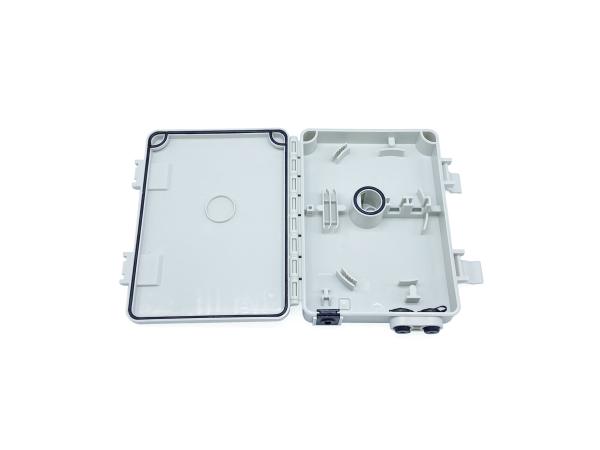

simple structure, compact size, internal have deisgn for cable winding, fusion splicing slots for heat shrink protection tubes, and 2 adapter slot for sc simplex without flange.

Wall Mounting SC 2 Core Optical Fiber Terminal Connection Box with Waterproof Sealing and Rubber Seals

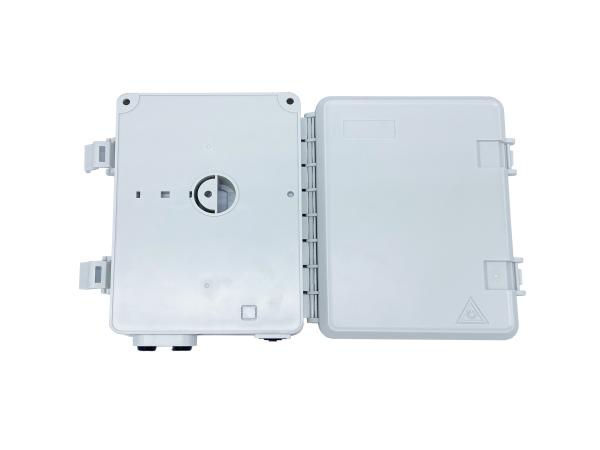

The bottom and cover is connected with hinge, not separate. the cable inlet and outlets are all sealed with rubber, waterproof and dustproof.
