MINI Fiber Optic Splice Closure ABS 24cores With Lock Panel In IP68 For FTTH FTTX
MINI Fiber Optic Splice Closure ABS 24cores With Lock Panel In IP68 For FTTH FTTX
MINI Fiber Optic Splice Closure ABS 24cores With Lock Panel In IP68 For FTTH FTTX
MINI Fiber Optic Splice Closure ABS 24cores With Lock Panel In IP68 For FTTH FTTX
MINI Fiber Optic Splice Closure ABS 24cores With Lock Panel In IP68 For FTTH FTTX
MINI Fiber Optic Splice Closure ABS 24cores With Lock Panel In IP68 For FTTH FTTX
MINI Fiber Optic Splice Closure ABS 24cores With Lock Panel In IP68 For FTTH FTTX
MINI Fiber Optic Splice Closure ABS 24cores With Lock Panel In IP68 For FTTH FTTX
Specifications
Brand Name :
YINGDA
Model Number :
GJS-206M
Place of Origin :
China
Certification :
CE,ISO
MOQ :
10pcs
Price :
Negotiation
Packaging Details :
1pc/bag
Delivery Time :
5-7 working days
Payment Terms :
TT 100%
Supply Ability :
10000per month
Seal :
Heat shrinkable
Closure Dimension :
100mm X 330mm
Package :
Carton/Box

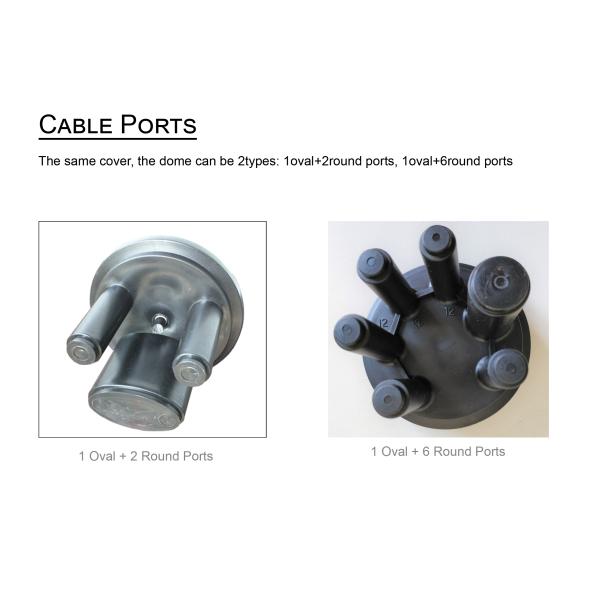

Cable Ports :
1IN 2OUT Ports
Shell :
ABS
Cable Capacity :
24 Core
Network :
FTTH FTTX
Waterproof :
IP68
Description

Product Description:

GJS-206M: A Conformant FOSC for China's Communications Industry

The GJS-206M is a fiber optic splice closure that meets the standards and regulations of China's communications industry, as specified by YD/T814-2004. Its design and features come together to make it an ideal fit for use in various environments, such as ducts, buried installations, and overhead installations.

Features of GJS-206M
  • 1.1 The closure can be used in duct, buried, overhead, and other installations efficiently.
  • 1.2 It is made from high-quality impact material PP, and the internal components are made of ABS.
  • 1.3 It is designed to support ftth with adapter if required.
  • 1.4 The GJS-206M has a large fiber storage basket.
  • 1.5 The GJS-206M features a modular fiber management system.
  • 1.6 It can accommodate cable diameters ranging from 8mm to 23mm.
  • 1.7 The GJS-206M is sealed using a combination of heatshrink seal cable port and mechanical shell.
  • 1.8 The product comes with a 2-year quality warranty.
  • 1.9 The GJS-206M has a life span of more than 25 years, offering long-term reliability.
  • 1.10 It is rated IP68 for superior protection against dust and water.

The GJS-206M's wide range of features make it a great option for anyone looking for a reliable and durable fiber optic splice closure. Its design and materials also provide peace of mind, as it conforms to the standards required by China's communications industry.

MINI Fiber Optic Splice Closure ABS 24cores With Lock Panel In IP68 For FTTH FTTX

Features:

Environment

The temperature range for this equipment is between -30℃ to 60℃, while the atmospheric pressure should be maintained within the range of 70-106Kpa.

Life Span

With a life span of more than 25 years, this equipment is made to last.

Material

The material used in the construction of this equipment is high strength polypropylene (PP). This ensures durability and longevity.

Technical Parameters:

Attribute Value
Type Horizontal
Item Fiber Optic Splice Closure 1IN-2OUT
Closure Dimension 100mm X 330mm
Cable Capacity 24 Core
Waterproof IP68
Seal Lock Panel With Pressure
Package Carton/Box
Shell ABS
Application Outdoor Or Indoor Fiber Optic Cable Splicing
Installation Method Pole mounted, Aerial mounted kits
MINI Fiber Optic Splice Closure ABS 24cores With Lock Panel In IP68 For FTTH FTTXMINI Fiber Optic Splice Closure ABS 24cores With Lock Panel In IP68 For FTTH FTTXMINI Fiber Optic Splice Closure ABS 24cores With Lock Panel In IP68 For FTTH FTTX

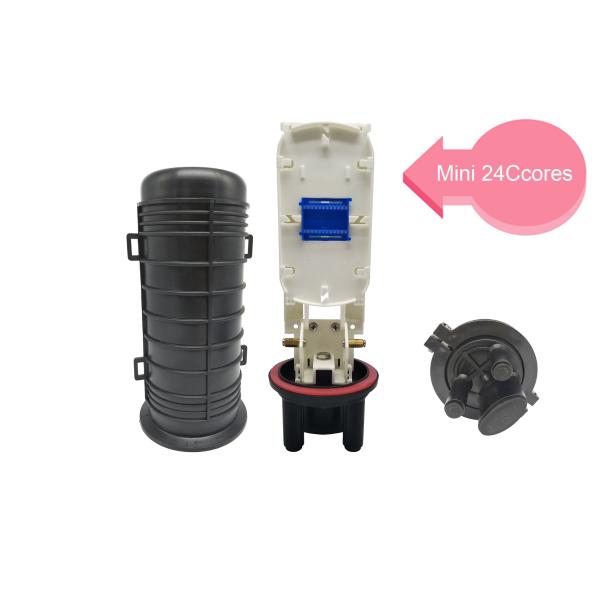

The cable storage plate is the same size as the splice tray, but deeper and there are 4pcs SC adapter slots, then it can meet FTTH application, and bring the fiber optic cable to end customers, and drop cable with fast connectors are available.

MINI Fiber Optic Splice Closure ABS 24cores With Lock Panel In IP68 For FTTH FTTX
