Specifications
Brand Name :
YINGDA
Model Number :
MPO/M-FC-12F
Certification :
ISO CE
Place of Origin :
china
MOQ :
100 pcs
Price :
0.2USD-100USD
Payment Terms :
Western Union, T/T
Supply Ability :
10,000 pcs per month
Delivery Time :
3-5days after payment
Packaging Details :
1 pc/ box, 160 pcs/carton box

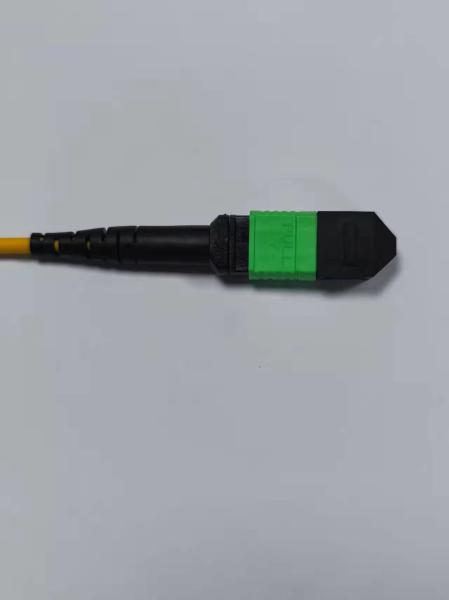

connector :
MPO Male connector
fiber type :
G657A2 single mode
breakout kit :
round black plastic
fiber count :
12 cores bundle cable
Insertion loss :
<0.7dB
cable :
round 3mm yellow
Material :
LSZH
Type :
Fanout patch cord
Length :
2m 5m 10m...
Description

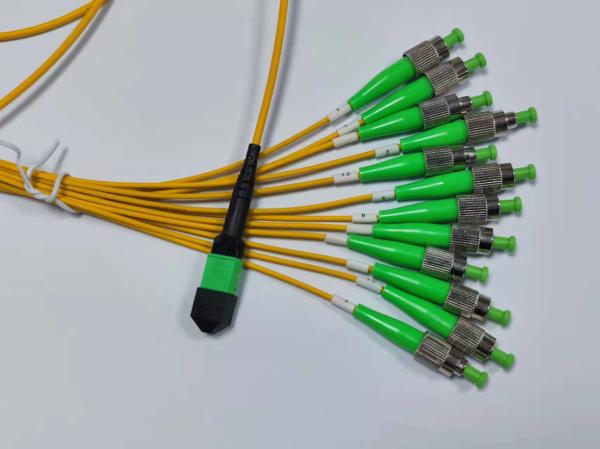

12 Fiber MPO APC Male to FC APC Fanout Patch Cord Single Mode 9/125um Breakout Yellow​
12 Fiber MTP MPO Cable With APC Male To FC APC Fanout Patch Cord For High Density Applications12 Fiber MTP MPO Cable With APC Male To FC APC Fanout Patch Cord For High Density Applications

MPO/MTP fanout assembly are designed for high denstity applicatino with require high performance and speedy installation. MPO/MTP fanout assemblies are numbered for full trace ability.

Available in 12core configuration, these space saving assemblies comes with either MTP male or MTP female connectors on one end and LC SC FC MTRJ connectors on ther other end. They are available in lengths are 10 20 30 meters, custom length can be customized. They are available in 4 8 12 fiber ribbon configurations.

Specification

Parameter

Polishing Connector (A)

Polishing Connector (B)

Polishing Connector

MPO (MM)

MPO APC

SM (SC, LC, FC, MT-RJ)

MM (SC, LC, FC, MT-RJ)

Insertion Loss (IL)

< 0.50 dB

< 0.50 dB

< 0.50 dB

< 0.50 dB

Return Loss (RL)

> 30dB

> 60dB

> 50dB

> 35dB

Mating Cycles Delta IL

< 0.2 dB after 500 mating cycles

Fiber Cable Type

Single mode: G652D or G657A;
Multi mode: OM1, OM2, OM3;

Cable Color

Yellow for SM G652 and G657A fiber;
Orange for MM OM1 and OM2 fiber;
Aqua for MM OM3 fiber;

Cable Jacket

Ribbon / Fan-out (LSZH / PVC)

Patch Cord Pull-out Force

5N

Operating Temperature

-20°C~+70°C

Storage Temperature

-40°C~+80°C

12 Fiber MTP MPO Cable With APC Male To FC APC Fanout Patch Cord For High Density Applications

12 Fiber MTP MPO Cable With APC Male To FC APC Fanout Patch Cord For High Density Applications

12 Fiber MTP MPO Cable With APC Male To FC APC Fanout Patch Cord For High Density Applications

12 Fiber MTP MPO Cable With APC Male To FC APC Fanout Patch Cord For High Density Applications

Application:
Data center
12 Fiber MTP MPO Cable With APC Male To FC APC Fanout Patch Cord For High Density Applications

Factory picture:
12 Fiber MTP MPO Cable With APC Male To FC APC Fanout Patch Cord For High Density Applications
12 Fiber MTP MPO Cable With APC Male To FC APC Fanout Patch Cord For High Density Applications
12 Fiber MTP MPO Cable With APC Male To FC APC Fanout Patch Cord For High Density Applications

Bare Fiber Colors

No

8 Ribbon fiber

No

12 Ribbon fiber

1

Blue

1

Blue

2

Orange

2

Orange

3

Green

3

Green

4

Brown

4

Brown

5

Gray

5

Gray

6

White

6

White

7

Red

7

Red

8

Black

8

Black

9

Yellow

9

Yellow

10

Violet

10

Violet

11

Pink

11

Pink

12

Aqua

12

Aqua


Order information

P/N

Description

MPOm-12FC-OM1

MPO Fan-out patch cord, OM1 (62.5/125um),
MPO Male-12xFC UPC 1m Orange

MPOm-62FC-OM1

MPO Fan-out patch cord, OM1 (62.5/125um),
MPO Male-6xDuplex FC UPC 1m Orange

MPOm-12FC-OM2

MPO Fan-out patch cord, OM2 (50/125um),
MPO Male-12xFC UPC 1m Orange

MPOm-62FC-OM2

MPO Fan-out patch cord, OM2 (50/125um),
MPO Male-6xDuplex FC UPC 1m Orange

MPOm-12FC-OM3

MPO Fan-out patch cord, OM3 (50/125um),
MPO Male-12x FC UPC 1m Orange

MPOm-62FC-OM3

MPO Fan-out patch cord, OM3 (50/125um),
MPO Male-6xDuplex FC UPC 1m Orange

MPOm-12FC-OM4

MPO Fan-out patch cord, OM4,
MPO Male-12x FC UPC 1m Orange

MPOm-62FC-OM4

MPO Fan-out patch cord, OM4,
MPO Male-6xDuplex FC UPC 1m Orange

MPOm-62FC-OM1-U

MPO Fan-out patch cord, OM2 (50/125um),
MPO Male-6xDuplex FC UPC 1m Orange uni-boot

MPOm-62SC-OM2-U

MPO Fan-out patch cord, OM1 (62.5/125um),
MPO Male-6xDuplex FC UPC 1m Orange uni-boot

MPOm-62FC-OM3-U

MPO Fan-out patch cord, OM3 (50/125um),
MPO Male-6xDuplex FC UPC 1m Orange uni-boot

MPOm-62FC-OM4-U

MPO Fan-out patch cord, OM4
MPO Male-6xDuplex FC UPC 1m Orange uni-boot
