FTTH drop cable type fiber optic splice & splitter closure features with ruggedness, which is tested under harsh conditions and stand up to even the most severe conditions of moisture, vibration and extreme temperatures. Humanized design help user get better experience.

Features

• Dis-mountable adaptor panel
• Support midspan termination
• Easy operation and installation
• Rotable and dis-mountable splice tray for easy splicing
• Outdoor wall mounting and pole mounting
• 2x3mm indoor ftth drop cable and outdoor figure 8 ftth drop cable

Applications

Ø Outdoor wall mounting, pole mounting, pipe-lined

Ø 2*3.0mm indoor FTTH drop cable and outdoor figure 8 FTTH drop cable

Product Details

Lock system is 2 buckle screws at both sides with 3pcs Hexagonal screws, which ensure the good performance of waterproof. Top cover wit strength lines and laser mark. If customer need print logo, it is ok.

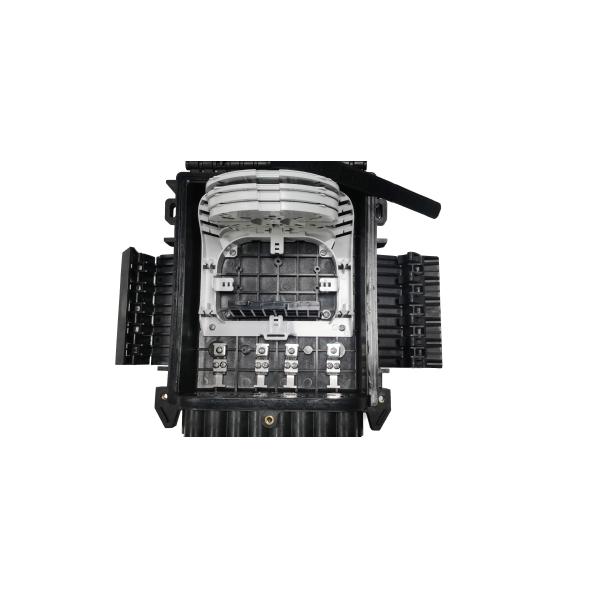

Internal is with 4pcs splice trays, 2 are higher, 2 are thinner. All for fusion splice or splitter. There are 16pcs SC adapters holder too.

There are 4sets of cable fixture for feeder cable enter the box, cable clamps can put on it. All the metal parts are stainless steel.

The cable ports are the same as FDB0216F splice closure, 1uncut port, 2 cable glands and 16pcs drop cable ports.

It can use for 2mm, 4mm, or 7mm drop cable, different rubber seals and cable exit fixture.

The whole internal part is with a white base, which is install on bottom with screws, and at boths sides, there is cable wiring guide lines.

Mounted method

Pole mounted,wall mounted

Accessories

Standard Accessories

Splice cassette and cable management tool, installation nuts and bolts protection sleeves,
hose clamp, cable tube, wreach, cover holder, rubber seal for cable entrance.

Optional Accessories

Pole ring
