Specifications
Brand Name :
filamentlux
Model Number :
FML-LV-COB-IP20-10W
Certification :
CCC, ce, CQC, EMC, ETL, LVD, PSE, RoHS, SASO, VDE
Place of Origin :
China
MOQ :
3000PCS
Price :
USD0.32-USD0.52
Payment Terms :
T/T or L/C
Supply Ability :
500kpcs per month
Delivery Time :
20-25days
Packaging Details :
Color box or Blister
Lamp Power :
10W/12W
Working Temperature(℃) :
-20 - 60
Working Lifetime(Hour) :
50000
Lamp Body Material :
FPCB, Double PCB, 3ounce PCB
LED Light Source :
COB1030
Emitting Color :
Warm Light /White Light/Blue/Red/Yellow/RGB/Changeable/Green/Others
Product Name :
Led Light Strips
LED Quantity :
320leds/m
IP Rating :
IP20/IP44/IP65/IP68
MOQ :
500mts
Packing Size :
40pcs/ctn, 48*23*25cm
Feature :
Easy Installation
CRI :
≥80,95,98
PCB Width :
8mm/10mm
Input Voltage(V): :
DC24V
Warranty(Year) :
2-3 years
Description

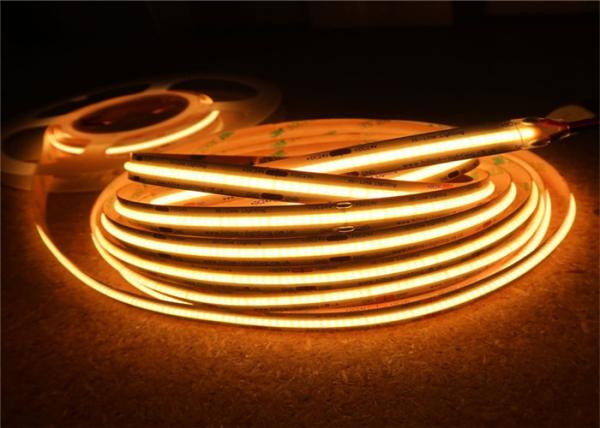

Indoor Consistent 12W/M CRI80 IP33 8mm COB 3000k Led Strip Light

It is very Soft and Flexible that you can bend it from 0 - 180 degrees. Our LED lights strip have a stronger 3M adhesive that is suitable to any dry, clean and flat surface. Please notice that working voltage is DC24V and power is 24W. The Self-adhesive light strip could be cuttable, weldable (please along each solder joints), so you can use it to DIY unique decorations by yourself.

The LED Linear Tape Light is very cool for decorating and lighting, you can install on Car, Cruise, Ship, Billboard, Bedroom,TV back light, Bar, KTV, Party, Wedding and Christmas or everywhere you want to install, and invite your friends with you together to enjoy the light-hearted, alive and amazing atmosphere. Install it Now !

Flexible and convenient installation, Minor modifications to the walls. High quality material, Zinc alloy+stainless steel composition, Strong and durable not easy to deformation. Fixed rod can be adjusted by 45°,More possibilities, Suitable for direct, Indirect lighting, Wall washing lighting and other applications. Steel strip can up to 25M, Which can perfectly adapt to the lighting decoration of large space. DC12V / 24V LED COB soft & flexible light strip; Easy to connect and install that can be freely cut; No light spot and soft light; 80° High brightness, low light decay, low power consumption; The heat dissipation effect is excellent, better than the SMD LED light strip.

24V COB LED STRIP LIGHT Quick Details:

  • Lamp Power: 10W/12W
  • Working Temperature(℃): -20 - 60
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: FPCB, Double PCB, 3ounce PCB
  • Certification: CCC, ce, CQC, EMC, ETL, LVD, PSE, RoHS, SASO, VDE
  • Model Number: FML-LV-COB-IP20-10W
  • LED Light Source: COB1030
  • Emitting Color: Warm Light /White Light/Blue/Red/Yellow/RGB/Changeable/Green/Others
  • Product Name: Led Light Strips
  • LED Quantity: 320leds/m
  • IP Rating: IP20/IP44/IP65/IP68
  • MOQ: 500mts
  • Packing Size: 40pcs/ctn, 48*23*25cm
  • Feature: Easy Installation
  • CRI: ≥80,95,98
  • PCB Width: 8mm/10mm
  • Input Voltage(V): DC24V
  • Warranty(Year): 2-3 years

24V AC LED STRIP LIGHT Parameters:

ITEM NO. FML-LV-COB-IP20-10W
INPUT VOLTAGE 24V
FREQUENCY 50Hz
INPUT CURRENT /
RATED POWER 12W±10%/m
PF >0.9
Luminous Flux ≥1050LM
LPW ≥90lm/W
CCT 2800-3200k,4000-4500K,6000-6500K
Ra ≥80
SDCM <7 SDCM
Working condition -10℃~40℃;10%~90%
Insulate class II
Install method Clip
Driver connection Plug in-off
Dimmer /
Cover/color /
NET weight(100m) 12kg
Inner box /
Master carton 480mm × 230mm ×250mm
Packing 200M/CTN
Lifetime 25000h
Warranty 2 years
PCB Width 8mm/10mm
IP Rating IP20/IP65/IP67/IP68
Product Application

1. Lighting the city skyline, such as buildings, advertising walls, signs, Christmas decorations......

2.Decoration of irregular design body, such as a polygonal wall,water drop, and ceiling groove design of hotel/night club/KTV ......
3. Home dark groove edge, such as door frame, bar, wine cabinet, wardrobe, TV cabinet......
4. Car beauty, such as body and underside......

1) Pay attention +/- when SMT

2) LED SMT need to be tidy and without weak soldering

3) Smooth soldering point and clean LED

4) No any scar in the PCB

5) Can not see any color and brightness difference when by the naked eye

Indoor Consistent 12W/M CRI80 IP33 8mm COB 3000k Led Strip Light

Indoor Consistent 12W/M CRI80 IP33 8mm COB 3000k Led Strip Light

Indoor Consistent 12W/M CRI80 IP33 8mm COB 3000k Led Strip Light

Indoor Consistent 12W/M CRI80 IP33 8mm COB 3000k Led Strip Light

Indoor Consistent 12W/M CRI80 IP33 8mm COB 3000k Led Strip Light

Indoor Consistent 12W/M CRI80 IP33 8mm COB 3000k Led Strip Light
