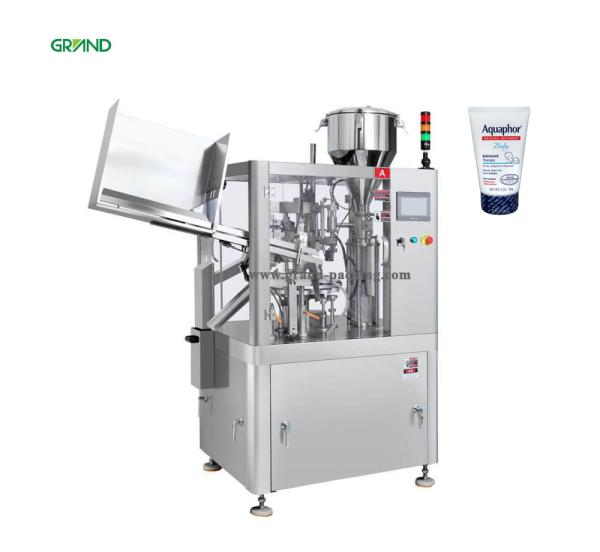

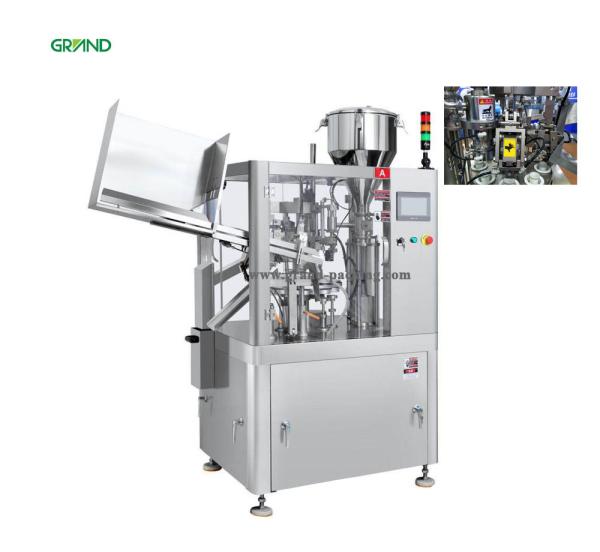

ZHY-60YP Automatic tube filling sealing machine for toothpaste/cream/cosmetic

Application range of the machine:

Tube filling and sealing machine is used for cosmetics industry, light industry (daily-use chemical industry), pharmaceutical industry, food industry and other industries. The machine is suitable for products which choose tubes as packaging containers. The equipment fills such materials as ointments, creams, gels or fluids with high viscosity into the tube, then folds and seals the tail of the tube, and prints the word code on the tube to produce the finished product.

Application range of packaging material and filling material:

1) Plastic tubes, composite tubes.

2) Ointments, creams, gels, and fluids with high viscosity.

Features

The drive part is fully closed under the operation platform, safe and reliable without pollution;
Stainless steel operation panel with touch switch;
Two hanging types of tube bin: inclined or direct, either of them is optional;
The arc handrail is equipped with vacuum suction device. After the interaction between it and tube pressing device, the tubes will be charged into the tube feeding station;
At photoelectric tracking station, it adopts high-precision detector and stepper motor to control the tube pattern in right position;
After filling, the air blowing device will blow off the residual paste at the end of the tube;
No tube, no filling;
The internal part of tube tail adopts Leister hot air generator to heat for sealing while the external part is equipped with cooling device to reduce temperature;
Print the character code in right position as the process required at coding station;
The shaping manipulator cuts the tube tail into right angle or rounded angle for choice;
Alarm for any fault and stop for overload;
It can count and stop for certain quantity.

Main technical parameter

Pictures

Sample

About us

FAQ

A) What does your factory produce?
Our factoru is specialized in the pharmaceutical and packing machineries for almost 20 years. Such as capsule filling machine, blister packing machine, strip packaging machine and cartoning machine etc.

B) What's the production date of your machine?
Normally the machine production date is around 30-4- working days.

C) Can you customize the machine for customer?
Yes, we can customize the machine to meet the different requirements of customers.

D) How do you deal with the quantity complaint?
First of all, we will set the machine well with the materials set from customer before delivery, and our quality control department will also inspect carefully before delivery to reduce the possibility of quality problem to be zero. But if there is really a problem caused by us, we will send you free parts or refund your loss.
