Hand Cream Semi Automatic Tube Filling And Sealing Machine , Plastic Tube Sealing Machine
Hand Cream Semi Automatic Tube Filling And Sealing Machine , Plastic Tube Sealing Machine
Hand Cream Semi Automatic Tube Filling And Sealing Machine , Plastic Tube Sealing Machine
Hand Cream Semi Automatic Tube Filling And Sealing Machine , Plastic Tube Sealing Machine
Specifications
Brand Name :
Grand Packing
Model Number :
NF-30
Certification :
CE
Place of Origin :
Zhejiang, China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
35sets per month
Delivery Time :
35 working days upon receipt of payment
Packaging Details :
packed in standard exporting woodcase
Product name :
NF-30 Semi-automatic Tube filling and sealing machine for hand cream
Filling volume :
1-250 ml/tube
Capacity :
1-20 tube/min
Measurement accuracy :
<=±1%
Power :
3KW 220V/380V
Weight :
350kg
Overall Dimension :
1200X800X1450 (mm)
Working pressure :
>0.4Mpa
Description

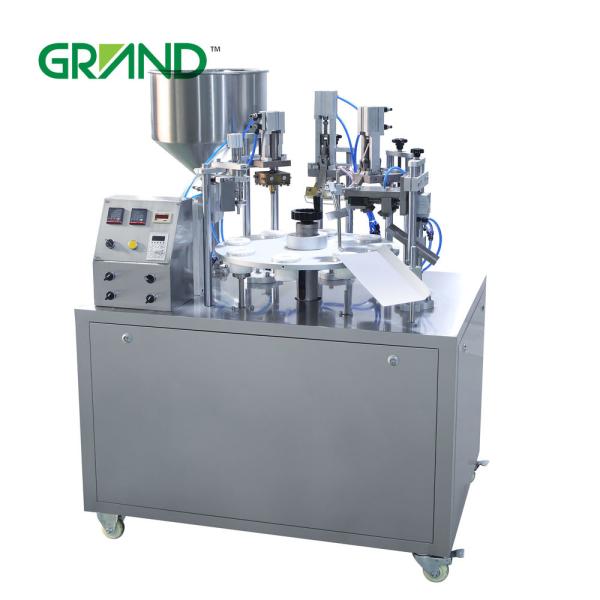

NF-30 Semi-automatic Tube filling and sealing machine for hand cream

Main technical parameters

1. Power: ~220V±10%
2. Power consumption: 350W × 2 250W × 2
3. Filling volume: 0~250 (ml)
4. Production capacity: 0~20 pieces
5. Measurement accuracy: ±1%
6. Dimensions: 1200X800X1450 (mm)
7. Machine weight: 350kg
8. Working pressure: >0.4Mpa

Features:


※ Parts in contact with materials are made of 304 stainless steel;
※ Connection of each component is in the form of fast assembly, which is easy to be disassembled and cleaned;
※ It uses high quality pneumatic components.
※ A blowing device is added at the tail to prevent the accumulating of tailing on the workbench.

Overview:

NF-30 Composite soft tube filling and sealing machine is mainly used for the primary transmission principle. The indexing mechanism is used to drive the rotary table equipped with the clamp for intermittent movement, so as to complete a series of functions such as automatic filling, internal and external heating, sealing, pressing, turn-cutting, and finished product exit. The filling measurement is accurate, the heating time is stable, adjustable, and the sealing tail is beautiful, neat, firm and sanitary. The cutting is smooth. 8 stations are set in this machine, excepting for the manual processing, other processes can be completed automatically. The whole machine runs smoothly and reliably without noise and other pollution.

Application:

It is widely used in the cosmetics industry, pharmaceutical industry, adhesive industry, shoe polish industry and other related industries.

Details Show:

Hand Cream Semi Automatic Tube Filling And Sealing Machine , Plastic Tube Sealing MachineHand Cream Semi Automatic Tube Filling And Sealing Machine , Plastic Tube Sealing Machine
