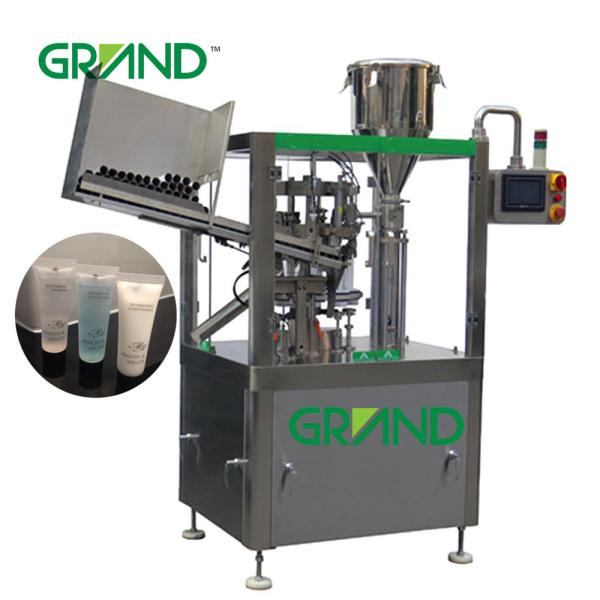

Soft Tube Filling Sealing Machine Vertical Cosmetics Ointment Plastic ZHY-YP60
Soft Tube Filling Sealing Machine Vertical Cosmetics Ointment Plastic ZHY-YP60
Soft Tube Filling Sealing Machine Vertical Cosmetics Ointment Plastic ZHY-YP60
Soft Tube Filling Sealing Machine Vertical Cosmetics Ointment Plastic ZHY-YP60
Soft Tube Filling Sealing Machine Vertical Cosmetics Ointment Plastic ZHY-YP60
Soft Tube Filling Sealing Machine Vertical Cosmetics Ointment Plastic ZHY-YP60
Specifications
Brand Name :
Grand Packing
Model Number :
ZHY-60
Certification :
CE
Place of Origin :
Zhejiang, China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
25sets per month
Delivery Time :
35 working days upon receipt of payment
Packaging Details :
packed in standard exporting woodcase
Product name :
ZHY-YP60 Vertical Cosmetics Ointment Plastic Soft Tube Filling And Sealing Machine
Filling volume :
5-250 ml/tube
Tube diameter :
12-50 mm
Capacity :
40-50 tube/min
Filling error :
<=±0.5%
Power :
3KW 220V/380V
Weight :
750kg
Overall Dimension :
1950*760*1850 (mm)(LxWxH)
Description

ZHY-YP60 Vertical Cosmetics Ointment Plastic Soft Tube Filling And Sealing Machine

Machine introduction

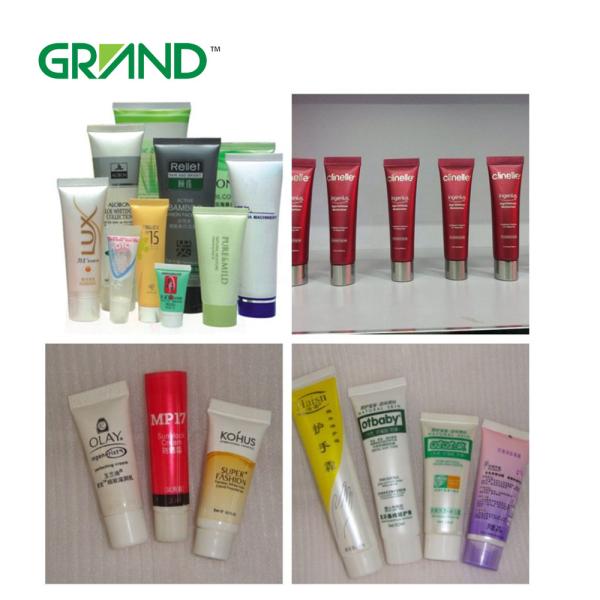

Tube filling sealing machine is suitable for filling all kinds of pasty and high viscous fluid and for large diameter plastic and composite tubes and then internally heating tubes, sealing and printing lot number and date. It is used in the industries of pharmaceutics, foodstuff, cosmetic and bond and so on.

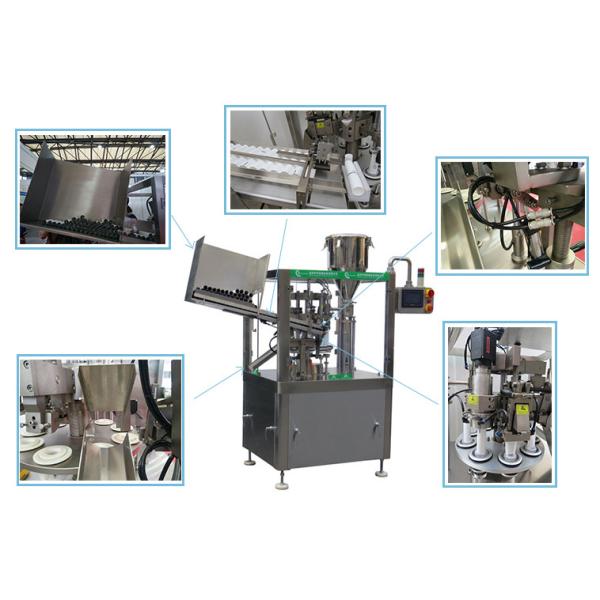

Features

* The drive part is fully closed under the operation platform, safe and reliable without pollution;

* Stainless steel operation panel with touch switch;

* Two hanging types of tube bin: inclined or direct, either of them is optional;

* The arc handrail is equipped with vacuum suction device. After the interaction between it and tube pressing device, the tubes will be charged into the tube feeding station;

* At photoelectric tracking station, it adopts high-precision detector and stepper motor to control the tube pattern in right position;

* After filling, the air blowing device will blow off the residual paste at the end of the tube;

* No tube, no filling;

* The internal part of tube tail adopts Leister hot air generator to heat for sealing while the external part is equipped with cooling device to reduce temperature;

* Print the character code in right position as the process required at coding station;

* The shaping manipulator cuts the tube tail into right angle or rounded angle for choice;

* Alarm for any fault and stop for overload;

* It can count and stop for certain quantity.

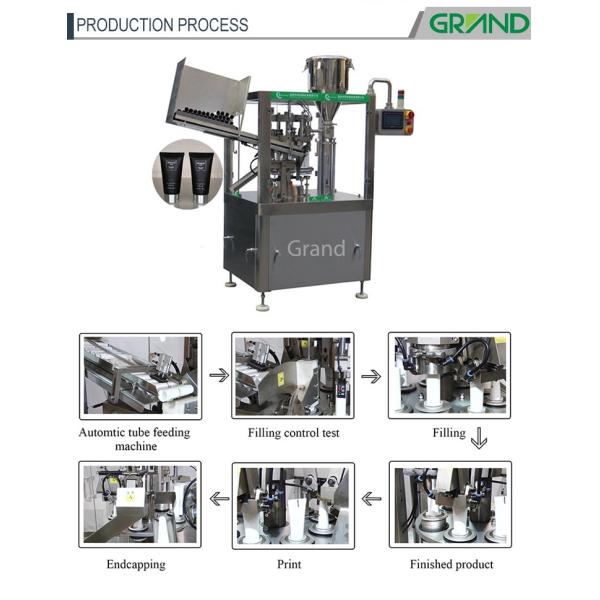

Working process:

Tube warehouse (container holding tubes)→Automatically feeding tubes →Identifying marksfor positioning →Filling detection + Quantity control + [Internal cleaning of tubes(option)] →Filling →Flattening tail →The first fold of 180°→The second fold of 180°→Saddle-shaped fold →Tail-shaping →Printing word code →Outputting finished product

Soft Tube Filling Sealing Machine Vertical Cosmetics Ointment Plastic ZHY-YP60Soft Tube Filling Sealing Machine Vertical Cosmetics Ointment Plastic ZHY-YP60

Main Technical Parameters

Plastic tube material Plastic tube, composite tube
Filling range 2ml-250ml/piece (Adjustable)
Filling precision ≤±1%
Running speed 40-50 pieces/min
Plastic tube diameter Φ10-Φ50mm
Plastic tube length 50-200mm (Max.length)
Overall dimension (L*W*H) 2000*950*1900mm
Machine weight 850kg
Matchingmotor powder 7kw

Soft Tube Filling Sealing Machine Vertical Cosmetics Ointment Plastic ZHY-YP60Soft Tube Filling Sealing Machine Vertical Cosmetics Ointment Plastic ZHY-YP60
