Jam/Honey/Butter Blister Packing Machine
Jam/Honey/Butter Blister Packing Machine
Jam/Honey/Butter Blister Packing Machine
Jam/Honey/Butter Blister Packing Machine
Jam/Honey/Butter Blister Packing Machine
Jam/Honey/Butter Blister Packing Machine
Jam/Honey/Butter Blister Packing Machine
Jam/Honey/Butter Blister Packing Machine
Specifications
Brand Name :
Grand Packing
Model Number :
DPP-150
Certification :
CE
Place of Origin :
Zhejiang, China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
35 sets per month
Delivery Time :
20-35 working days upon receipt of payment
Packaging Details :
Blister packing machine will be packed in standard exporting woodcase
Product name :
DPP 150 Automatic jam/honey/butter packaging small blister packing machine
Max. Forming Area :
130*100 mm
Cutting Frequency :
10-35 times/min
Stroke Range :
50~120 mm
Plate Size :
80*57 mm
Packaging Material :
Alu,PVC/PET
Weight :
820 kg
Overall Dimension :
2500*800*1780 (mm)(L*W*H)
Description

DPP 150 Automatic jam/honey/butter packaging small blister packing machine

Features

1. It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
2. Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user’s requirement. It adopts imported frequency inverter.
3. It adopts photoelectrical controlling system to make PS, PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
4. It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
5. The machine is suitable for industries of foodstuff, medicine, medical instruments, hardware, electronics and etc for packing.

Main Technical Parameters

Model

DPP-150

Punch frequency

10-35times/min

Production capacity

1200-4200 plates/hour

Max. Forming area & Depth

130x100, Max. Depth 26mm( customizee)

Standard Stroke range

50-120mm(can be designed as per user’s required)

Standard plate size

80x57mm (can be designed as per user’s required)

Air pressure

0.4-0.6 Mpa

Compressed air required

Air compressor≥0.3m3/min

Total power supply

380V/220V 50Hz 2.8Kw

Main motor

1.5 Kw

PVC hard Film

0.15-0.5*150 (mm)

PTP Aluminum film

0.02-0.035*150 (mm)

Dialysis Paper

0.02-0.035*150(mm)

Mould cooling

Tap water or Recycling water

Overall Dimension

2500x8000x1780 (mm)(LxWxH)

Weight

Net 820 kg Gross weight: 890kg

Noise index

<75dBA

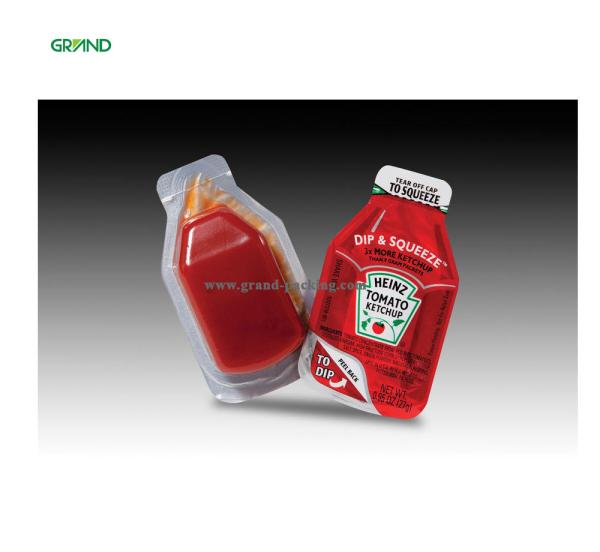

Sample
Jam/Honey/Butter Blister Packing Machine
