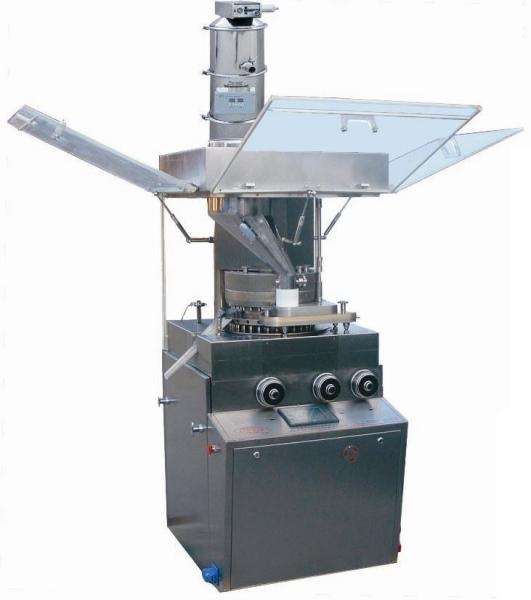

ZP1124 Automatic pill press machine, pharmaceutical tablet press machine

Applications

An economical automatic continuous rotary high-speed tablet press, the series ZP1100 A rotary tablet press is mainly used in the tablet production in pharmaceutical factories. The machine is also applicable to foodstuff, electric cell, chemical and electronic industries to press the granular material into tablets.

The machine is applicable for pressing different sizes of round tablets as well as shaped or double-sided letter-engraved tablets.

The machine is suitable to the granular materials that contain less 10% of powder (over 100 mesh). It is not applicable for half-round, gelatinous, damp and powered materials.

2. Functions and Features

• A force feeder device is equipped in this machine, which can solve bad fluidity for material, weight difference for tablets and dust-rising.
• Simultaneously equipped a vacuum conveyer(feeder), which can reduce the labor

Force, prevent the cross contamination with the outside and meet the GMP requirement .( optional)

• Featuring high pressure, the machine is equipped with a pre-pressing device so as to prolong the tablet pressing time, resulting in high product quality. The machine is applicable for the large-lot production in the Chinese medicine industry in particular.

2.4 The rotary table has a high speed so that the linear speed of the center of the

punch die reaches 69.5m/min and the machine meets the requirements for the high-speed tablet press, thus raising the productivity greatly.

• The advanced imported sensors are used on the machine and the protection device for upper punch failure is provided. When the upper punch failure arises and the inching switch is touched, the machine will stop immediately so as to prevent the machine units including the feeder from being damaged.
• PLC is used in the control unit of the machine. A Siemens touch display screen is used as the operation panel, resulting in convenient and easy observation. As the operation interface of the user, the display screen can be used to display main technical parameters, average pressure value; to set up the operating parameters, such as the speed of rotary table, and the control parameters, such as the working pressure; set up and display various production parameters; quickly locate the failures and display the causes and the remedies so as to improve the maintenance efficiency.

Main Specifications

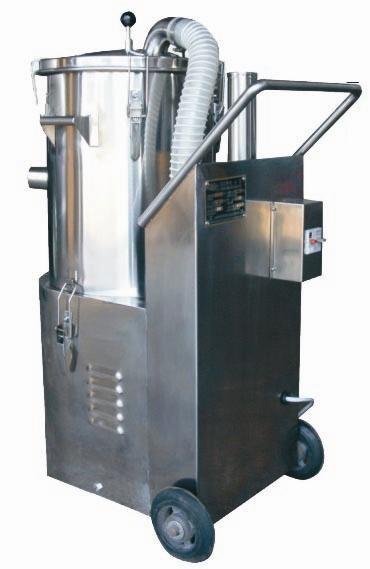

Dust Collector

Main technical specifications

About us

Service

1. Providing photographer recording high precision video about installing, debugging and changing mould for you before shipment, cost paid by ourselves, this service is not provided by other suppliers. This video also helps you operate the machine better.
2. Different languages are available to be inputted in the touch screen, such as russian, arabic, franch, spanish etc, in order to help machine operator understand and run machine smoothly.
3. We will dispatch engineers to your site for machine installation and commissioning, and also do the training for your technicians.
4. We makes guarantee of the machine for 12 (twelve) months. During this Warranty period, the seller will provide free spare parts that cause by the machine’s quality within 10 days by fast courier upon receipt of buyer’s notice.(we will also provide one set of spare parts /wear &tear parts to customer along with the shippment of the machine.
5. We warmly welcome the suggestions from customer to make us grow better and produce better machine along with providing better service to customer , and creat more value for customer.
6. Before placing the orde or before shipping, welcome to our factory to take a visit to inspect our machine. we will pick you up in the airport or train station and arrange your following schedule in our city to bring you a nice journey during this visit.
