10-33 Times/Min Small Blister Packaging Machine Tablet Capsule Low Noise
10-33 Times/Min Small Blister Packaging Machine Tablet Capsule Low Noise
10-33 Times/Min Small Blister Packaging Machine Tablet Capsule Low Noise
10-33 Times/Min Small Blister Packaging Machine Tablet Capsule Low Noise
10-33 Times/Min Small Blister Packaging Machine Tablet Capsule Low Noise
10-33 Times/Min Small Blister Packaging Machine Tablet Capsule Low Noise
10-33 Times/Min Small Blister Packaging Machine Tablet Capsule Low Noise
10-33 Times/Min Small Blister Packaging Machine Tablet Capsule Low Noise
Specifications
Brand Name :
Grand Packing
Model Number :
DPP-80
Certification :
CE
Place of Origin :
Zhejiang, China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 sets per month
Delivery Time :
30 working days upon receipt of payment
Packaging Details :
packed in standard exporting woodcase
Product name :
DPP80 automatic pharmacy blister packing machine tablet capsule packaging machinery
Max. Forming Area :
108*80MM
Cutting Frequency :
10-33times/min
Stroke Range :
30~80MM
Plate Size :
80*70MM
Packaging Material :
Alu,PVC/PET
Weight :
450kg
Overall Dimension :
1840x590x1100 (mm)(LxWxH)
Description

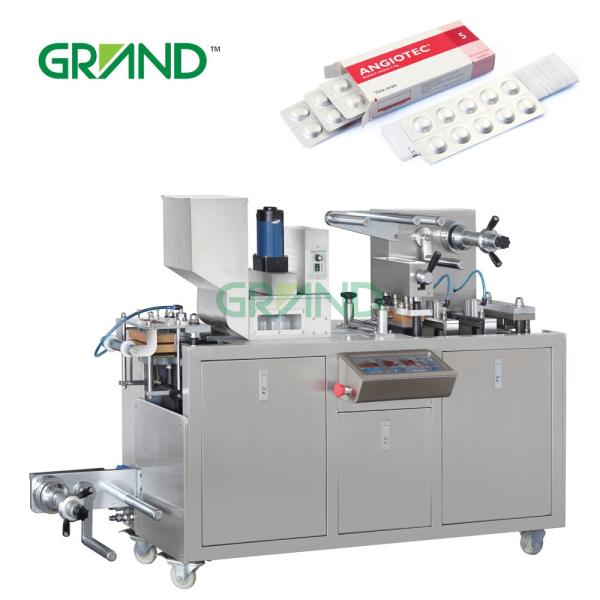

DPP80 automatic pharmacy blister packing machine tablet capsule packaging machinery

Machine introduction
DPP-80 multifunctional automatic blister packing machine, the machine is the company comprehensive domestic and foreign aluminum plastic packaging machine has the advantages of innovative design, my company a number of innovative technology is used in the key parts, the contact part of the drug and the stainless steel and high-grade aluminum alloy material production, applicable to the pharmaceutical, food, health care products industry packing element piece, sugar coated tablets, capsules also packaging small food and metal parts, electronic components. The machine set coil uncoiling, aluminum (AL) feeding, blister forming, filling, waste recycling, heat sealing, print a batch number, reticulate indentation, edition piece rushed cut, display finished counting and ten functions in one, goods packaging sealing good, safe and sanitary.


Features
1. Newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided;
2. Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user’s requirement.
3. Photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
4. It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
10-33 Times/Min Small Blister Packaging Machine Tablet Capsule Low Noise
Main Technical Parameters

Model DPP-80
Punch frequency 10-33times/min
Production capacity 2400plates/hour
Max. Forming area & Depth 105x70(standard depth ≦15mm), Max. Depth 25mm( customized)
Standard Stroke range 30-80mm( can be customized )
Standard plate size 80x70mm (can be designed as per user’s required)
Air pressure 0.4-0.6Mpa
Compressed air required Air compressor≥0.3m3/min
Total power supply 380V/220V 50Hz 2.8Kw
Main motor 0.75Kw
PVC hard Film 0.15-0.5*110 (mm)
PTP Aluminum film 0.02-0.035*110 (mm)
Dialysis Paper 50-100g*110(mm)
Mould cooling Tap water or Recycling water
Overall Dimension 1840x590x1100 (mm)(LxWxH)
Weight Net 480kg Gross weight: 550kg
Noise index <75dBA

10-33 Times/Min Small Blister Packaging Machine Tablet Capsule Low Noise
10-33 Times/Min Small Blister Packaging Machine Tablet Capsule Low Noise
