HLSG Series Wet Granulator , Tablet Granulation Machine For Large Capacity
HLSG Series Wet Granulator , Tablet Granulation Machine For Large Capacity
HLSG Series Wet Granulator , Tablet Granulation Machine For Large Capacity
HLSG Series Wet Granulator , Tablet Granulation Machine For Large Capacity
HLSG Series Wet Granulator , Tablet Granulation Machine For Large Capacity
HLSG Series Wet Granulator , Tablet Granulation Machine For Large Capacity
HLSG Series Wet Granulator , Tablet Granulation Machine For Large Capacity
HLSG Series Wet Granulator , Tablet Granulation Machine For Large Capacity
Specifications
Brand Name :
Grand Packing
Certification :
CE
Place of Origin :
Zhejiang
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20 sets per month
Delivery Time :
35-40 days
Packaging Details :
packed in standard exporting woodcase
Model Number :
HLSG-200, 300, 400, 600, 800
Keyword 1 :
High Shear Granulator
Keyword 2 :
High Speed Wet Mixing Granulator
Keyword 3 :
Super Mixer
Application :
Pharmacy, Foodstuff, Cosmetics, Feedstuff, Ceramic, Chemical
Sea Port :
Ningbo, Shanghai
name :
tablet granulation machine
Description

HLSG Series Wet Granulator

Working Principle
  • The whole process consists of two procedures: mixing and granulating.

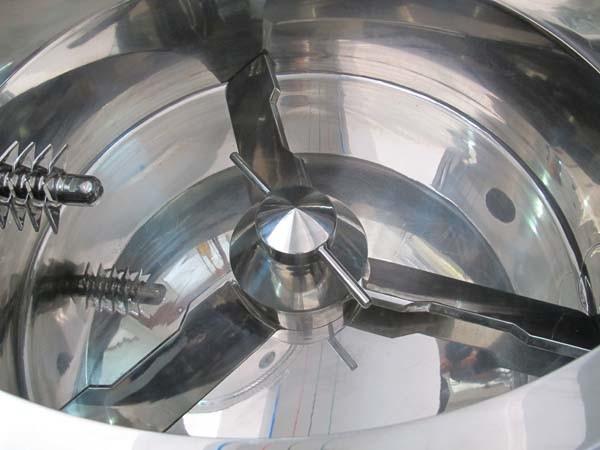

  • The adhesive is charged into the material pot from the conical hopper. Along with the filling of adhesive, the powder raw materials keep rotating in the pot under the action of stirring paddles once the hopper is closed. In the meanwhile, they grow up the shape of liquid bridge under continuous effects of conical wall. Under the action of extrusion, friction as well as kneading by paddles and conical pot wall, all materials gradually turn loose and soft. At last, open the material outlet and the wet granules will be pushed out under the centrifugal force of paddles.
  • The soft materials are granulated via the granulating cutters but not the forced extrusion, which will be cut into tiny and uniform granules under the semi-fluid state, realizing the mutual transformation between two different materials.
  • HLSG Series Wet Granulator , Tablet Granulation Machine For Large Capacity
Application
  • Mixing powder with powder (high precision uniformity)
  • Granulating powder with adhesive (for dense granules)

HLSG Series Wet Granulator , Tablet Granulation Machine For Large Capacity

Working Procedure

HLSG Series Wet Granulator , Tablet Granulation Machine For Large Capacity

HLSG Series Wet Granulator , Tablet Granulation Machine For Large Capacity

Technical Parameters

Model HLSG-100 HLSG-50 HLSG-30 HLSG-10
Total Volume 100L 50L 30L 10L
Working Volume 25-65L 12-35L 6-20L 2-6L

Material input quantity

(material density is 0.5 g/ml)

 15-40KG/batch 8-20KG/batch 3-10KG/batch 1-3KG/batch
Operating time Mixing about 2 minutes, granulating 7-14 minutes/batch
Finished granule size About Φ0.14-Φ1.5mm (12-100 meshes)
Mixing motor

7.5KW

6 magnetic poles

5.5KW

6 magnetic poles

3KW

6 magnetic poles

2.2KW

6 magnetic poles
Speed of stirring paddle 30-300 r/min 40-400 r/min 50-500 r/min 50-500 r/min
Granulating motor 3KW 1.5KW 1.1KW 0.75KW
Speed of granulating blade 50-3000 r/min 50-3000 r/min 50-3000 r/min 50-3000 r/min
Outline dimension (L×W×H) 1760×600×1660 mm 1750×600×1620 mm 1450×530×1340 mm 1280×530×1320 mm
Weight 800 kg 500 kg 400 kg 330 kg

Model HLSG-600 HLSG-400 HLSG-300 HLSG-200
Total Volume 600L 400L 300L 200L
Working Volume 150-400L 100-280L 80-220L 60-150L

Material input quantity

(material density is 0.5 g/ml)

 75-200KG/batch 50-140KG/batch 40-110KG/batch 30-75KG/batch
Operating time Mixing about 2 minutes, granulating 7-14 minutes/batch
Finished granule size About Φ0.14-Φ1.5mm (12-100 meshes)
Mixing motor 30KW 22KW 18.5KW 15KW
Speed of stirring paddle 25-220 r/min 25-220 r/min 25-220 r/min 30-260 r/min
Granulating motor 11KW 7.5KW 5.5KW 4KW
Speed of granulating blade 50-3000 r/min 50-3000 r/min 50-3000 r/min 50-3000 r/min
Outline dimension (L×W×H) 2980×1200×2500 mm 2420×1060×2150 mm 2420×1060×2150 mm 2180×810×1950 mm
Weight 3880 kg 1900 kg 1800 kg 1350 kg

Our Advantages
  • Unique advantage: The paddle can be lifted about 3cm automatically, easy for pot cleaning, manpower saving, no dead angles and no residue.
  • With 3 seals: Imported skeleton seal (upper and lower), gas seal, the exclusive developed third separation seal of our company. Make sure no transmission system, bearing lock and materials polluted.
  • Siemens PLC, touch screen and dual frequency control system.
  • 45° bevel of the material outlet port, material outlet automatically. No dead angles, no residual, easy to be cleaned.
  • Belt transmission, no oil leaking, easy to be changed if worn. Cheaper and economic.
  • Pot bottom with jacket for cooling, avoid motor lock caused by overheated material which stick to the pot wall.

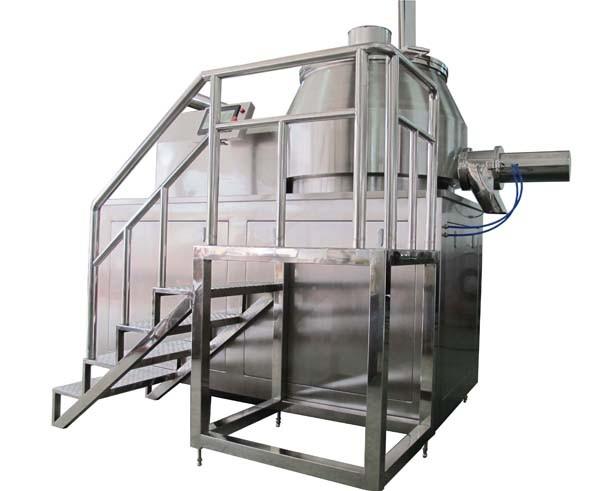

  • Operating platform has no dead angles, easy to be cleaned and meets the standards of GMP (CGMP).

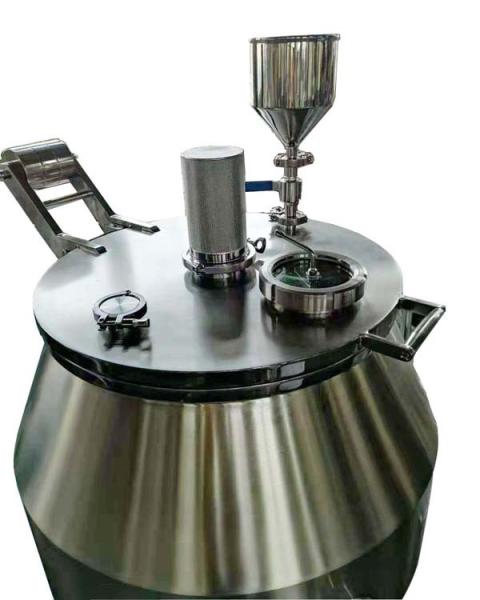

  • Automatic pot-cover opening and closing system, pneumatic components and security alarming device are applied.
  • The gap between the paddle and pot bottom can be decreased to 0.5-1mm. Thick stainless steel used from 8-12mm, high grade, not easy to be deformed.
Detailed Photos

HLSG Series Wet Granulator , Tablet Granulation Machine For Large Capacity

HLSG Series Wet Granulator , Tablet Granulation Machine For Large Capacity

HLSG Series Wet Granulator , Tablet Granulation Machine For Large Capacity

HLSG Series Wet Granulator , Tablet Granulation Machine For Large Capacity

HLSG Series Wet Granulator , Tablet Granulation Machine For Large Capacity

HLSG Series Wet Granulator , Tablet Granulation Machine For Large Capacity

Workshop

HLSG Series Wet Granulator , Tablet Granulation Machine For Large Capacity

HLSG Series Wet Granulator , Tablet Granulation Machine For Large Capacity

HLSG Series Wet Granulator , Tablet Granulation Machine For Large Capacity

HLSG Series Wet Granulator , Tablet Granulation Machine For Large Capacity

Certificates

HLSG Series Wet Granulator , Tablet Granulation Machine For Large CapacityHLSG Series Wet Granulator , Tablet Granulation Machine For Large Capacity

HLSG Series Wet Granulator , Tablet Granulation Machine For Large CapacityHLSG Series Wet Granulator , Tablet Granulation Machine For Large Capacity

Customer Visiting

HLSG Series Wet Granulator , Tablet Granulation Machine For Large Capacity HLSG Series Wet Granulator , Tablet Granulation Machine For Large Capacity

HLSG Series Wet Granulator , Tablet Granulation Machine For Large Capacity HLSG Series Wet Granulator , Tablet Granulation Machine For Large Capacity
