High Stability Cast Cling Film Extruder , Cast Film Extrusion Machine
High Stability Cast Cling Film Extruder , Cast Film Extrusion Machine
High Stability Cast Cling Film Extruder , Cast Film Extrusion Machine
High Stability Cast Cling Film Extruder , Cast Film Extrusion Machine
Specifications
Brand Name :
Baojia brand
Model Number :
Serial
Place of Origin :
Dongguan, China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
100 sets monthly
Delivery Time :
30 days
Packaging Details :
As arranged
Layer :
1，2 & 3
Reuse :
Yes. Inline crusher Recycler
Shaking :
Yes with a cooling shaking station
PLC :
Yes with PLC control
Description

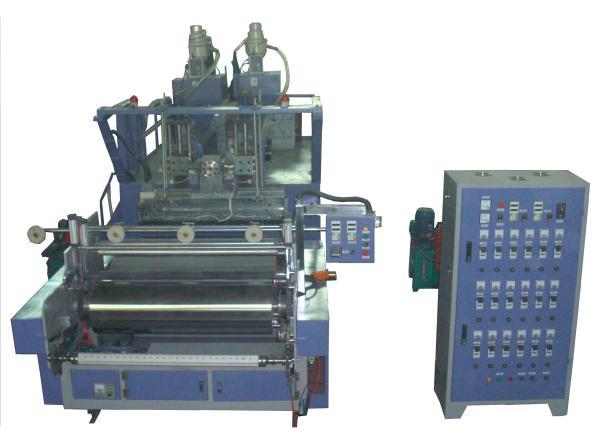

High Stability Cast Cling Film Extruder , Cast Film Extrusion Machine

Automatic Cast Cling Film Extrusion Machine is basically the same as our Automatic Cast PE Stretch Film Machine. Only the material is different.

Popular model: 1 extruder for layer, 2 extruders for AB and ABA layers (with 2 distributors). Usually buyers choose valid width of 500 mm x 2 rolls. With Inline Crusher Reuse System and therefore you are to get nearly zero wastage.

Stability: JC-Times T-die and distributor. More expensive, but we focus on this. With automatic winder station, PLC control and PID temperature control.

Special & customized service: Yes at request.

Key Technical parameters:

Model D65+D55 × 1250 D75 × 1250
Product width 100 -1000mm 100-1000mm
Screw diameter 65 + 55 mm 75 mm
Screw L/D 1: 30mm 1:30mm
Screw rpm 20-150rpm 20-150rpm
Total power 70kw 48kw
Product thickness 0.008 -0.05mm 0.008 -0.05mm
Production 35 -100kg 35 -90kg
Linear speed 90 m/min 90 m/min
Net weight 5T 4T
Dimensions 5200×2800×3000 5200×2500×3000
