Electrical Air Knife EPE Bonding Machine Cutting Gluing Machine Energy Saving
Electrical Air Knife EPE Bonding Machine Cutting Gluing Machine Energy Saving
Electrical Air Knife EPE Bonding Machine Cutting Gluing Machine Energy Saving
Electrical Air Knife EPE Bonding Machine Cutting Gluing Machine Energy Saving
Electrical Air Knife EPE Bonding Machine Cutting Gluing Machine Energy Saving
Electrical Air Knife EPE Bonding Machine Cutting Gluing Machine Energy Saving
Specifications
Brand Name :
Baojia brand
Model Number :
Serial
Place of Origin :
Shenzhen, China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
300 sets monthly
Delivery Time :
20 days
Packaging Details :
Simply seaworthy anti moisture wrapping
Name :
Electrical Air Knife EPE Bonding Machine
heating method :
Electrical air knife
Air knife qty :
Highly customized
Stability :
Movie at request
Description

Electrical Air Knife EPE Bonding Machine Cutting Gluing Machine Energy Saving

Feature:

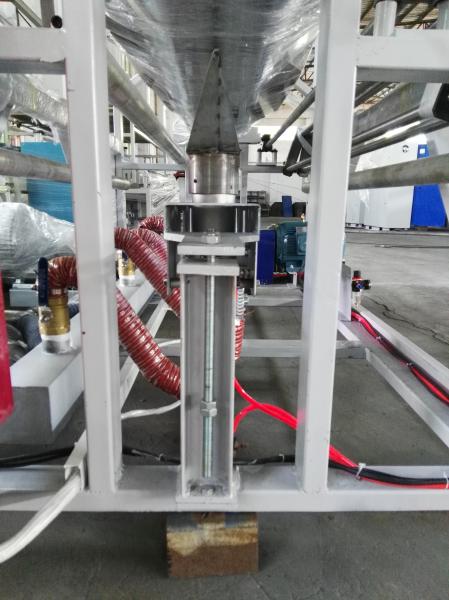

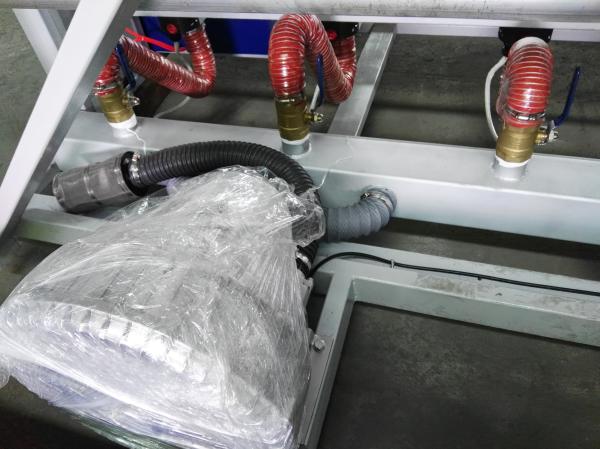

Electrical Air Knife EPE Bonding Machine is also called Electrical Air Knife Thickening Machine. This machine is to heat up one single side of PE foam sheet to nearly melting point via electrical air knife + blower. Much stronger heating quality (13 kw each air knife). Then to bond 2 pieces together. The bonding force is by 2 rollers. No agent or glue is needed. Maximum bonding thickness may reach 100 mm. It is a must have equipment of PE foam deep process.

Standard configuration:
1. Unwinding unit: 2 unwinders: with unwinding roller, guiding limit rod and a frame.
2. Main bonding unit: main frame, smooth haul roller 2 pieces, adjustment devices, heating stove, cylinder, gearbox, haul motor, rubber roller, guiding roller and air adjustment devices.
3. Rewinding unit: frame, winding roller and torque motor.
4. Electrical section: haul, rewinding, control devices, speed regulation, torque regulator

Technical parameter

Model 1400 1600 2000
Max. thickness 100mm 100mm 100mm
Width 1200mm 1400mm 1800mm
Unwind diameter 1000mm 1000mm 1000mm
Rewind diameter 1000mm 1000mm 1000mm
Speed 5-40 m/min
Heating method electrical air blade (3 or 5 units)
Power Heating: 16 kw x 3/ 5 units. Blower: 2.2 kw x 2/ 3 units
Power source 380 VAC, 50 Hz
Dimensions 6000x2500x1800mm 6000x2800x1800mm 6000x3100x1800mm
Weight 1.1T 1.2T 1.5T
