Specifications
Brand Name :
Baojia brand
Model Number :
Serial
Place of Origin :
Dongguan, China
MOQ :
1 set
Payment Terms :
L/C, T/T
Delivery Time :
40 days
Packaging Details :
As arranged
Type :
3 in 1 for wek flake recycling
Customized :
Yes at request
Description

3 Extruder Plastic Recycling Machine 3 In 1 Recycling Line For Wet Flake

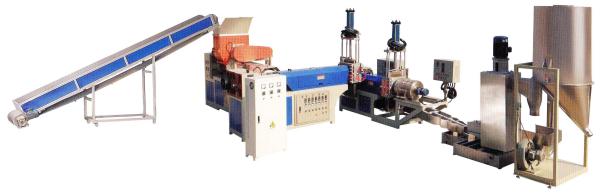

3-in-1 Recycling Line for Wet Flake is a recycling line specialized for wet PE, PP and familiar plastic flakes. It has combined functions of an a forced feeder (with a hi speed roller for forced feeding), dewatering and extrusion.

With a conveyer: With built-in E-stop, metal detector + alarm + auto stop. Manual metal pick up.

With 3 extruders.

With die-face granule cutter.

With a Vertical Dewatering Station.

With inline silos and inside the silos we may build in a Metal Separator (optional, not included in standard offer price).

Key technical parameter

Model No. WA200/180/160P WA220/200/160P
Main extruder Screw diameter 200 mm 220 mm
Screw length 2,800 mm 3,000 mm
Length/ diameter 14:1 14:1
Ventilation / Null
Screw material 38CrMoAlA + nitride
Barrel material 40Cr + nitride
Gearbox 315#, 330#, 375#
Main motor 90 kw/ G4 110 kw, G4
Heating 180 kw/ 3 zones
Screen exchanger /Null
Medium extruder Screw diameter 180 mm 200 mm
Screw length 2,600 mm 2,600 mm
Length/ diameter 14:1 13:1
Ventilation Single ventilation
Screw material 38CrMoAlA + nitride
Barrel material 40Cr + nitride
Gearbox 250#, 280#
Main motor 37 kw/ G4 45 kw, G4
Heating 40 kw/ 6 zones 50 kw/ 6 zones
Screen exchanger 400 x 400 mm, double hydraulic
Assistant extruder Screw diameter 160 mm
Screw length 1,900 mm
Length/ diameter 12:1
Ventilation Single ventilation
Screw material 38CrMoAlA + nitride
Barrel material 40Cr + nitride
Gearbox 225#, 250#
Main motor 30 kw/G4
Heating 35 kw/ 4 zones, with cooling fan
Screen exchanger 330 x 330 mm, double hydraulic
Forced Feeder Station Gearbox 173#, 200#
Main motor 11 kw,G6 / 15 kw, G6
Feeding method Claw type rolling
Conveyer 1.1 kw, G6. 4m long. 500 mm wide. With inverter
Related Hydraulic Station, Die-Face Cutter, Vertical Dewater Station, 500 kg Silos
Installed power 430 kw 450 kw
Capacity 400-500 kg/hr 500-600 kg/hr
