Automatic Stretch Film Extruder 3 5 Layer For PE Stretch Film / Cling Film
Automatic Stretch Film Extruder 3 5 Layer For PE Stretch Film / Cling Film
Automatic Stretch Film Extruder 3 5 Layer For PE Stretch Film / Cling Film
Automatic Stretch Film Extruder 3 5 Layer For PE Stretch Film / Cling Film
Automatic Stretch Film Extruder 3 5 Layer For PE Stretch Film / Cling Film
Automatic Stretch Film Extruder 3 5 Layer For PE Stretch Film / Cling Film
Specifications
Brand Name :
Baojia brand
Model Number :
Serial
Place of Origin :
Dongguan, China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
100 sets monthly
Delivery Time :
40 days
Packaging Details :
As arranged
Simple name :
3,5-Layer Stretch Film Film Machine
Customized :
Yes, tailor made at request.
Valid width :
500 mm x 3 rolls
Inline reuse :
Inline crusher reuse system, Yes included
Description

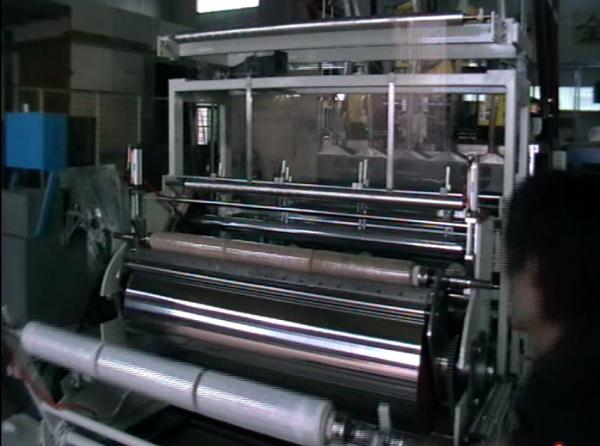

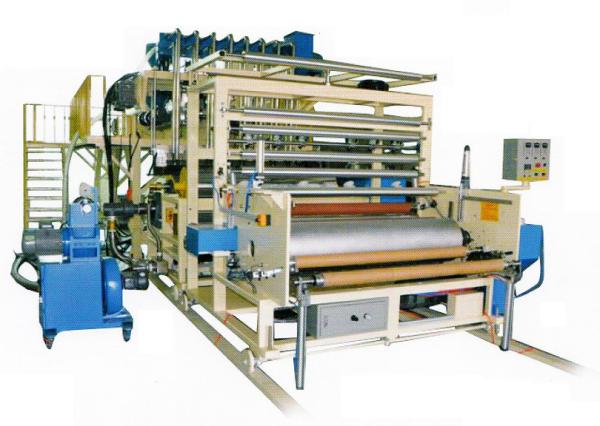

Automatic Stretch Film Extruder 3 5 Layer For PE Stretch Film / Cling Film

3,5-Layer Auto PE Stretch Film Film Machine is with 3 extruders, for 3 or 5-layer cast LLDPE stretch film or cling film as per different material.

Highly customized. Nearly any reasonable widths at request. Standard design is of D65/D65/D90 mm x 1800 for valid width of 500 mm x 3 rolls.

Stability, simply genuine JC-Times T-die and distributor to insure.

PLC control. Auto winding, auto push away, auto cut off and auto start to next roll.

Key parts list:

1. Auto loader, 3 sets

2. Glue pump + inverter control, 2 sets

3. Extruder, 3 sets. (Barrel diameter 90 mm, 1 set, diameter 65 mm, 2 sets)

4. Pressure pump + inverter + PID, 1 set

5. Distributor, 1 set for 3 or 5 layers

6. Hydraulic double-filter exchanger, 3 sets

7. Shaking system, 1 set

8. Inline Crushing Reuse System, 1 set

9. Automatic thickness inspection system, null. Optional. Cost is 38,500 USD.

10. Cabinet, 3 pcs

Technical parameter

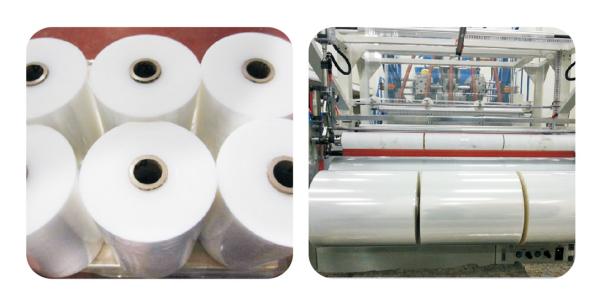

Product: LLDPE stretch film and cling film

Finished product width: 500 mm x 3 rolls.

Roll diameter: 300 mm

Paper core ID: 75mm

Product thickness: 0.008 - 0.015 mm

Main material: LLDPE resin and glue

Layer structure: A/B/C and A/B/C/B/A

Distributor rate: 20%, 60% and 20%

Extrusion quantity: 220 kg/hr

Linear mechanical speed: max. 180 MPM,100M/min

Net weight: about 10 tons

Dimensions: 12 x 2.5x 3.2 m L/W/H

Details and movie clip at request.

Site service available.
