4 M PE Film Co Extrusion Machine by HDPE LDPE LLDPE Resin
4 M PE Film Co Extrusion Machine by HDPE LDPE LLDPE Resin
4 M PE Film Co Extrusion Machine by HDPE LDPE LLDPE Resin
4 M PE Film Co Extrusion Machine by HDPE LDPE LLDPE Resin
4 M PE Film Co Extrusion Machine by HDPE LDPE LLDPE Resin
4 M PE Film Co Extrusion Machine by HDPE LDPE LLDPE Resin
4 M PE Film Co Extrusion Machine by HDPE LDPE LLDPE Resin
4 M PE Film Co Extrusion Machine by HDPE LDPE LLDPE Resin
Specifications
Brand Name :
Baojia brand
Model Number :
Serial
Place of Origin :
Dongguan, China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
100 sets/month
Delivery Time :
30 days
Packaging Details :
Simple seaworthy anti moisture wrapping
Name :
4m PE Film Co-extrusion Machine
Extruder :
3 sets
Pass width :
4200 mm
Thickness :
0.03 - 0.20 mm
Die size :
Diameter 1,100 mm
Description

High Speed 4 M PE Film Co Extrusion Machine For HDPE LDPE LLDPE Resin

Application:

4m PE Film Co-extrusion Machine is for HDPE, LDPE and LLDPE resin. For valid folded film width of 4,000 mm at maximum 200 microns. 3 extruders, diameter 100 mm each. Both thick and super thin film designs are available. Super thin farmer's field cover film can do.

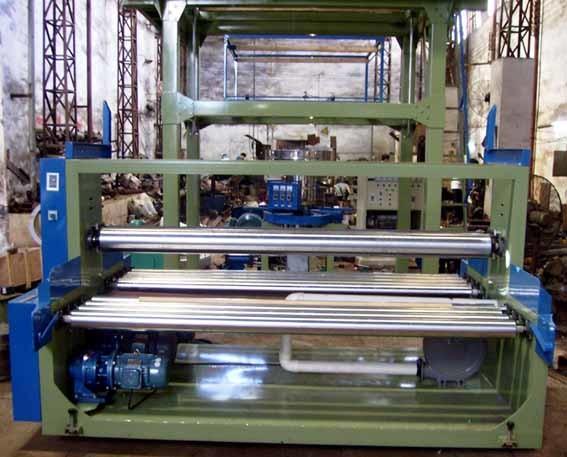

4m PE Film Co extrusion Machine, 4m PE Film Machine, with rotional die, rotational air ring, side by side arranged roller winder station

Reminder: 3m machine is available at request.

Key technical parameter:

Screw/ barrel Diameter 100 mm each, 38CrMoAlA + nitrode
Length/ diameter 30:1
Screw rpm 0 – 100 rpm
Die size Diameter 1,100 mm
Die structure 3-layer international rotational,central feeding
Die material No. 45 steel. Internal flow-way with chrome plating
Air ring diameter 1,400 mm
Film thickness 0.03 - 0.20 mm
Folded film width 2,000 – 4,000 mm
Main motor 75 KW, 3-phase asynchronous motor + V. F. drive. Each 3 sets
Heating power 90 KW
Total installed power 250 kw
Max. production 500kg/h
Total net weight 23,000 kg
Dimensions 8,000 x 6,000 x15,000 mm L/W/H
