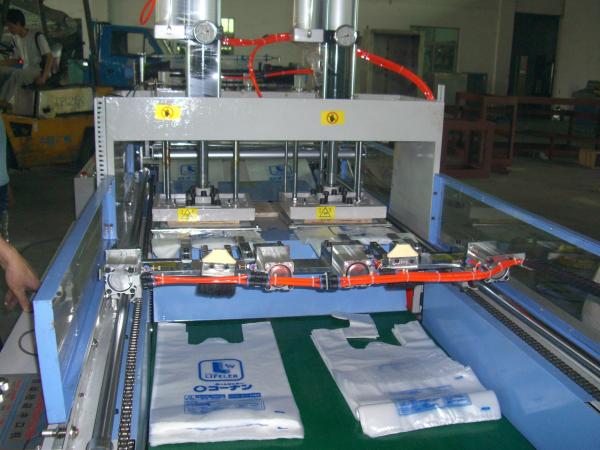

Automatic T Shirt Bag Making Machine With Inline Double Punchers 2 Photocells
Automatic T Shirt Bag Making Machine With Inline Double Punchers 2 Photocells
Automatic T Shirt Bag Making Machine With Inline Double Punchers 2 Photocells
Automatic T Shirt Bag Making Machine With Inline Double Punchers 2 Photocells
Automatic T Shirt Bag Making Machine With Inline Double Punchers 2 Photocells
Automatic T Shirt Bag Making Machine With Inline Double Punchers 2 Photocells
Automatic T Shirt Bag Making Machine With Inline Double Punchers 2 Photocells
Automatic T Shirt Bag Making Machine With Inline Double Punchers 2 Photocells
Specifications
Brand Name :
Baojia brand
Model Number :
Serial
Place of Origin :
Dongguan, China
MOQ :
1 set
Payment Terms :
L/C, T/T
Delivery Time :
40 days
Packaging Details :
Simple seaworthy anti moisture wrapping
Name :
Automatic T-shirt Bag Making Machine
Diecut :
Yes,1 or 2 punchers
Speed :
Middle
Hi speed :
Available at request
Description

Automatic T Shirt Bag Making Machine With Inline Double Punchers 2 Photocells

Features:
Automatic T-shirt Bag Making Machine is specialized for T-shirt bag making, with inline double punchers, with 2 photocells. Repeat pieces may preset. It is developed from Taiwan design and well tested. Very stable and reliable. If 2 lanes, production is 260 bags per minute.
Main motor is controlled by variable frequency drive, 1.5 kw. Liquid crystal touch screen for high speed process and setting. With both English and Chinese displays. Pull motor is controlled by servo drive. Auto punching employed pressure- adding cylinder. The pressure-add stroke is 15 mm. Pressure may reach 3 tons. Mechanical hand for auto clamping. Double flat conveyer for conveying. Double photocells (Germany SICK brand) for registration and so higher efficiency and less trouble. Unwinding is controlled by variable frequency motor for active unwinding.

Technical paramters:

Model S650 D400
Lane Single Double
Max. width 600 mm 380 mm x 2
Bag length 40-1200 mm 40-1200 mm
Production 30-150 pcs/min 30 -130 pcs/min x 2
Film thickness 0.02 - 0.2 mm 0.02 - 0.2 mm
Total power 2.8 kw 3.2 kw
Dimensions(L/W/H) 4500X1390X1850 mm
