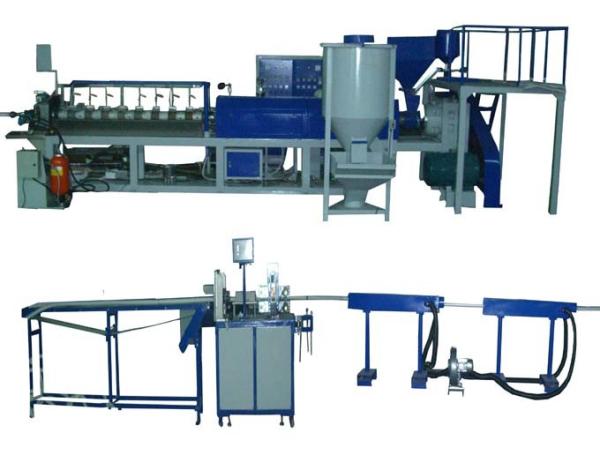

EPE Foam Profile Extrusion Line With 3 Servo Motors Diameter 75 90 105 120

PE Foam Profile Extrusion Line's extruder is absolutely the extruder of a normal PE Foam Sheet Extrusion Line. As per your profile sizes, you may choose extruder diameter 75, 90, 105, 120, 150 or even 180 mm.
IF the material is too much, you may make multiple solid rods at the simultaneously. However multiple-piece is only possible for solid rods at the moment.
In comparison to sheet making, profile extrusion's assistant units are different. You will have to add these.
New improvement: Hydraulic screen exchanger's both sides with heaters and therefore the screen holder board's hole cleaning is much easier and faster.

JYD75 technical parameter

Auto Profile Making Stations
1. Mould: 3 popular standard moulds are included. If special ones, we reserve the freedom and rights to add extra costs.
2. Cooling station: 1 blower of 0.75kw + 2 cooling chambers.

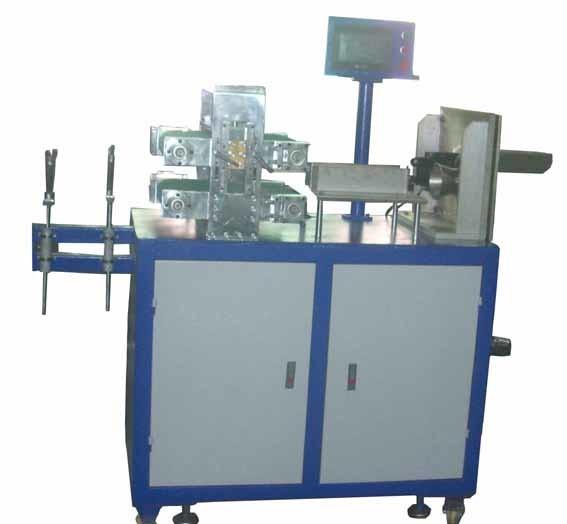

3. Three- Servo- Motor Driving Haul Cutting Station: 2 in 1.

3.1 Haul Motor: 750W x 2 servo motors

3.2 Cutting Motor: 1 KW x 1 set, servo motor. Max. diameter: 90 mm

3.3 Haul belt width: 0.3m x 2 pcs.

3.4 Operator console: 1 touch screen.

3.5 Profile slitting blade: with a blade holder

3.6 Dimensions: 1.75 x 0.6 x 1.52 m, L/W/H

3.7 Net Weight: about 200 kg

4. Conveyer station
4.1 Conveyer gear motor: 1HP + V. F. drive
4.2 With push button of JOG/Auto Run.
4.3 Dimensions: 3.1 x 680 x 1100 mm, L/W/H
4.4 Weight: 400 kg
