Easily Assembled 8mm Polycarbonate Film Greenhouse For Gardening
Product describe:
Polycarbonate film greenhouse has a modern and novel in exterior, and has a stable structure.It adopts hot galvanized pipes connected by the hot-galvanizing bolts and tapping screws,without any welding point.So it is strong and practical and also simple beautiful in overall.The covering material is glass which has the high transmittance,good insulation. The design of wide span and pinnacle made a large operating inner space,a high utilization and a good bandwagon effect. It can be used as large ornamental greenhouse,aquaculture greenhouse, floriculture greenhouse,flower market,shopping mall and ecological restaurant.
Item | Parameter |
Width | 6-10m(8m is standrad) |
Length | 60-100m |
Shoulder Height | 3-4.5m |
Top Height | 4.8-6m(Depend on width) |
Covering material | PE film(0.08/0.10/0.12/0.15/0.2mm),PC Film |
Framework | Hot galvanized steel pipe |
Basic equipment | Framework, ventilation on both sides |
supporting system(customize) | Cooling system & irrigation system... |
Arch distance | 1.33m |
Arch Size | φ25x1.5mm,φ32x1.8mm,φ48x2.0mm |
Main pillar | φ60x1.8mm,50x70mm,80x80mm |

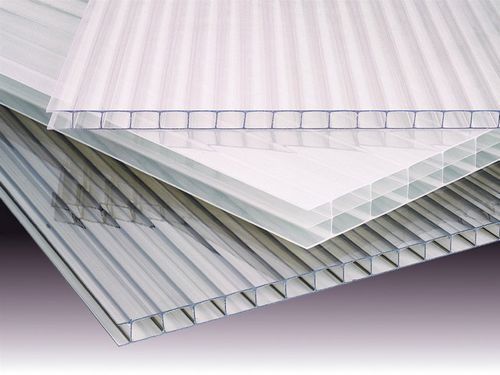

Advantages of PCsheet:
1.Goodlooking and long service life
2. high transmittance:They possess fair surface polish and transparency,and solar energy in unit area can be attained its maximum advantage
3.energy saving: lower thermal conductivity than plastic film,so less heat loss.
4.impact resistance:PC sheets have the best impact resistance among all the thermoplastics,when broken ,they didn't shatter into pieces. Users always called PC sheets“unbroken glass”
5.good fire retardant capicity :The products have been tested by National quality Supervision and Examin -ation Center . They are the B1 level flame retardant materials to ensure safe and reliable.
6.Thermal adaptability:PC sheets will not fractured or soften when temperature changes.
Wall | Mode/Number | Weight | Thickness | UV side | K-valse | LT (%) Clear | LT (%) Opal white |
2-Wall R-Structure | 01 | 0.85 | 4 | 1/2 | 3.96 | 80 | 47 |
02 | 1.30 | 6 | 1/2 | 3.56 | 78 | 46 | |
03 | 1.50 | 8 | 1/2 | 3.26 | 76 | 44 | |
04 | 1.70 | 10 | 1/2 | 3.02 | 73 | 44 | |
05 | 1.90 | 12 | 1/2 | 2.56 | 72 | 42 |
Product Features:
1.Special customized designed for green house
2.Hot galvanizing steel arched frame
3.Durable cover for years using
4.High strength, Easy installation, Large capacity , Excellent Stability
5.Waterproof , fireproof , rustproof , UV resistant
6.Direct manufacturer , fast delivery
Advantages of PCsheet:
1. It can be curved into arched and semicircular equality according to the actual needs of the site;
2. Light material, easy to carry: Time and power for handling and installation and easy construction management.;
3. Weather resistance, excellent lighting;
4. transparent, super insulation;
Wall | Model Number | Weight | Thickness | UV Side | K-valse | LT(%)Clear | LT(%)Opal white |
R-Structure | 01 | 0.85 | 4 | 1/2 | 3.96 | 80 | 47 |
02 | 1.30 | 6 | 1/2 | 3.56 | 78 | 46 | |
03 | 1.50 | 8 | 1/2 | 3.26 | 76 | 44 | |
04 | 1.70 | 10 | 1/2 | 3.02 | 73 | 44 | |
05 | 1.90
| 12 | 1/2 | 2.56 | 72 | 42 |
Product Features:
1. Special customized designed for greenhouse
2. Hot galvanizing steel arched frame
3. Durable cover for years using
4. High strength, Easy installation, Large capacity, Excellent Stability
5. Waterproof, fireproof, rustproof, UV resistant
6. Direct manufacturer, fast delivery
Ventilation system (optional):
This system is the basic setting for a greenhouse, it makes indoor air natural convection. Auto or manual open ventilation to adjust indoor temperature and humidity. Side open window and roof window roll ventilation and insect net; Manual or electrical control;
Application :
1. Applied in the plains, fruit trees on the hillside, garden, grow seedlings flowers, grass, vegetables, etc
2. Suitable for watermelon, vegetables, wheat, and medicinal herbs.
3. Apply to the golf course, open-air agriculture
1. When can I get the price?
Usually within 24 hours after we get your inquiry. If you are urgent to get the price, please call me or tell me in the email.
2. Can you accept our own design, logo, and pattern?
We can produce it according to your design.
3. Are you a manufacturer or Trading company?
We are a greenhouse manufacturer in Chengdu China, are greenhouse manufacturing, and We also welcome you to visit our factory.
4. When can I get the goods?
Produce time is within 15days, and shipping is usually 20-35days.
5. What is your best price?
The same style of greenhouse can be used in different thicknesses of steel, and different thicknesses of the film. These will have a direct impact on greenhouse prices. And the larger the area, the lower the unit price will be
