Specifications
Brand Name :
BAOLIDA
Model Number :
BLD-202052
Certification :
ISO9001:2008
Place of Origin :
Sichuan,China
MOQ :
Negotiation
Price :
USD 2-6/sqm
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500000 squre meters per month
Delivery Time :
15 word days
Packaging Details :
standard package
Product name :
Simplest Structure Hot Dip Galvanized Steel 4m Tunnel Plastic Greenhouse For Plants Growing
Length :
customized
width :
8m or 9m
Covering :
100/120/150/200micro PE Film
color :
clear or white
Material :
hot dip galvanized steel
Irrigation system :
Drip irrigation system
Type :
Vegetable Fruits Flowers Growing
Application :
Vegetables
Function :
Warm Reservation
Description

Simplest Structure Hot Dip Galvanized Steel 4m Tunnel Plastic Greenhouse For Plants Growing

Tunnel Plastic Greenhouse Product describe:

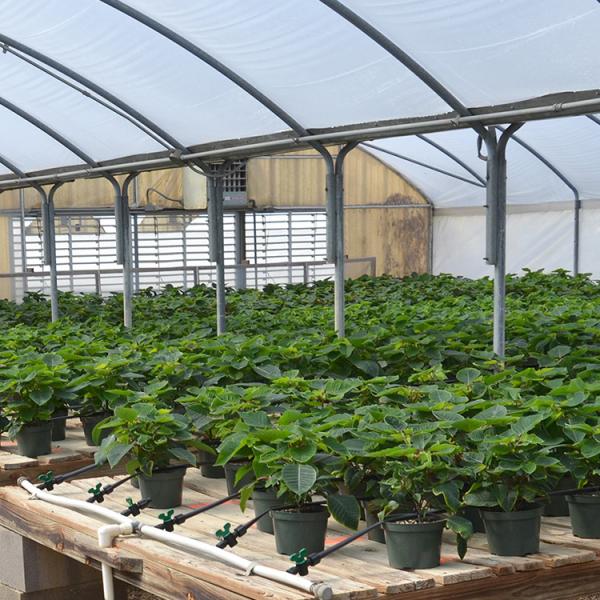

A greenhouse is the simplest structure greenhouse with the lowest cost. The framework is the core structure of the tunnel greenhouse. It includes the groove, the door, the ridge, the arch, the end column and so on. The single-span is usually between 6m to 12m. The advantage lies in the maximum use of the land area, simple installation, strong durability and long service life. In addition, it is very convenient to disassemble, install and transport. So the cost is the lowest, but the most cost-effective one. it also refers to a room with cold protection, heating and light transmission facilities for the cultivation of warm plants in winter. In the season which is not suitable for plant growth, it can provide the growth period and increase the yield. It is mostly used for the cultivation or seedling cultivation of vegetables, flowers, trees and other plants in the low- temperature season.

Dimension Related data
Length 60m or customized
Width 8m or customized
Top height 2.8m-4m
Shoulder height 1.5m-2.5m
Arch spacing 1.33m or customized
Arch diameter φ32mm
Arch thickness 1.5mm
Covering material PE film,
Basic equipment Framework,door,insect net,film
Foundation Insert the arch into the ground
Tube material Hot dip galvanized steel tubu
Thickness of PE film 150micron

Simplest Structure Hot Dip Galvanized Steel 4m Tunnel Plastic Greenhouse For Plants Growing

Covering Material

There are roughly three kinds of materials for greenhouse covering: Glass, PC Sheet and Film.

1.Film

Its functions are constantly improving and developing to anti-aging, light transmittance, improving insulation performance, prolonging the no dropping period and long life direction, and at the same time, it also has achieved great results in reducing the cost.

Name Thickness Guarantee period Types

Plastic Film

0.06mm 14 month

PVC;

PE;

EVA;

PO

0.08mm 18 month
0.10mm 2 years
0.12mm 3 years
0.15mm 4 years
0.20mm 5 years

Simplest Structure Hot Dip Galvanized Steel 4m Tunnel Plastic Greenhouse For Plants Growing

Simplest Structure Hot Dip Galvanized Steel 4m Tunnel Plastic Greenhouse For Plants Growing

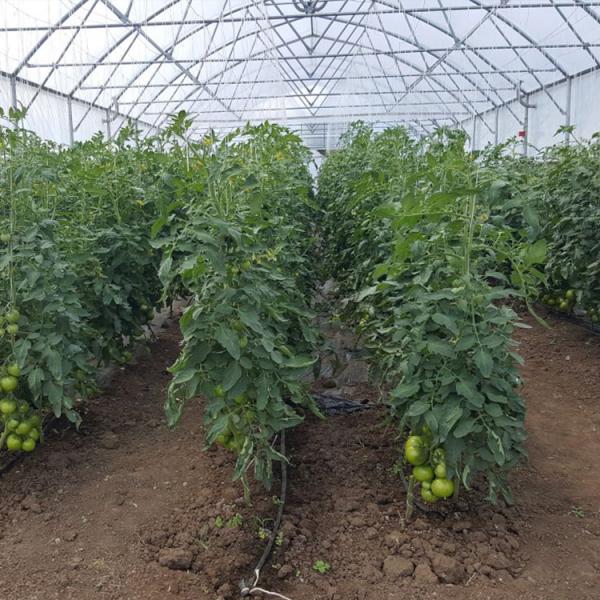

Drip irrigation

It is the most effective way of water-saving irrigation for drought and water shortage areas at present. The utilization rate of water is up to 95%. And it can be applied to fruit trees, vegetables, cash crops and greenhouse irrigation. Of course, it owns many advantages: such as, saving water; irrigation uniformity; energy, soil and terrain adaptability; convenient farm work, etc.

Simplest Structure Hot Dip Galvanized Steel 4m Tunnel Plastic Greenhouse For Plants Growing

Our services

1. Reliable design: a strong and creative design, research and development team to design the greenhouse according to the local climate and geographical conditions.

2. Greenhouse installation: engineers can be sent to your country for greenhouse installation.

3. Quality assurance: we have strict quality control and mature technology, our products have achieved

National and industry standards. All our exports will be strictly inspected before shipment.

4. One-to-one 24-hour online service: for any questions, please contact us.

5. After-sales service: if there is any quality problem during the warranty period, we will assume the responsibility and provide on-site service as needed.

Simplest Structure Hot Dip Galvanized Steel 4m Tunnel Plastic Greenhouse For Plants GrowingSimplest Structure Hot Dip Galvanized Steel 4m Tunnel Plastic Greenhouse For Plants Growing
