Specifications
Brand Name :
BAOLIDA
Model Number :
BAOLIDA01
Certification :
ISO9001:2008
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD 2-6/sqm
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500000 SQUARE METERS ONE MONTH
Delivery Time :
7-14 WEEK DAYS
Packaging Details :
Standard greenhosue package
Product name :
Single-span Hoop Greenhouse
Width :
6m-12m
Usage :
Agricultural Protect
Covering :
100/120/150/200micro PE Film
Material :
hot dip galvanized steel pipe
Production Time :
7 days
Features :
Easily Assembled
Type :
Agricultural Use
Ventilation System :
Side ventilation with insect net
Function :
Structure is flexible, strong applicability and wide applicable scope
Description

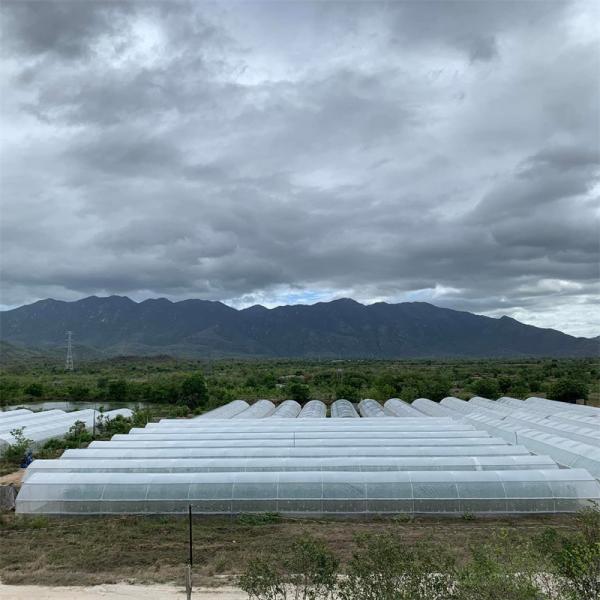

Hot Galvanized Steel Frame Anti Uv Plastic Poly Plastic Film Agriculture Single-span Hoop Greenhouse

Description

The plastic film tunnel greenhouse is simple and practical equipment for cultivation or breeding, it is easy to construct, convenient to use. Tunnel greenhouse is widely used in the cultivation of vegetables, fruits and flowers. Tunnel greenhouse can provide the conditions of suitable illumination, moisture and temperature, raising the output and resisting natural disasters. It can bring forward or backward the provision, remitting the contradictions of provision and demand.

Detail

Main Frame
Hot Galvanized Steel Pipe
Covering Material
PE Film
Covering Material Lifetime
3-5 years
Column Shape
Rectangular/ round
Span
8m/9m/10m/12m
Width Between Columns
4m
Layer
1 layer
Top Height
3m-5m
Gutter Height
2.5m-6.5m
Wind Load
0.4KN/m²
Snow Load
0.3KN/m²

Film:

PE plastic single or double layer, different thickness according to the design. PE film has good properties of flow drop, weathering resistance, light transmittance and temperature preservation. It is a wide variety of agricultural film, which can be used not only in greenhouse but also on a large scale. Medium and small greenhouse, and energy-saving greenhouse early spring stubble cultivation is also more suitable.

Greenhouse Framework:

Our greenhouse is the simplest structure greenhouse with the lowest cost and the most convenient installation. The framework is the core structure of the tunnel greenhouse. It includes the groove, the door, the ridge, the arch, the end column and so on. The single-span greenhouse is usually in between 6m to 12m. Our product advantages are maximum use of the land area, simple installation, strong durability and long service life. Also, it is very convenient to disassemble for transport. So the cost will be the lowest and most cost-effective one

Product Application
Widely used for Low or High Single Tunnel Greenhouse and Multi Span Greenhouse, as protecting cover for fruit(strawberry, cherry, grape, watermelon, muskmelon and so on), vegetable(tomato, potato, eggplant, pepper, bean, cucumber, celery, onion and so on), flowers,poultry farming,edible mushrooms cultivation and so on.

Poly Plastic Film Single Span Greenhouse Hot Galvanized Steel Frame Anti UvPoly Plastic Film Single Span Greenhouse Hot Galvanized Steel Frame Anti Uv

Poly Plastic Film Single Span Greenhouse Hot Galvanized Steel Frame Anti UvPoly Plastic Film Single Span Greenhouse Hot Galvanized Steel Frame Anti Uv

Packing and Delivery
1. The products are usually tied with packing tape.The packaging size and container capacity of the product are different from the product specifications
2. Container transportation, according to your project request. Production time usually costs 10-20 days.

Poly Plastic Film Single Span Greenhouse Hot Galvanized Steel Frame Anti UvPoly Plastic Film Single Span Greenhouse Hot Galvanized Steel Frame Anti Uv

Poly Plastic Film Single Span Greenhouse Hot Galvanized Steel Frame Anti UvPoly Plastic Film Single Span Greenhouse Hot Galvanized Steel Frame Anti Uv
