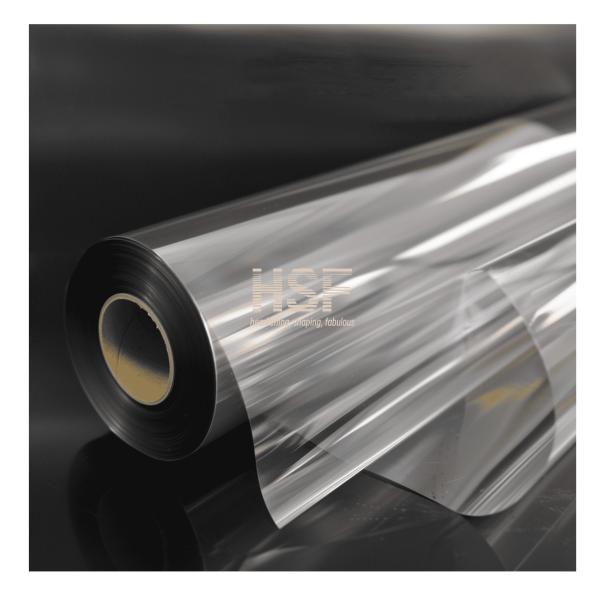

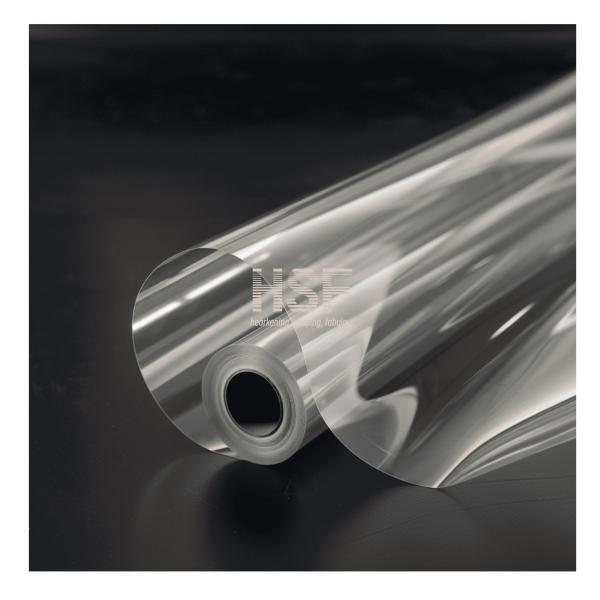

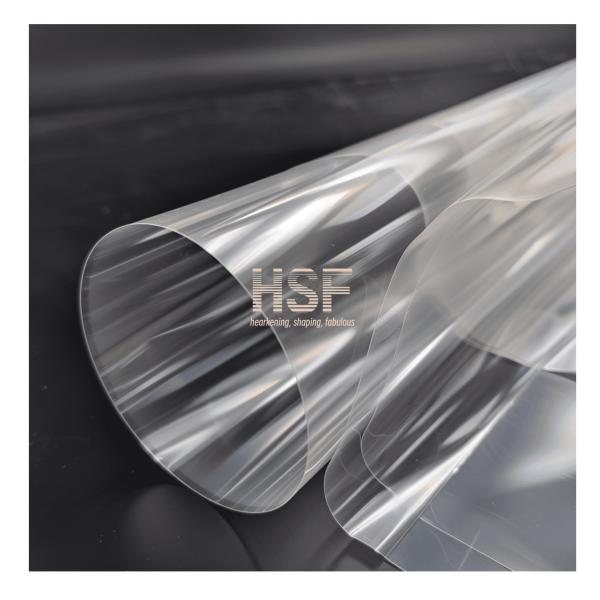

23 μm Clear PET Single Side Silicone Coated Release Film, For Tape And A Wide Range Of Surface Protection Applications
23 μm Clear PET Single Side Silicone Coated Release Film, For Tape And A Wide Range Of Surface Protection Applications
23 μm Clear PET Single Side Silicone Coated Release Film, For Tape And A Wide Range Of Surface Protection Applications
23 μm Clear PET Single Side Silicone Coated Release Film, For Tape And A Wide Range Of Surface Protection Applications
23 μm Clear PET Single Side Silicone Coated Release Film, For Tape And A Wide Range Of Surface Protection Applications
23 μm Clear PET Single Side Silicone Coated Release Film, For Tape And A Wide Range Of Surface Protection Applications
Specifications
Brand Name :
HSF
Model Number :
23T-SS15ER
Certification :
ISO, SGS, RoHS
Place of Origin :
China
MOQ :
8000 s.q.m
Payment Terms :
T/T, L/C
Supply Ability :
100000 kg per week
Delivery Time :
within 15 days depends on the reserve of raw materials
Packaging Details :
EPE film + PE wrap + Processed wooden pallet
Price :
$0.1/s.q.m for quantities less than 100,000 s.q.m on FOB Shanghai basis
Material :
Polyethylene terephthalate
Color :
Natural
Transparency :
Clear
Thicknss :
23 μm
Thickness deviation :
Plus minus 2%
Sleeve ID :
6"
Winding length :
8000 meters
Winding direction :
Release side wound in
Description

This high cost-effective PET single-sided silicone release film has mainly been applied in the following areas:

1. Electronics:

In the manufacturing of electronic products, PET release film can be used to protect sensitive components like circuit boards and

semiconductor chips. It also provides easy-release characteristics during assembly and processing.

2. Labels and stickers:

This release film makes it easier to peel off labels and stickers without leaving behind adhesive residue or damaging the surface of the

adhered object.

3. Printing and packaging:

This PET release film can be used as a substrate for printing to better adhere ink or coating, and can be easily separated during

subsequent processing.

4. Automotive and aerospace:

This release film is used for automotive and aerospace applications, such as protecting components and sound/heat insulation.

5. Medical and health care:

In the manufacturing of medical equipment and packaging for healthcare products, PET release film provides a sterile environment and

prevents contamination.

These are just some common applications of PET release film, as specific application scenarios may differ based on performance and customer requirements.

Test Item Unit Standard index Test result Test Method
Measured Value μm M ± 2% 23.05 ASTM D-374
Tensile Strength MD Mpa ≥180 188 ASTM D-882
TD Mpa ≥200 224
Elongation @ Break MD % ≤200 133
TD % ≤200 123
Elasticity Modulus MD Mpa ≥3500 4773
TD Mpa ≥3500 4646
Thermal Shrinkage MD % ≤1.5 1.70 150℃/30min
TD % ≤0.5 -0.16
Haze % ≤5.0 5.23 ASTM D-1003
Light transmittance % ≥88 91.5 ASTM D-1003
Glossiness (45°) % ≥80 95.6 ASTM D-2457
Clarity % ≥90 92.6 ASTM D-1003
Friction Co-efficiency μs - ≤0.65 0.108 ASTM D-1894
μk - ≤0.50 0.102
Coating weight g/㎡ 0.075~0.2 0.182 FTM7
Release Force (after 20min.) g/25mm 5~15 12.269 FTM 1 (w/out briquette)
Subsequent adhesion rate % ≥88 GB/T 25256-2010
