Specifications
Brand Name :
HSF
Model Number :
50BSSNSi
Certification :
ISO, SGS, RoHS
Place of Origin :
China
MOQ :
30000 s.q.m.
Payment Terms :
T/T, L/C
Supply Ability :
30000 kg per week
Delivery Time :
within 45 days, depends on the reserve of raw materials
Packaging Details :
EPE film + PE wrap + Processed wooden pallet
Material :
Polyethylene terephthalate
Color :
Blue
Transparency :
Translucent
Thickness :
50 μm
Thickness deviation :
Plus minus 3 μm
Sleeve ID :
6"
Winding direction :
Release side wound in, or as per requirement
Winding length :
6000 meters or so
Description

50 μm blue PET non silicone coated release film for electronics, medical, automotive and printing etc.

The 50 micron blue PET non-silicone coated release film is commonly used in various application scenarios where a durable and visually distinctive release liner is required. The blue color adds a vibrant and visually appealing element to the applications. Here are some typical uses:

  1. Automotive Industry: This release film finds application in the automotive sector, particularly for protective purposes. It can be used as a release liner or protective layer during the manufacturing, assembly, or transportation of automotive components. The blue color can help with easy identification and differentiation of the release liner, as well as provide a visually appealing touch.

  2. Electronics and Electrical Applications: The 50-micron blue PET non-silicone coated release film is commonly employed in the electronics industry. It can serve as a protective layer for electronic components, such as circuit boards, displays, or sensitive devices. The blue color can aid in easy identification of the release liner and help differentiate between different components or layers during manufacturing processes.

  3. Medical and Healthcare Products: This release film is frequently used in the medical and healthcare sectors. It can be used as a release liner for various medical products, such as wound dressings, transdermal patches, or medical tapes. The blue color can help with easy identification and ensure proper application and removal of the medical products.

  4. Labeling and Packaging: The 50-micron blue PET non-silicone coated release film is commonly utilized for labeling and packaging applications. It can function as a release liner for labels, stickers, or adhesive-backed products. The blue color can be used for branding, labeling, or to provide a visually distinctive presentation for products in various industries.

  5. Arts and Crafts: This release film is popular in arts and crafts projects. It can be used as a backing or carrier for various artistic elements, such as adhesive-backed shapes, cut-outs, or embellishments. The blue color adds a vibrant and visually distinct element to the artwork, enhancing its aesthetic appeal.

Please note that the specific suitability of the 50-micron blue PET non-silicone coated release film for a particular application should be verified based on industry requirements, manufacturer guidelines, and customization options available.

Besides, the application of non-silicon release film is mainly based on two points:
1. It does not contain silicon, so there are no issues with silicon transfer contamination.
2. It is compatible with silicone and gel, and is cheaper than fluorine-coated film
(although the release effect is not as good as fluorine-coated film).

S/NTest ItemUnitStandardValueTest Method
1Thicknessμm50 ±2%49.72GB/T6672
2Color-Blue--
3Tensile StrengthMDMpa≥180187GB/T 1040.3
TDMpa≥190196
4Elasticity ModulusMDMpa/4144
TDMpa/4230
5Elongation @ break (%)MD%≤200148
TD%≤200139
6Thermal ShrinkageMD%≤1.50.96150℃/30min
TD%≤0.00.00200℃/10min
7Friction CoefficientF/M-US%≤0.650.5GB/T 10006
F/M-UK%≤0.500.3
8Haze%≤52.99GB/T2410
9Luminousness%≥8689.4GB/T2410
10Glossiness%≥100133GB/T8807
11Wetting TensionmN/m≥5058GB/T14216
12Release ForceInnergf/25mm3-54Final 10, 20min.
Outer10-1512
13Sub-sequent Adhesion RateInner%≥8590
Outer≥8592

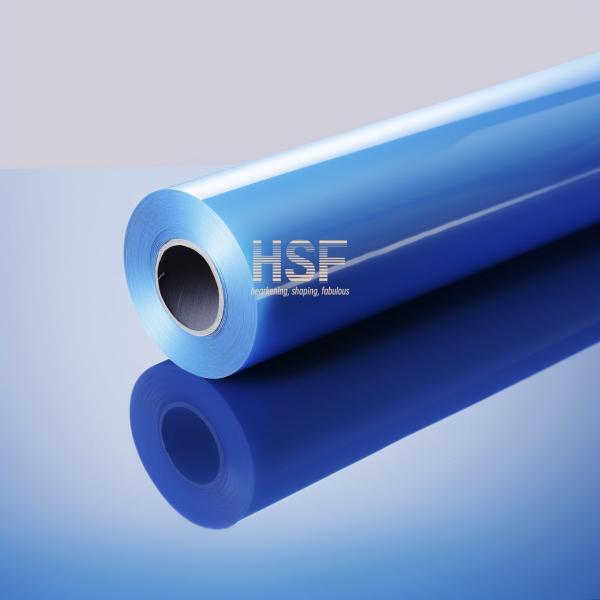

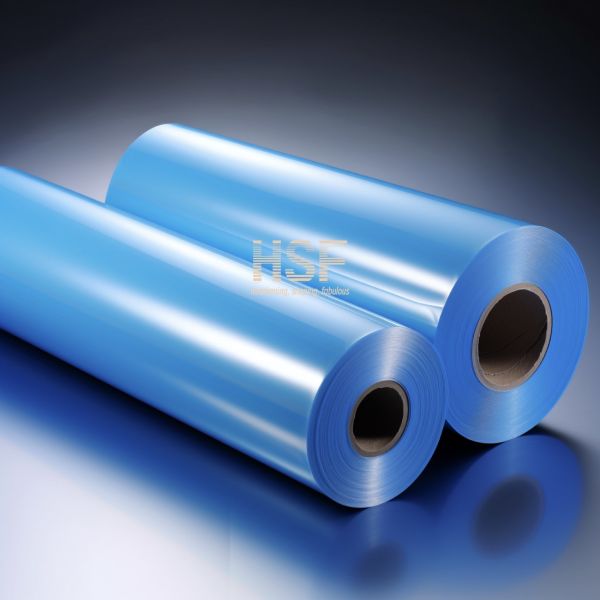

50 Micron PET Non Silicone Release Film Roll Used In Electrical Applications50 Micron PET Non Silicone Release Film Roll Used In Electrical Applications
