Specifications
Brand Name :
HSF
Model Number :
40ORHPE-S15
Certification :
ISO, SGS, RoHS
Place of Origin :
China
MOQ :
30000 s.q.m.
Payment Terms :
T/T, L/C
Supply Ability :
50000 kg per week
Delivery Time :
within 20 days
Packaging Details :
EPE film + PE wrap + Processed wooden pallet
Material :
High density polyethylene
Color :
Red
Transparency :
Opaque
Thickness :
40 μm
Thickness deviation :
Plus minus 3 μm
Width :
Up to 2000 mm
Winding length :
6000 meters or so, as per requirement
Sleeve ID :
3" or 6"
Description

HDPE silicone coated release film can be used for a wide range of applications including:

1. Adhesive tape printing:

The silicone coating on the film allows for easy release of adhesive tape during printing and slitting.

2. Label production:

The film is used as a release liner for the production of labels that need to be removed easily from their backing material.

3. Screen printing:

It can be used as a release liner for transferring pressure-sensitive screen-printed graphics onto rigid substrates.

4. Automotive industry:

The film is used to protect the surface of car parts during transportation and painting.

5. Electronics industry:

HDPE silicone coated release film is used as a protective layer during the production of electronic components such as printed circuit boards.

The release performance of HDPE silicone coated release film is determined by various factors including the temperature, pressure,

and type of adhesive used. In real circumstances, this film provides a consistent release performance due to its precise silicone coating

which offers strong adhesion to the film. Actual application scenarios for this film include the production of labels for food packaging,

protective covers for electronic components, and as a transfer tape for graphics in the screen printing industry.

It is also used in the automotive industry for protecting car parts during transportation and painting.

Besides, HDPE silicone coated release films are widely used in the tape industry.

These films are used as release liners for adhesive tapes, such as pressure-sensitive adhesive tapes and double-sided tapes.

They are preferred due to their high release performance, durability, and resistance to temperature and chemicals.

The tape industry includes various fields such as packaging tapes, masking tapes, electrical tapes, medical tapes, and industrial tapes.

The release liner plays a crucial role in the effectiveness of the tape. HDPE silicone coated release film offers a reliable and consistent

release performance which is important in the production of high-quality tapes.

Apart from the tape industry, HDPE silicone coated release films are also used in other applications such as label production, screen printing, electronics industry, and the automotive industry. However, the tape industry remains the largest user of HDPE silicone coated release films.

1 Appearance No air bubbles / stains / breakage / impurities Measured
2 Size Width (mm) 960 ± 5 962
Thickness (mm) 0.040 ± 0.003 0.042
3 Color White Colorimeter △E< 3 ok
4 Max. Tension (N / 50mm) TD ≥ 30 44
MD ≥ 30 52
5 Elongation @ break (%) TD ≥ 150 594
MD ≥ 200 479
6 Surface Tension (Corona treatment) Dyne Value ≥42 dyne 46
7 Release Force (gf/25mm 20min.Finat 10) 10-15 12
8 Subsequent Adhesion (%) ≥ 85 86
9 Winding direction Customized -
10 Splice No. ≤1 -

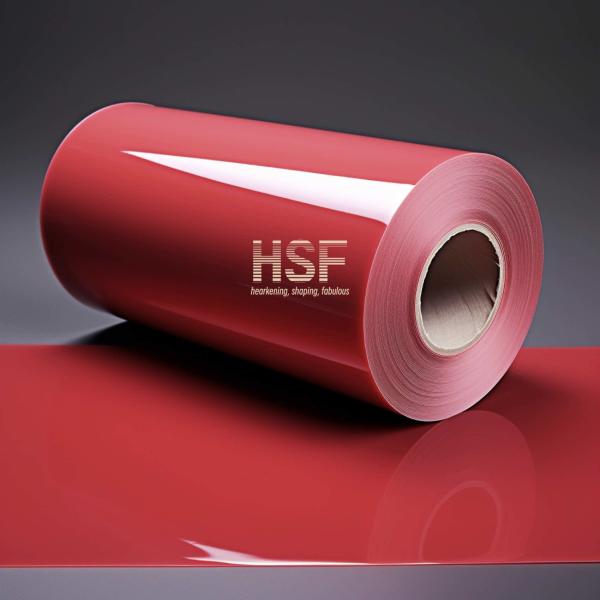

40 μm Opaque red high density polyethylene single side release film for food, medical can industrial packaging40 μm Opaque red high density polyethylene single side release film for food, medical can industrial packaging
