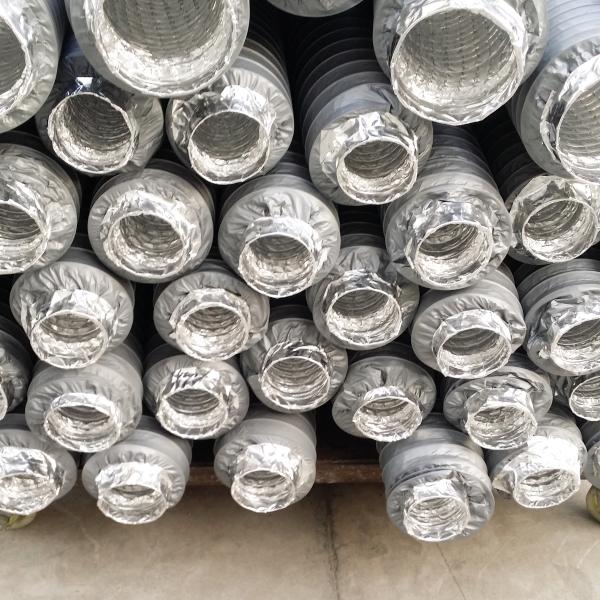

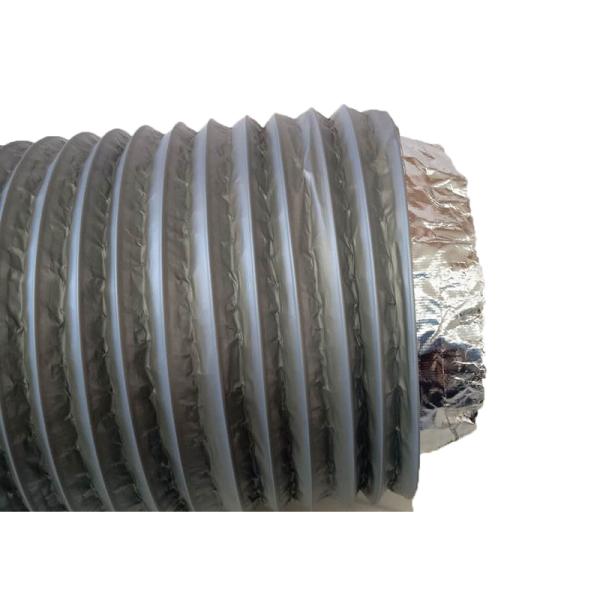

Fiber Thickness 25mm And 50mm Air Duct Silencer
Fiber Thickness 25mm And 50mm Air Duct Silencer
Fiber Thickness 25mm And 50mm Air Duct Silencer
Fiber Thickness 25mm And 50mm Air Duct Silencer
Fiber Thickness 25mm And 50mm Air Duct Silencer
Fiber Thickness 25mm And 50mm Air Duct Silencer
Fiber Thickness 25mm And 50mm Air Duct Silencer
Fiber Thickness 25mm And 50mm Air Duct Silencer
Specifications
Brand Name :
no
Model Number :
4inch 5inch 6inch 8inch 10inch 12inch
Place of Origin :
China
MOQ :
1pc
Price :
3-10usd
Supply Ability :
100000pcs
Delivery Time :
15-30days
Description

Fiber thickness 25mm technical parameters of Duct Silencer

Product name: Duct Silencer

Material: The outer sleeve is made of combi PVC pipe

The sound-absorbing material adopts environmentally-friendly fine sound-absorbing material, which greatly improves the sound-absorbing performance.

The inner tube adopts a thickened aluminum foil tube with holes, which is easy to bend and not easy to deform.

The connection socket adopts aluminum foil fiber cloth tape inside and outside-body sealing treatment, good sealing performance and convenient installation.

Color: Gray and black

Use length: 30cm-2m

Temperature range: -30*C/+ 140°C

Flame retardant performance: Good

Fiber Thickness 25mm And 50mm Air Duct Silencer

Fiber thickness 50mm technical parameters of Duct Silencer

For fresh air system, the composite duct silencer is composed of a four-layer structure with perforated thick inner hose insulation cotton and PVC aluminum foil composite silent pipe sleeve combination

Application places:

Hotels, office buildings, hospitals, opera houses and other occasions that require high noise control. Used as an air-conditioning ventilation system.

Antibacterial rate: Bacillus. Cocci>99.99%

Temperature range: -30°C~+140°C,

Maximum air=air flow rate: -30M/S

Maximum working pressure: 2000pa

Bending radius: 0.54*D+25mm

Glass fiber layer density: 32kg/m2

Combustion performance: Class B1 "Flame Resistant"

Fiber Thickness 25mm And 50mm Air Duct Silencer
