700mm Wire Mesh Hydraulic Filter Pleating Machine 6 - 60mm Pleating Height
700mm Wire Mesh Hydraulic Filter Pleating Machine 6 - 60mm Pleating Height
700mm Wire Mesh Hydraulic Filter Pleating Machine 6 - 60mm Pleating Height
700mm Wire Mesh Hydraulic Filter Pleating Machine 6 - 60mm Pleating Height
Specifications
Brand Name :
MOER
Model Number :
JSMRKS6-700
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiate
Payment Terms :
L/C,T/T
Delivery Time :
40-45 days
Packaging Details :
plywood cases
Control System :
PLC
Filter Type :
Hydraulic Oil Filter
Voltage :
220V/380V
Filter Efficiency :
99.97%
Power Source :
Electric
Material :
Wire Mesh
Frequency :
50Hz
Mixing Rate :
Customized
Description

700mm Wire Mesh Hydraulic Filter Pleating Machine

Technical Parameters:

Material Rack

3 layers

Pleating Height

6-60mm ( automatically adjustable)

Speed:

380pleats/min

Machine power:

4kw

Working air pressure:

0.6MPa

Power supply:

380V/50Hz

M/C weight:

650kg

M/C dimension:

1800*1200*1700mm

Features:

1.Wire Mesh Hydraulic Filter Pleating Machine adopts upper and lower knife alternatively perform folding, from the knife automatic adjustment by computer, can reach different fold higher requirements, accurate size.

2.Heating plate temperature control system for hydraulic filter pleating, the temperature distribution is more uniform.

3.In the paper folding machine automatic dotting counter, folding processing and preheating and forming etc.
4.Stainless Steel Hydraulic Filter Pleating Machine can also be folded all the different rules of fold change.
5.Folding knife of this machine can change any angle, ensure the folding does not damage any kind of filter material.

6.The pleating knifes movements are controlled by servo motors.

7.The pleat height, opening angle of pleating blades and closing gap can be parametric set. For a variety of different materials and thickness, single-layer or multi-layer filter.

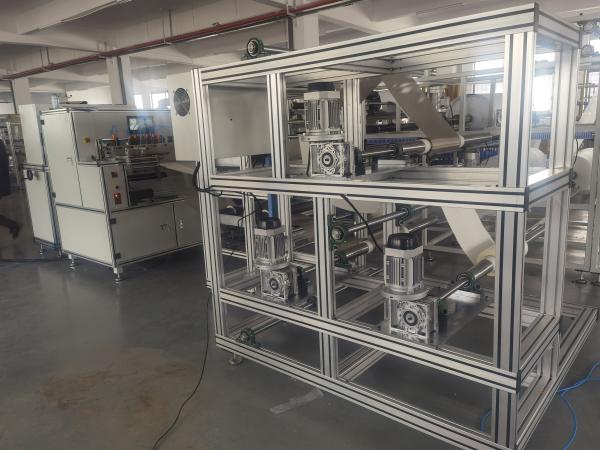

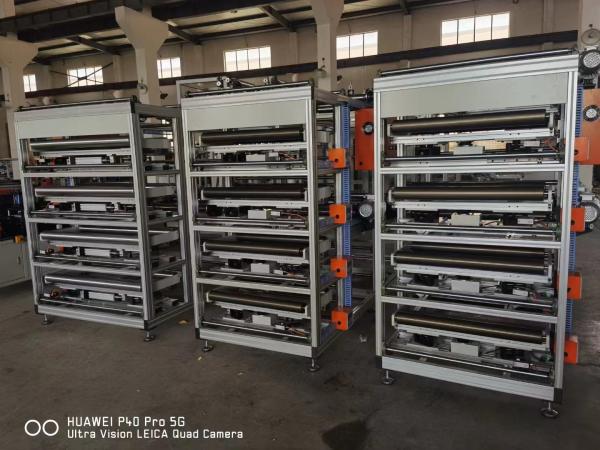

8.Select the multi-layer unwinder with the corresponding width according to the width of the pleating machine.
The number of winding layers can be configured arbitrarily according to the requirements. Generally, the commonly used combinations are 3, 5, 6, 9, and 10 layers.

9.Operation is simple and fast, high production efficiency, folded surface heating effect well, equipment noise and so on. Depending on your needs, produce different types of pleats, such as: regular, M, W Type reciprocating variant, descending the gradient type.
