Single Use IV Filter With Hydrophilic PES 0.2μm and Hydrophobic PTFE 0.2μm Non-sterile
Single Use IV Filter With Hydrophilic PES 0.2μm and Hydrophobic PTFE 0.2μm Non-sterile
Single Use IV Filter With Hydrophilic PES 0.2μm and Hydrophobic PTFE 0.2μm Non-sterile
Single Use IV Filter With Hydrophilic PES 0.2μm and Hydrophobic PTFE 0.2μm Non-sterile
Single Use IV Filter With Hydrophilic PES 0.2μm and Hydrophobic PTFE 0.2μm Non-sterile
Single Use IV Filter With Hydrophilic PES 0.2μm and Hydrophobic PTFE 0.2μm Non-sterile
Specifications
Brand Name :
OEM avaliable
Model Number :
XN-GLOL-X
Certification :
ISO9001
Place of Origin :
China
MOQ :
10000PCS
Price :
$0.50-$0.70 per piece
Payment Terms :
L/C, T/T
Delivery Time :
30 days
Packaging Details :
250pcs per pack with label , 8packs per carton or customizable
Product Name :
Single Use IV Filter With Hydrophilic PES 0.2μm and Hydrophobic PTFE 0.2μm
Pore Size :
0.22μm
Filter Media :
PES & PTFE
Filter Housing :
ABS
Stop Liquid Height :
≥1.5Meter
Inlet/Outlet Connections :
Infusion tube
Assembly Mode :
Heat melting or ultrasonic welding
Sterilization :
Non-sterile/EOS
Type :
X, disposable
Advantage :
Automatic Liquid stop
Color :
Natural, can make Lightproof Orange color
Description

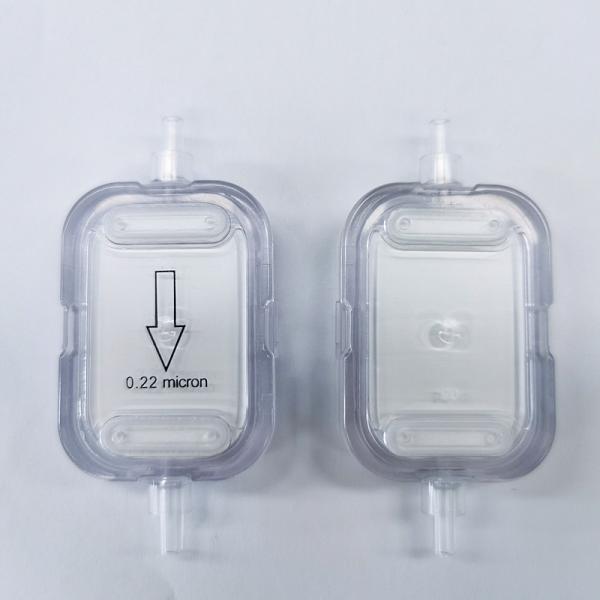

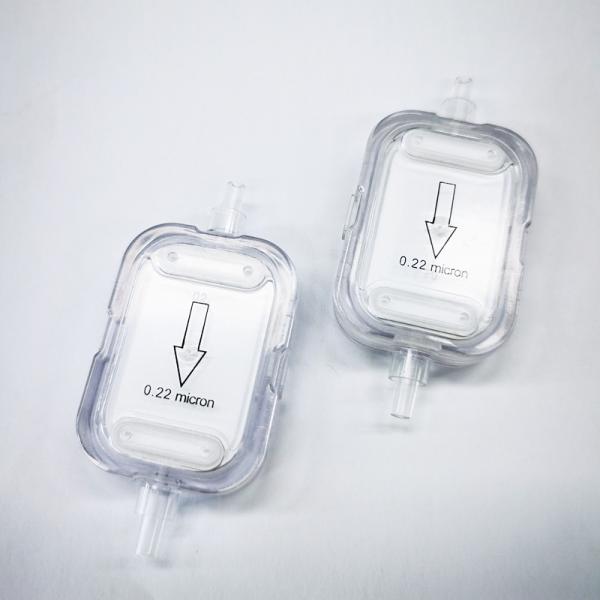

Single Use IV Filter With Hydrophilic PES 0.22μm and Hydrophobic PTFE 0.2μm Non-sterile

The single in-line IV filter is designed foer use in filtration of intravenous for removal of particles larger than 0.2μm from liquids to ensure the purity and safety of a drug or biological sample. It‘s function is to filter out those particles that may have a negative impact on the final product, thus ensuring that the resulting liquid medicine or biological sample is of high quality and purity.

We XINNA 's single use IV filters are typically made of high-quality materials : double layers of PES membrane for drug liquid and PTFE membrane for air venting . These materials have good chemical compatibility and can withstand the corrosion of various chemicals and solvents. In addition, these materials also have high temperature resistance properties, which can maintain stable performance in high temperature environments.

Features :

  • Easy to connect to IV tubing sets with standard luer inlet and outlet slip
  • Precision filtration of fine particles
  • High retention efficiency
  • Automatic air venting
  • Automatic air-stop
  • Reduce risk of phlebitis and infusion pain

Characteristics:

Dimensions: 60*29.5*0.95mm(inlet/outlet connector included
Weight: 8.2-8.8g
Filtration area: 10.5CM2
Venting area: 1.72CM2
Venting air flow rate: 25ml/min@5kpa
Max burst pressure: 360kpa(52.5psi)
Operating Temp: 5-40℃
Storage Temp: 0-50℃
Min water bubble point: 0.2μm≥360kpa
Min water flow rate: 0.2μm≥200ml/10min@10kpa
Sterilization: Ethlene Oxide(Max 60℃)

Applications:

  • Medical infusion sets
  • Biomedical and Pharmaceutical area
  • Laboratory applications

Single Use IV Filter With Hydrophilic PES 0.2μm and Hydrophobic PTFE 0.2μm Non-sterile
